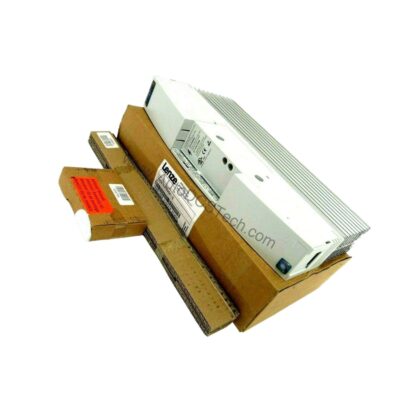

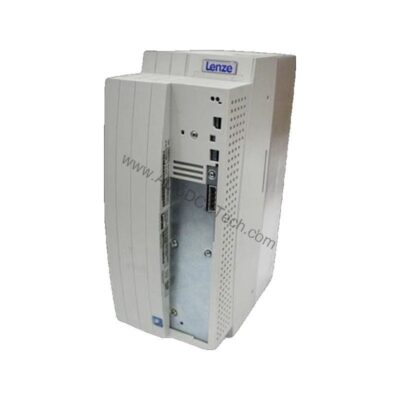

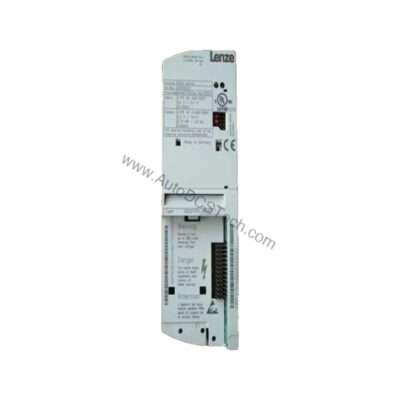

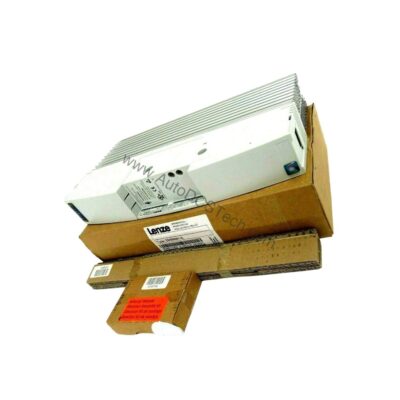

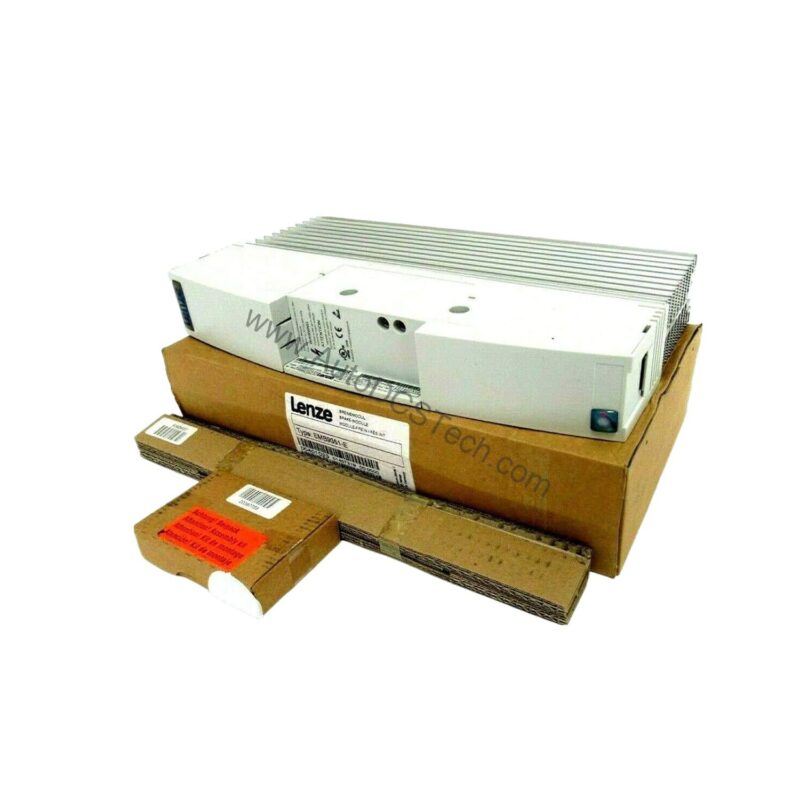

EMB9351-E: Inverter Braking Module
The EMB9351-E is the Inverter Braking Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 2.6 kg.
This configuration's inverter braking module is the attribute that drives the replacement decision. A variable-speed or soft-start device is specified by the motor it must control and the starting or speed regime it must deliver. inverter braking module sets the current or power rating, the control method and the enclosure or network option — the things that decide whether the device starts the load without tripping and integrates with the existing control. Verifying 2.6 kg against the motor nameplate and the control architecture prevents a drive that fits the panel but cannot carry the load.
| Feature | Specification |
|---|---|
| Manufacturer | Lenze |
| Brand | Lenze |
| Part Number | EMB9351-E |
| Supply voltage VN | 270 ... 775 V DC |
| Threshold Vz | 375, 725, 765 V DC |
| Peak current for 60 s | 16 A DC |
| Peak braking power | 3 kW (375V), 11 kW (725V), 12 kW (765V) |
| Continuous braking power | 100 W |
| Minimum brake resistance | 47 Ω internal |
| Max energy | 50 kWs |
| Power reduction | 2%/K (40-50°C), 5%/1000m (1000-4000m) |
| Weight | 2.6 kg |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| lenze-emb9351-c-brake-module-for-series-9300-cold-plate-type | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | EMB9351-E |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
