Product Overview

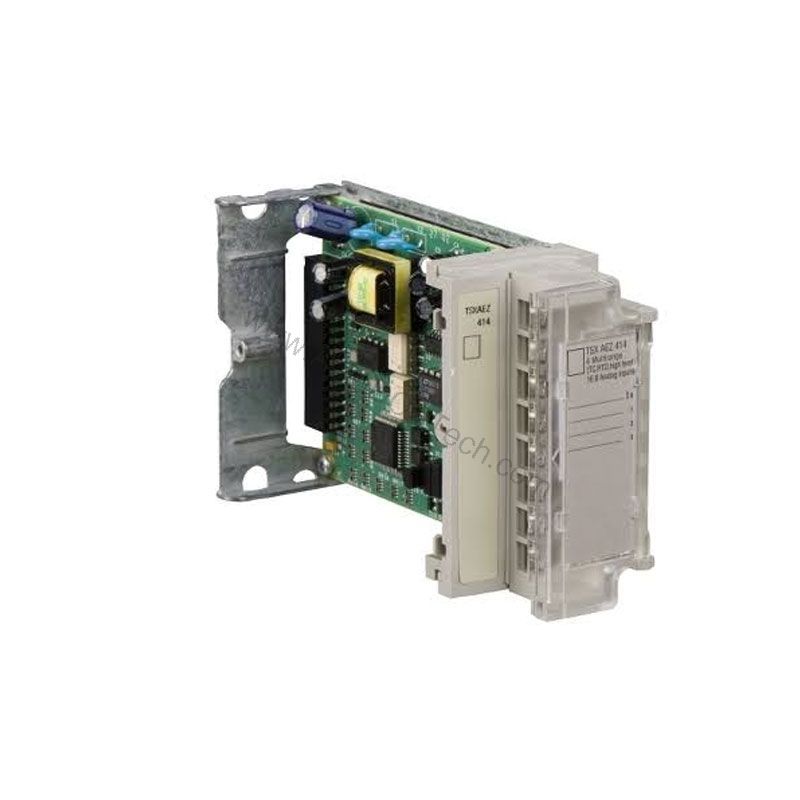

When you need precise temperature measurement in your industrial process, the Schneider TSXAEZ414 TSX Micro analog input module delivers reliable performance. This module integrates seamlessly into TSX Micro automation systems, providing four channels for thermocouples, temperature probes, or high-level analog signals. Its 16-bit analog-to-digital conversion ensures accurate data acquisition for critical control loops.
Technical Specifications
Key parameters define the TSXAEZ414's capabilities. The module features four input channels and uses 16-bit analog/digital conversion for high resolution. Acquisition period is 520 ms, balancing speed with noise rejection. Input impedance is 10 Ohm, minimizing signal loading. Current consumption is 85 mA, and isolation voltage is 500 V AC for electrical safety. Temperature drift is rated at 0.01 %/10 °C for the current circuit and 0.08 %/10 °C for the voltage circuit. The module weighs 0.21 kg.
Industry Applications
Manufacturing facilities use the TSXAEZ414 for temperature monitoring in furnaces, ovens, and chemical reactors. Connecting thermocouples directly to the module eliminates external signal conditioners. In HVAC systems, it reads temperature probes for zone control. The 16-bit resolution supports precise regulation, reducing energy waste and improving product quality.
Installation & Setup Guidance
Mount the TSXAEZ414 securely in your TSX Micro rack. Connect thermocouple or temperature probe wires to the appropriate terminals, observing polarity. Use shielded twisted-pair cable for long runs to minimize electrical noise. Configure the module's acquisition period and input type via your PLC programming software. Verify isolation voltage ratings match your system's requirements.
Maintenance & Reliability
Inspect the module periodically for loose connections or signs of overheating. Keep the enclosure clean and free of dust. The low temperature drift ensures stable readings over time, reducing recalibration frequency. Following manufacturer guidelines for periodic testing extends service life and prevents unexpected downtime.
Compatibility & Integration
The TSXAEZ414 integrates with Schneider TSX Micro programmable logic controllers. It accepts thermocouples, temperature probes, and high-level analog signals. Use standard analog input wiring practices. The module communicates via the TSX Micro backplane, requiring no additional interface hardware.
Selection Guide & Purchasing Advice
Before ordering, verify your PLC system uses the TSX Micro series. Confirm the number of analog input channels needed—the TSXAEZ414 offers four. Check that your sensor types match the module's input types: thermocouples, temperature probes, or high-level signals. SpareTechPLC stocks this module and can advise on availability and compatible accessories.
Frequently Asked Questions
Q: What types of sensors can I connect to the TSXAEZ414?
A: The module accepts thermocouples, temperature probes, and high-level analog signals.
Q: How many channels does the TSXAEZ414 have?
A: It has four analog input channels.
Q: What is the acquisition period of the TSXAEZ414?
A: The acquisition period is 520 ms.
Q: What is the isolation voltage rating?
A: Isolation voltage is 500 V AC.
Q: Does the TSXAEZ414 support 16-bit conversion?
A: Yes, it uses 16-bit analog/digital conversion.
