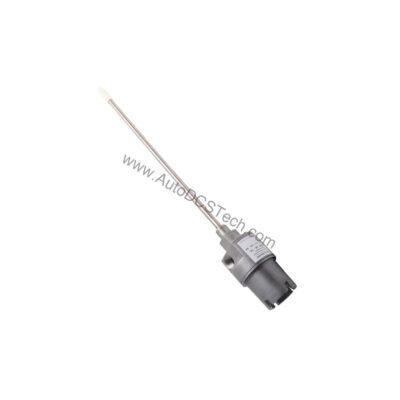

Bently Nevada 21000-28-05-20-018-04-02 Proximity Probe Housing Assembly

Technical Specifications Breakdown

Key parameters for the 21000-28-05-20-018-04-02 are listed below for quick reference:

Industry Applications for the Bently Nevada 21000 Assembly

This housing is engineered for externally mounted proximity probes in accordance with API 670 Standard. Typical applications include:

• Steam Turbines and Compressors: The 21000 assembly provides a stable, sealed mounting point for shaft vibration and position monitoring in high-temperature, potentially explosive atmospheres.
• Pumps and Fans: In Class I Division 1 and 2 areas (Groups C, D, E, F, G), this housing ensures the probe remains isolated from process contaminants while maintaining intrinsic safety.
• Refineries and Chemical Plants: The CSA Type 4 enclosure rating and explosion-proof certification make it suitable for outdoor and washdown environments where moisture and corrosive agents are present.

Installation and Setup Guidance

When installing the 21000-28-05-20-018-04-02, follow these engineer-level best practices:

• Mounting: Use the 3/4-14 NPT mounting thread (option 02) to secure the housing to a rigid machine casing. Ensure the standoff adapter (2 in) provides adequate clearance for the probe tip.
• Probe Insertion: The 1.8-inch probe penetration (018) must be verified against the target surface gap. Use a feeler gauge to set the initial air gap per the 3300 XL probe specifications.
• Conduit Connection: The single 3/4-14 NPT plug (option 04) should be sealed with approved thread sealant to maintain the explosion-proof integrity. For conduit runs, use appropriately rated fittings.
• Cable Routing: The 0.5 m probe cable is pre-terminated. Route it away from high-voltage lines and sharp edges to avoid abrasion or induced noise.

Maintenance and Reliability

Periodic inspection of the housing assembly is recommended to ensure long-term reliability:

• Visual Check: Examine the dome cover and O-rings for signs of corrosion or damage. Replace if any cracking or deformation is observed.
• Seal Integrity: Verify that all conduit entries and the standoff adapter are tight. Loose fittings can compromise the explosion-proof rating.
• Environmental Limits: The assembly is rated T5 @ Ta = -50°C to +40°C and T4 @ Ta = -50°C to +80°C. Ensure ambient temperature stays within these ranges to maintain certification.

Robust Protection for Critical Vibration Monitoring

In rotating machinery monitoring, the housing assembly is as vital as the probe itself. The Bently Nevada 21000-28-05-20-018-04-02 provides a sealed, explosion-proof enclosure for a 3300 XL 8 mm proximity probe, ensuring reliable operation in harsh industrial environments. This assembly combines a lightweight aluminum body with a 304 stainless steel sleeve for corrosion resistance and structural integrity.

Compatibility and Integration

The 21000 housing is designed specifically for Bently Nevada 3300 XL 8 mm proximity probes with selectable hazardous area approvals. The assembly is fully compliant with API 670 for externally mounted housings.

Selection Guide and Purchasing Advice

When selecting a replacement or new housing, verify your existing probe model and required cable length. For other lengths or fitting options, consult the full 21000 series ordering guide.

AutoDCSTech stocks this Bently Nevada assembly as new and original in factory packing, backed by a 12-month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
