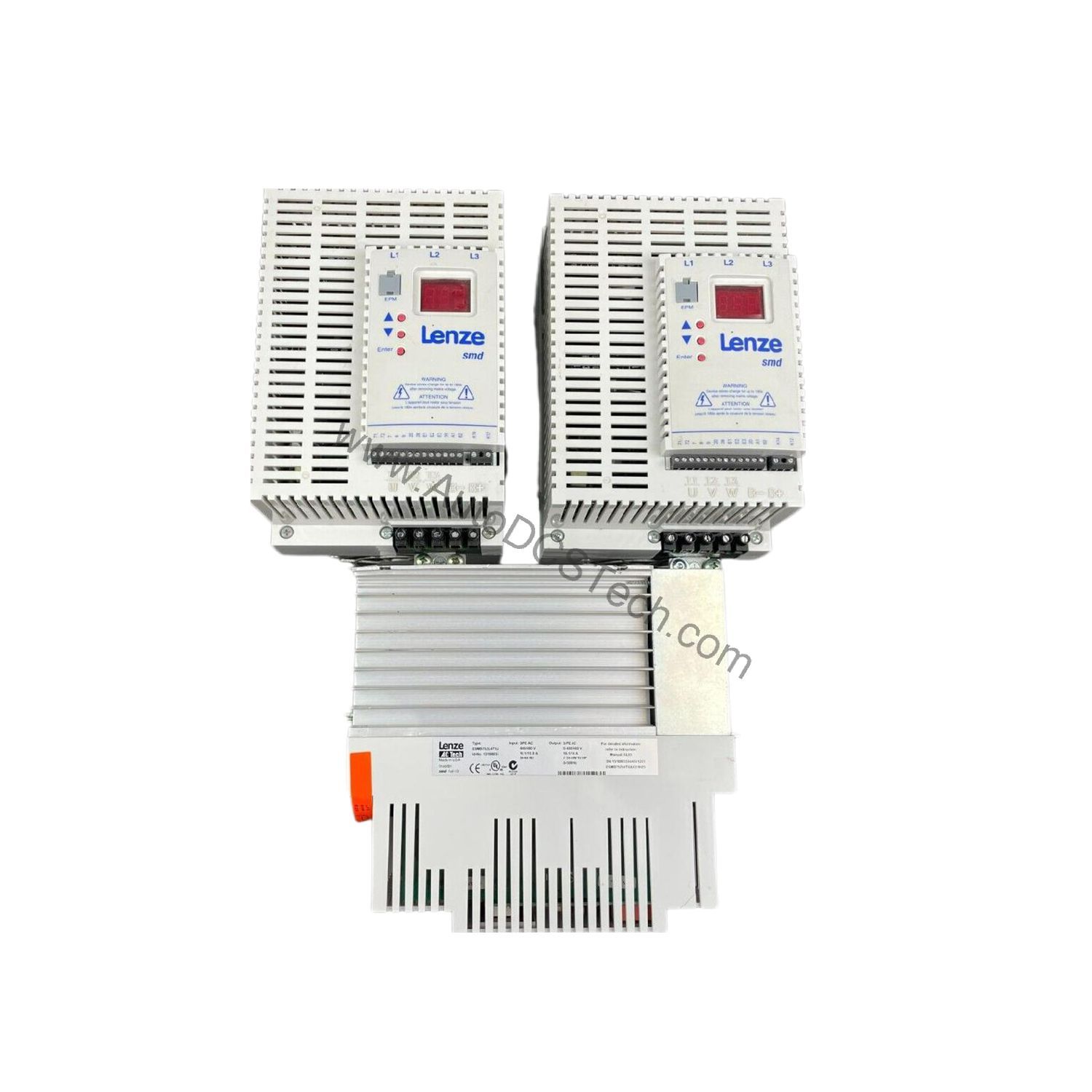

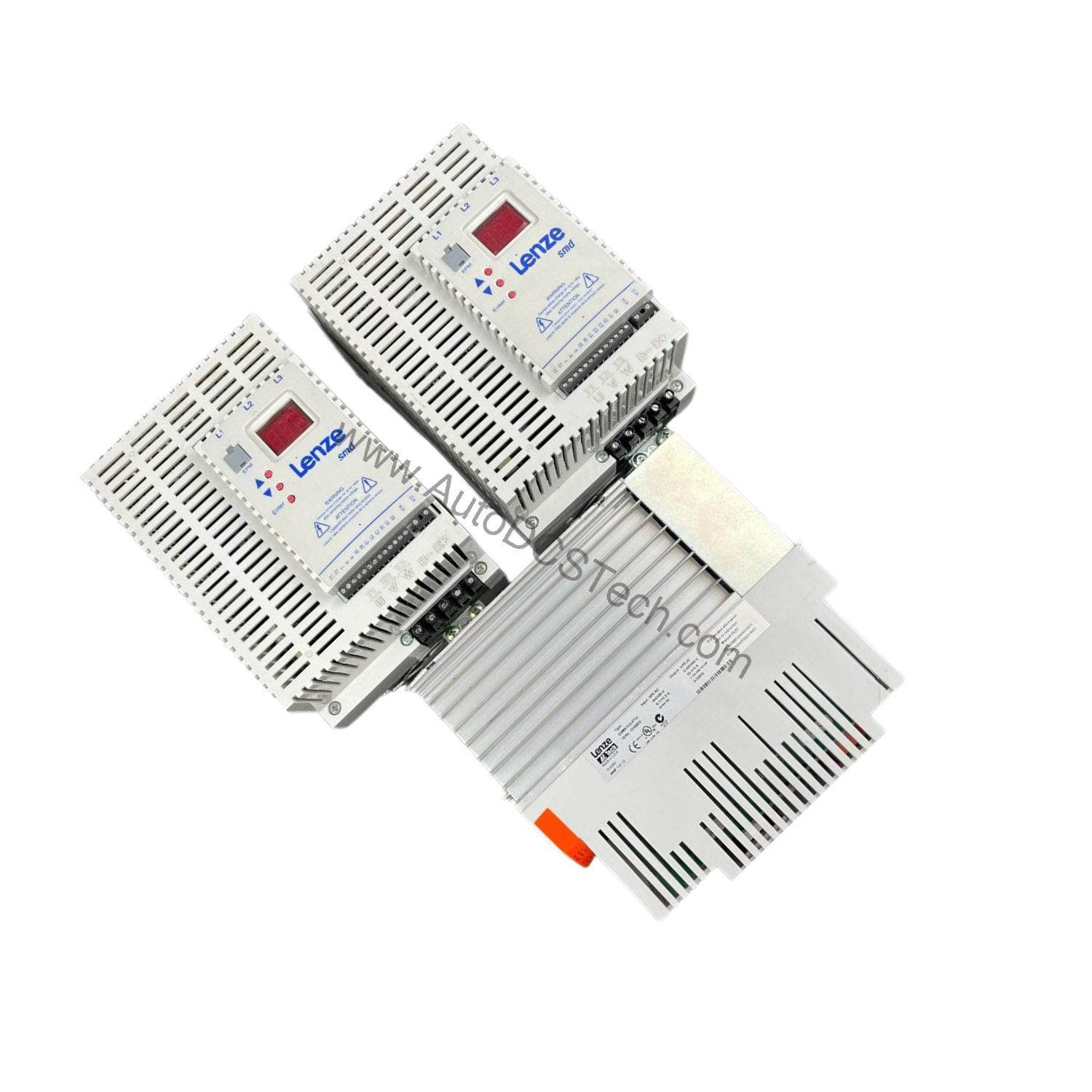

Lenze ESMD752L4TXA Frequency Inverter 7.5 kW

Technical Specifications Breakdown

Key parameters for the ESMD752L4TXA are listed below for quick reference:

Reliable Motor Control for Demanding Applications

When production lines depend on precise speed regulation, the Lenze ESMD752L4TXA frequency inverter delivers consistent performance. This 7.5 kW drive is engineered for industrial environments where uptime and accuracy matter. Whether you are running conveyors, pumps, or fans, this inverter helps maintain process stability while reducing mechanical stress on your motors.

Designed for Industrial Applications

This frequency inverter suits a wide range of motor control tasks. In material handling, it provides smooth acceleration and deceleration, reducing wear on belts and gears. In pumping systems, it maintains consistent flow while cutting energy consumption. The wide output frequency range of 0 to 500 Hz makes it flexible for both standard and high-speed motor applications. With a robust IP20 enclosure, it is suitable for installation in control cabinets within clean industrial settings.

Installation and Setup Guidance

Proper installation ensures reliable operation. Mount the inverter in a well-ventilated cabinet to keep within the operating temperature range of 0 to +55 °C. If ambient temperatures exceed +40 °C, apply a current derating of 2.5 % per °C. For installations above 1000 m above sea level, derate the output current by 5 % per 1000 m. Keep motor cable lengths within the specified limits—50 m for shielded cables and 100 m for unshielded—to avoid signal degradation. Ensure the input voltage phase imbalance remains below 2% to prevent overheating of the drive components.

Maintenance and Reliability

Regular inspection helps extend the life of your inverter. Check cooling fans and air filters for dust buildup, as restricted airflow can cause thermal trips. Verify that all power terminals are tight to avoid loose connections. Monitor the ambient humidity to stay below 95% non-condensing. The drive is designed to withstand vibration up to 0.7 g, but mounting on a stable surface reduces stress on internal components. For safety-rated systems, always follow your facility's maintenance procedures and consult the manufacturer's manual before any internal access.

Compatibility and Integration

The Lenze ESMD752L4TXA is a standalone frequency inverter, making it easy to integrate into existing motor control systems. It accepts standard three-phase supply voltages of 400/480 V and provides adjustable output frequency to match your motor's requirements. The inverter's control terminals allow connection to external start/stop and speed reference signals, simplifying retrofit projects. Always verify that your motor's rated current does not exceed the inverter's output current rating of 16.1 A at 400 V or 14 A at 480 V.

Purchasing Advice

When selecting a replacement or new inverter, confirm your system's voltage and current requirements. The ESMD752L4TXA is a reliable choice for many industrial applications. At AutoDCSTech, we stock genuine Lenze parts and offer competitive pricing. Contact our team to check availability and lead times. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting Common Issues

If the inverter trips on overcurrent, check for short circuits in the motor cable or a locked rotor. If the drive overheats, inspect the cooling path and ambient temperature. If the output frequency is unstable, verify the input voltage balance and control signal integrity. For persistent faults, consult the Lenze manual or contact AutoDCSTech for expert assistance.
