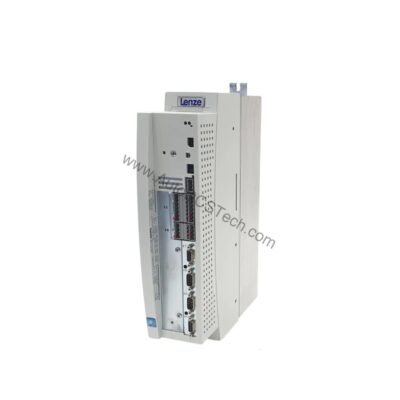

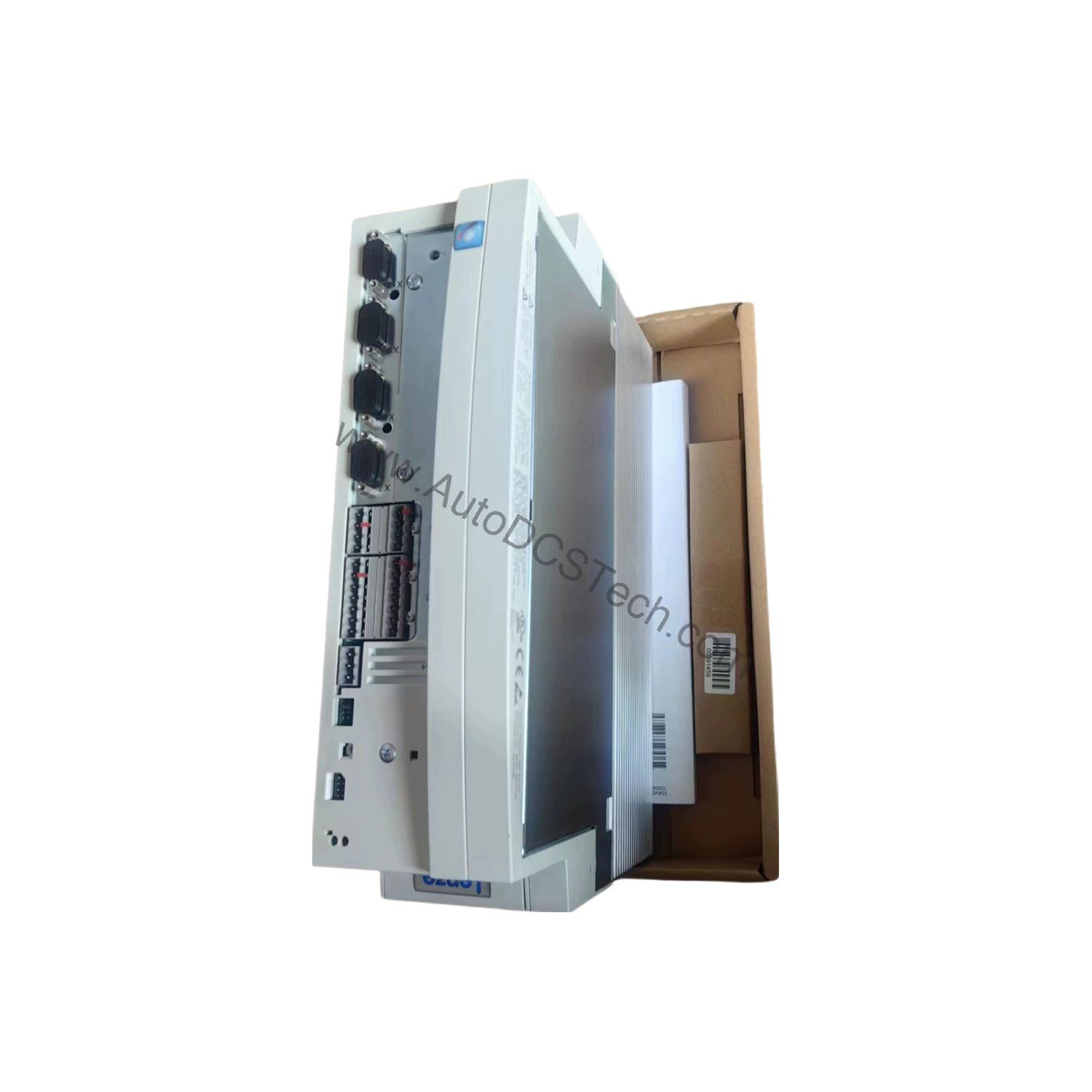

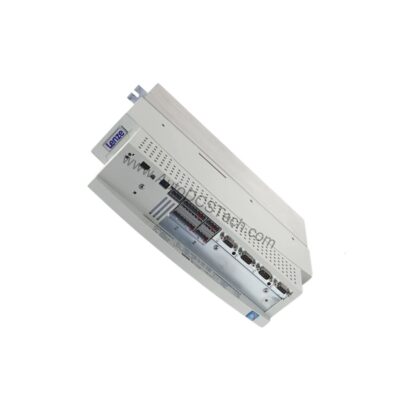

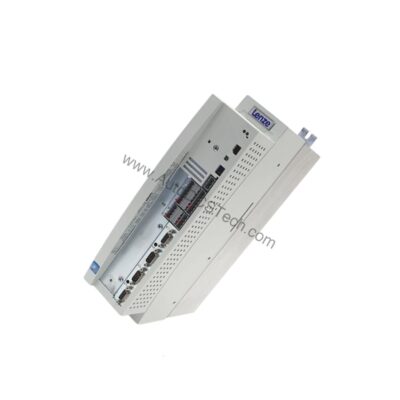

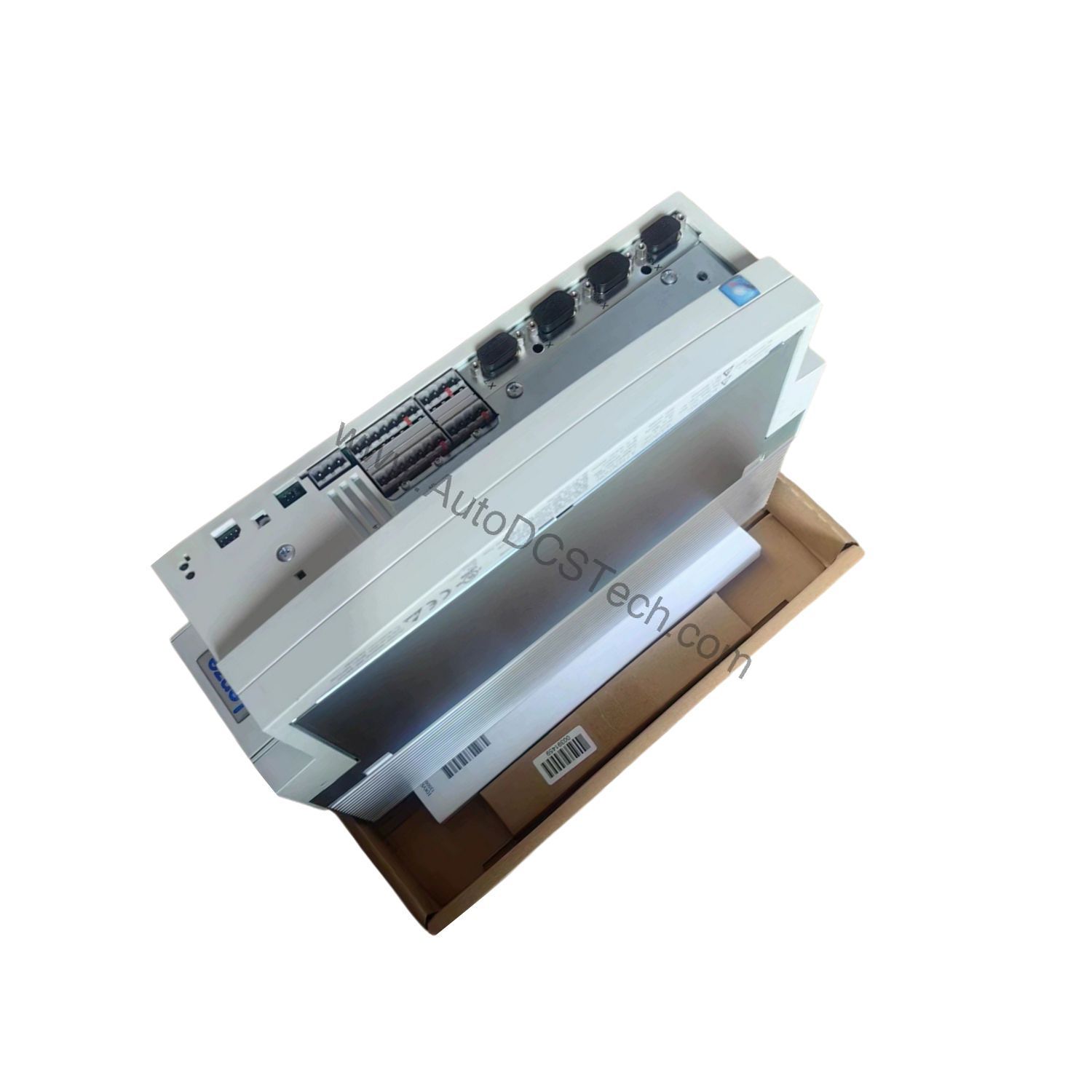

Lenze EVS9321-CPV003 Servo Position Controller | Series 9300

Technical Specifications Breakdown

Key parameters for the EVS9321-CPV003 are listed below for quick reference:

Industry Applications

Common uses include:

• Packaging Machinery: The controller ensures precise registration and cut-to-length accuracy, improving product quality and reducing waste.
• Material Handling: With its reliable performance at 0.37 kW, it can drive conveyors and positioning systems, maintaining smooth operation even under varying loads.
• Textile Machines: The ability to maintain consistent tension and synchronize multiple axes is critical, and this controller delivers the necessary responsiveness.

Installation & Setup Guidance

When installing the EVS9321-CPV003, follow these best practices to ensure optimal performance:

• Mounting: Use the panel-mounted design with 'Cold Plate' technology. Ensure the mounting surface is clean and flat to maximize thermal transfer. The IP20 protection level means the unit should be installed in a suitable enclosure to guard against dust and accidental contact.
• Wiring: Always verify that the AC mains voltage and frequency match the nameplate values (320–528V AC, 45–65 Hz). Use appropriately rated fuses and disconnect devices. For DC mains connections, confirm the voltage is within the 450–740V range.
• Grounding: Properly ground the unit to prevent electrical noise and ensure safety. Follow local electrical codes and the manufacturer's wiring diagram.
• Configuration: The hardware revision must be version 6x or newer. Use the appropriate Lenze configuration software or keypad to set parameters such as motor type, feedback, and control mode. Do not operate the unit beyond its rated specifications.

Maintenance & Reliability

The EVS9321-CPV003 is designed for long service life, but regular maintenance is essential to prevent unexpected failures. We recommend:

• Periodic Inspection: Check for loose connections, signs of overheating, or accumulation of dust. Clean the unit with a dry, lint-free cloth. Do not use solvents or compressed air that could damage components.
• Environmental Control: The storage temperature range is −25°C to +55°C. Ensure the operating environment stays within these limits and that the enclosure provides adequate ventilation.
• Thermal Management: The 'Cold Plate' technology relies on good contact with the mounting surface. Inspect the thermal interface periodically to ensure it has not degraded.

Precision Motion Control with the Lenze EVS9321-CPV003

This unit provides a rated power of 0.37 kW at both 400V and 480V operations, making it a versatile choice for a range of servo applications. Its compact, panel-mounted design with 'Cold Plate' technology ensures efficient heat dissipation, contributing to long-term stability in demanding industrial environments.

Compatibility & Integration

The EVS9321-CPV003 is part of the Lenze Series 9300, a well-established platform. It is designed to work with Lenze servo motors and feedback devices. For seamless integration, ensure that the controller's firmware and hardware revision are compatible with your existing system. If you are upgrading from an older controller, verify that the motor and feedback cables are compatible. For detailed integration guidance, consult the Lenze documentation or contact our technical support.

Selection Guide & Purchasing Advice

When selecting a servo position controller, consider the power requirements, environmental conditions, and control features. The EVS9321-CPV003 offers a balanced combination of performance and reliability for applications up to 0.37 kW. At AutoDCSTech, we stock this controller and can provide expert advice on compatibility and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team is ready to assist you with your automation needs.
