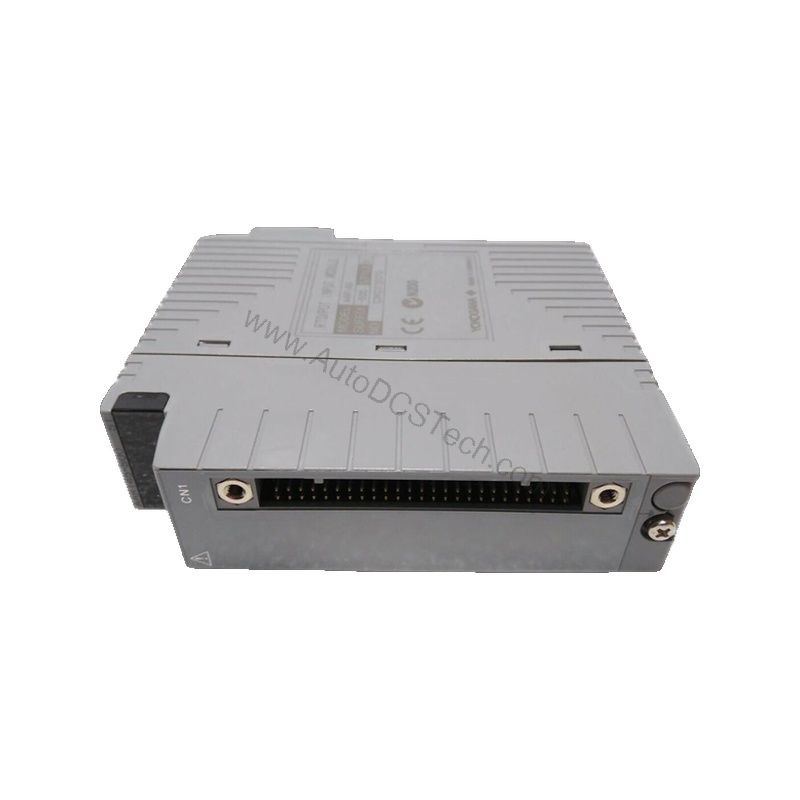

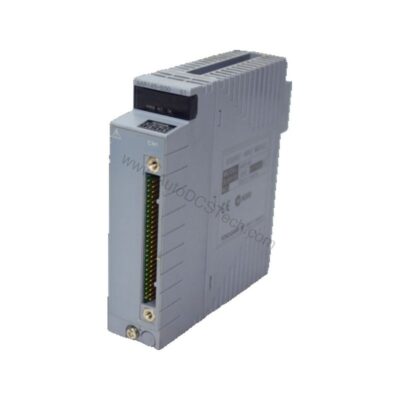

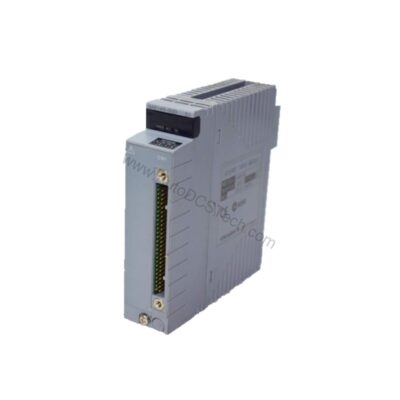

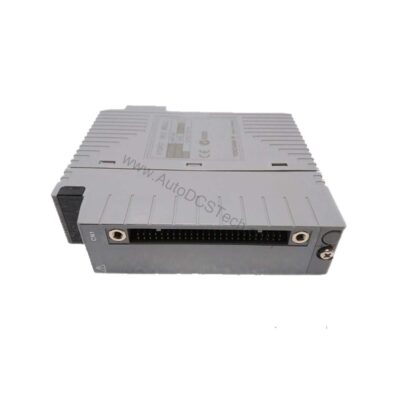

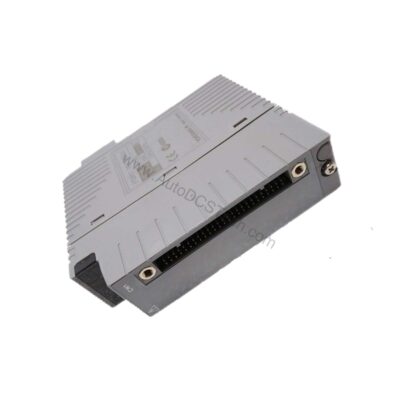

AAR145-S00: Yokogawa 16 Channel RTD/POT Input Module
The AAR145-S00 is the Yokogawa 16 Channel RTD/POT Input Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 16 isolated.
The reason to specify this exact variant is yokogawa 16 channel rtd/pot input module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. yokogawa 16 channel rtd/pot input module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 16 isolated against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | AAR145-S00 |
| Input Type | RTD (JIS Pt100, IEC751 Pt100) or POT (100 Ω to 10 kΩ) |
| Channels | 16 isolated |
| Input Voltage Tolerance | ±5 V |
| Withstanding Voltage | 500 V AC (input-system), 200 V AC (between channels) |
| Accuracy | RTD ±150 mΩ, POT ±0.2% FS |
| Measurement Current | 1 mA (RTD) |
| Data Update Period | 1 s |
| Burn-out Detection | Available, detection time 60 s |
| Temperature Drift | RTD ±0.3 Ω/10°C, POT ±0.4%/10°C |
| Current Consumption | 350 mA at 5 V DC |
Availability & Condition at AutoDCSTech
| Part Number | AAR145-S00 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
