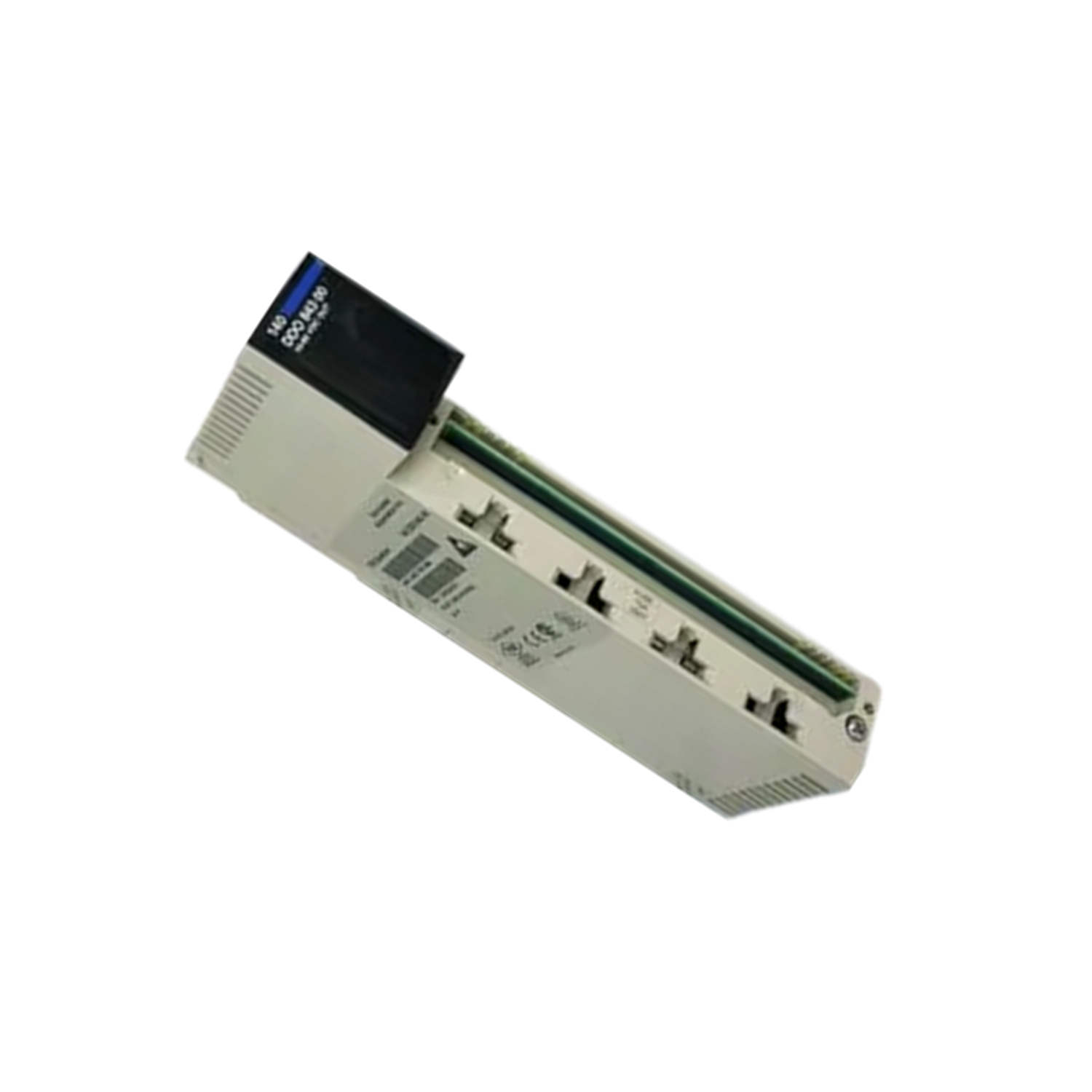

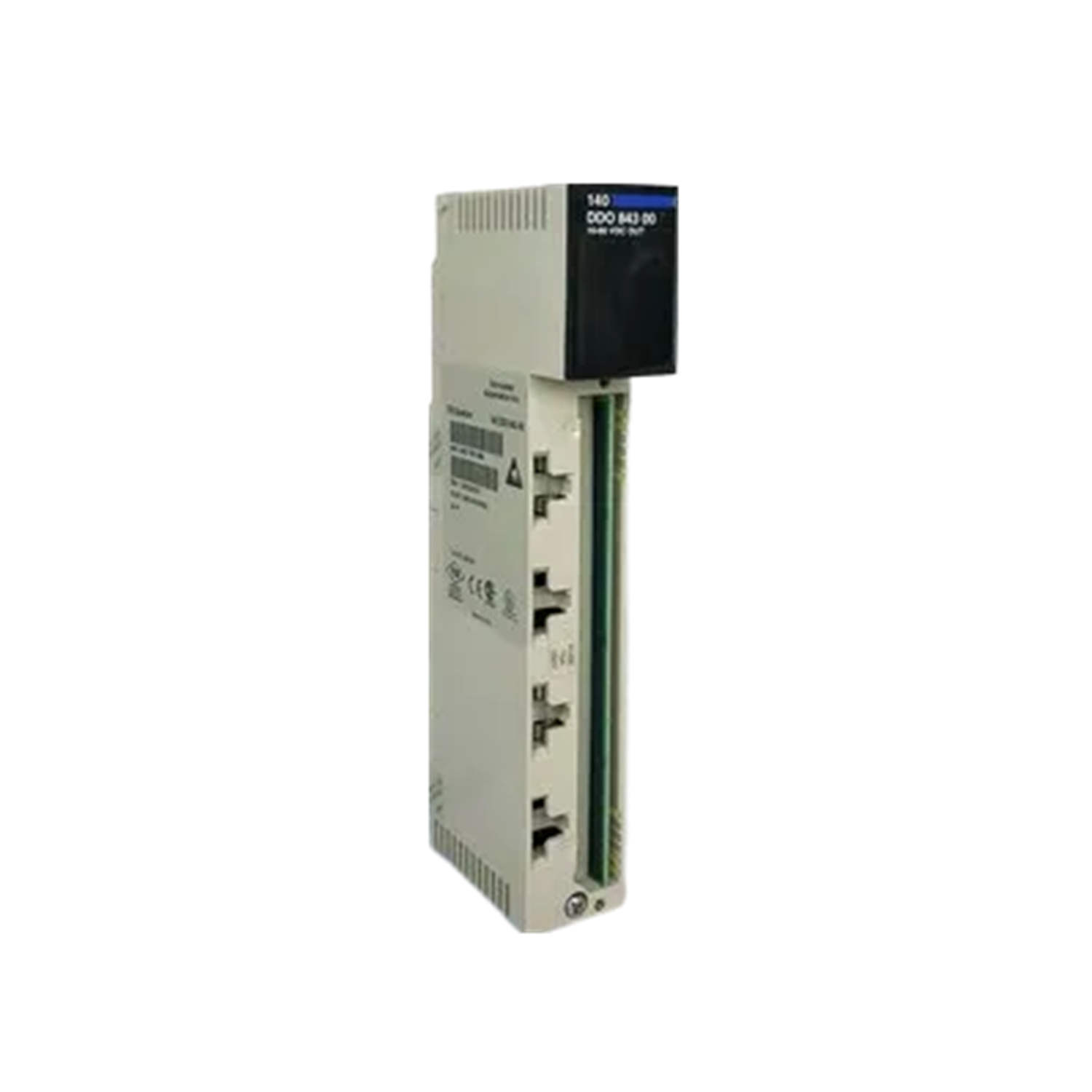

Product Overview
The Schneider Electric 140DDO84300C is a discrete output module from the Modicon Quantum automation platform. Designed for reliable DC switching, it provides 16 discrete outputs organized into two channel groups of eight outputs each. This module is ideal for controlling solenoids, indicators, and other low-power DC loads in industrial environments, helping reduce downtime through robust protection and clear local signaling.
Technical Specifications Breakdown
Key parameters for the 140DDO84300C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Output Type | Discrete Outputs |
| Number of Outputs | 16 |
| Channel Groups | 2 groups of 8 |
| Output Voltage Rating | 10 to 60 V DC |
| Output Voltage Limits | 10.2 to 72 V DC |
| Absolute Maximum Output | 72 V permanent |
| Bus Current Requirement | 160 mA |
| Power Dissipation | Approximately 1 W |
| Protection Type | 8 A fuse per output group |
| Leakage Current | Less than 1 mA |
| Ambient Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Coating Type | Conformal coating |
Industry Applications
This module is well-suited for material handling systems where 16 discrete outputs control conveyor zones or diverters. The 8 A fuse per group protects against overcurrent, reducing costly repairs. In packaging machinery, the 10 to 60 V DC range accommodates common sensor and actuator voltages, while the conformal coating guards against humidity and dust, extending service life. For water treatment plants, the low leakage current (less than 1 mA) ensures reliable off-state isolation, minimizing false triggering and energy waste.
Installation & Setup Guidance
Mount the module in a standard Modicon Quantum rack and connect the bus connector. Ensure the bus current requirement of 160 mA is within the rack power supply capacity. Wire each output group with an external 2 A fuse per point as recommended (associated fuse rating 2 A each point, 8 A per group). Use twisted-pair wiring for DC outputs to reduce noise. Verify the output voltage is within 10 to 60 V DC before energizing. The module uses positive logic (source) and requires one output word in the addressing map.
Maintenance & Reliability
Inspect the module quarterly for dust accumulation and ensure ambient temperature stays between 0 and 60 °C. The conformal coating protects against corrosive atmospheres, but avoid exposing the module to condensing humidity. The internal 8 A fuses are not user-replaceable; if a fuse blows, check the load for short circuits before replacing the module. Storage temperature range is -40 to 85 °C, so spare modules can be kept in a wide range of environments.
Compatibility & Integration
The 140DDO84300C integrates seamlessly with the Modicon Quantum automation platform. It is compatible with all Quantum racks and power supplies. The module carries CE marking and certifications including CSA C22.2 No 142, UL 508, C-Tick, FM Class 1 Division 2, RMRS, and GOST. Isolation between channels and bus is 2500 Vrms DC, and between groups is 700 Vrms DC, ensuring safe operation in mixed-voltage panels.
Selection Guide & Purchasing Advice
When selecting a discrete output module, consider the number of outputs, voltage range, and protection needs. The 140DDO84300C offers 16 outputs with 8 A group fuses, making it cost-effective for medium-density DC control. For higher current loads, consider external relays. Contact SpareTechPLC for current lifecycle status and availability before ordering.
Troubleshooting & Common Issues
If outputs fail to energize, check the bus communication LED (green) and fault LED (red). A red LED indicates an external fault, such as a blown group fuse or short circuit. Measure output voltage at the terminals; if voltage is present but the load does not operate, verify the load voltage rating and wiring. For intermittent operation, inspect for loose connections or environmental contamination. The module's response time is ≤1 ms for both on and off transitions, so timing issues are rare.
