Cost-Efficient Control with the Schneider 140DDO36400C

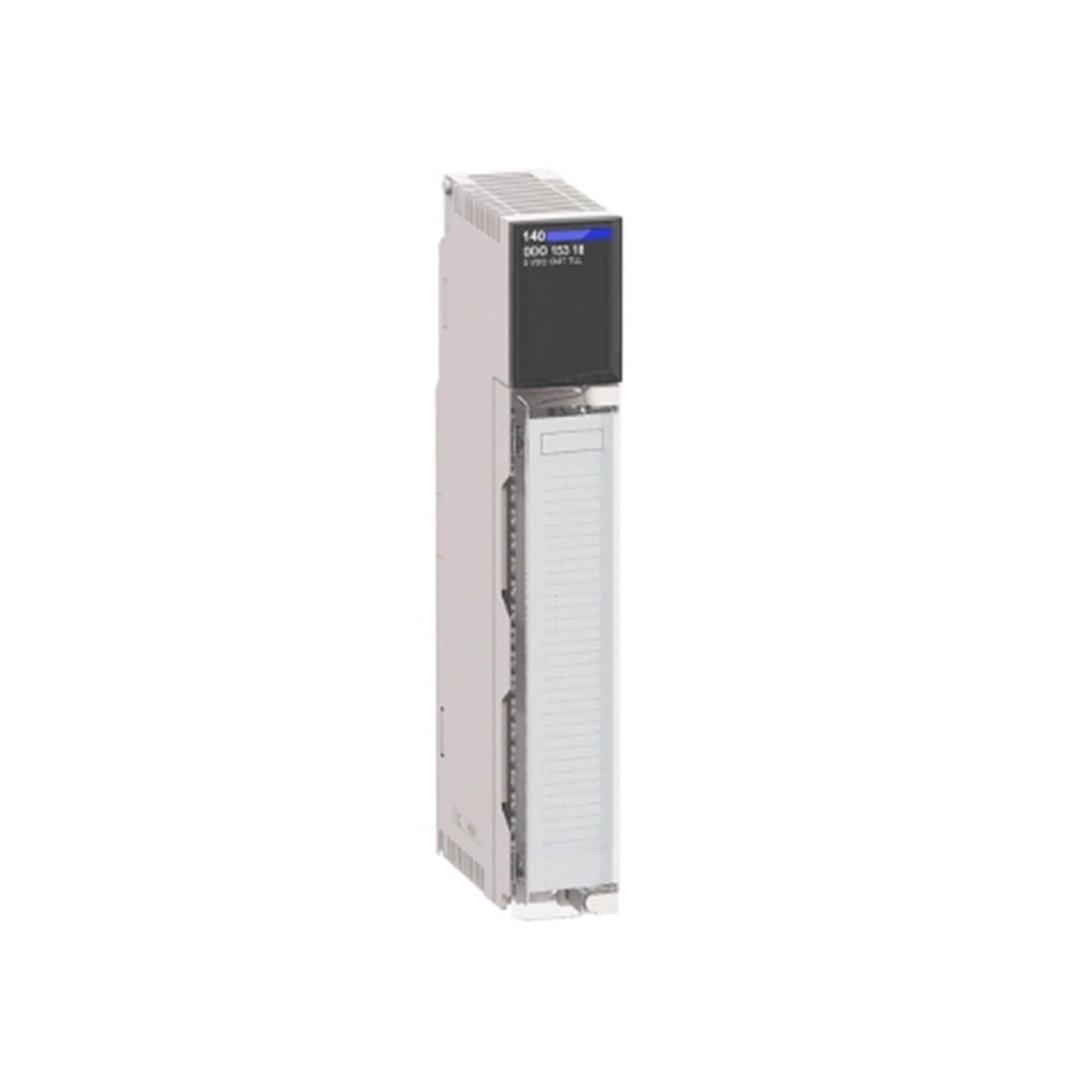

In industrial automation, every component must deliver reliable performance without inflating operational costs. The Schneider Electric 140DDO36400C, a DC discrete output module from the Modicon Quantum series, is engineered to balance high-density output control with energy efficiency and long-term durability. By integrating 96 discrete outputs into six isolated groups, this module reduces the number of I/O modules needed per panel, lowering both hardware and installation expenses.

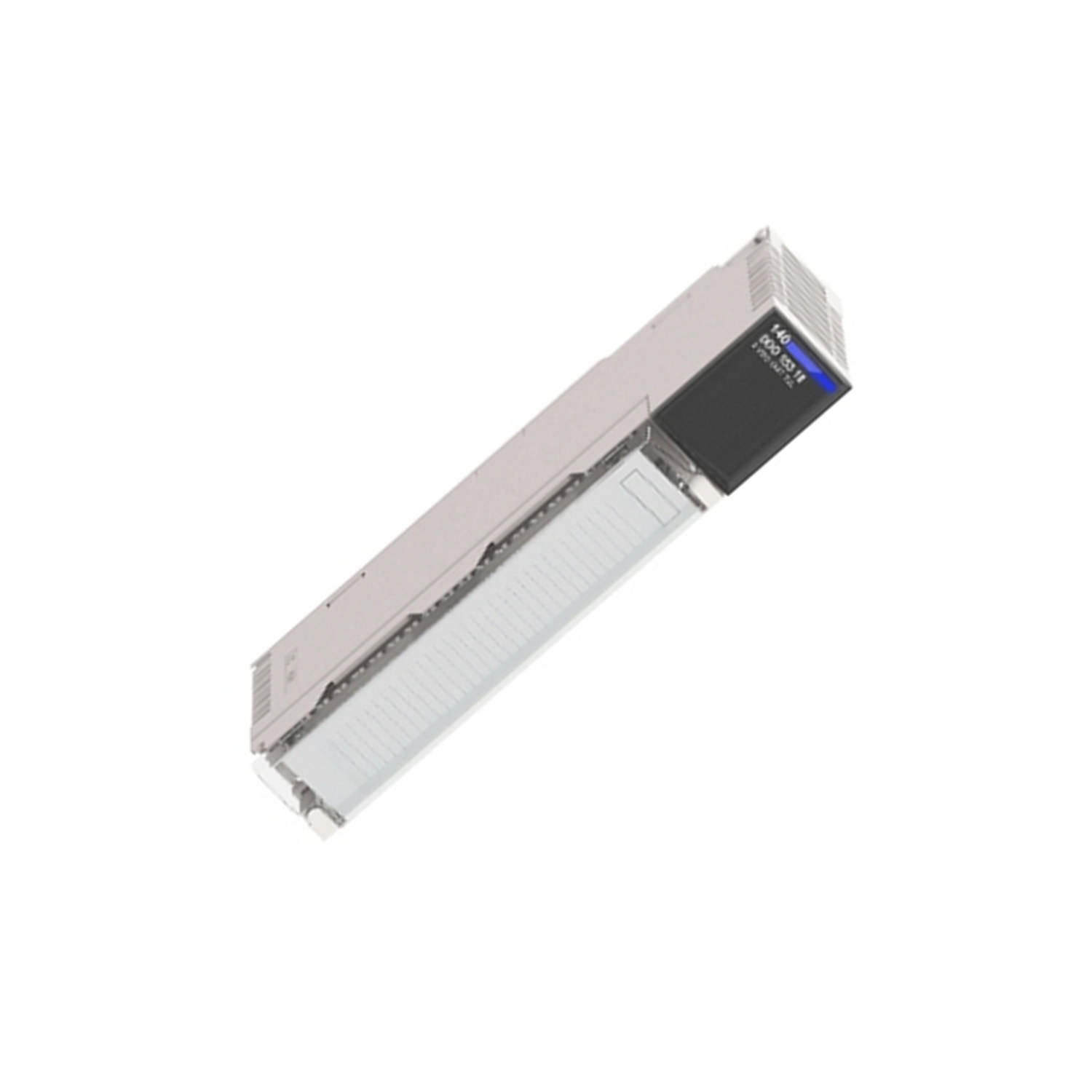

Technical Specifications Breakdown
Key parameters for the 140DDO36400C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Product Type | DC Discrete Output Module |
| Number of Channels | 96 outputs in 6 groups of 16 |
| Discrete Output Voltage | 24 V DC |
| Output Voltage Limits | 19.2 to 30 V |
| Surge Current | 2 A |
| Maximum Leakage Current | 1 mA at 24 V |
| Power Dissipation | 7 W |
| Bus Current Requirement | 250 mA |
| Resistance to Electrostatic Discharge | 4 kV (contact) |
| Resistance to Electromagnetic Fields | 9.1 V/m |
| Operating Altitude | 5000 m |
Industry Applications Driving ROI
Automotive Assembly Lines: The 140DDO36400C's 96 outputs enable simultaneous control of multiple actuators and solenoids. With a surge current rating of 2 A and short-circuit protection, it handles inrush loads without nuisance tripping, reducing downtime and maintenance costs.
Material Handling Systems: In conveyor networks, the module's negative logic (sink) output simplifies wiring with common industrial sensors. The low power dissipation of 7 W minimizes heat buildup in crowded enclosures, cutting cooling expenses.
Water Treatment Plants: Operating at altitudes up to 5000 m and with conformal coating protection, this module withstands harsh environments. The 1 mA maximum leakage current ensures safe operation with sensitive valve actuators, preventing false triggering and product waste.
Installation & Setup Guidance
To maximize cost benefits, mount the 140DDO36400C in a standard Modicon Quantum rack, ensuring the bus current requirement of 250 mA is within the rack's power budget. Use shielded twisted-pair wiring for output connections to maintain electromagnetic immunity up to 9.1 V/m. The module's 6 output words addressing requirement simplifies PLC programming — each group maps directly to a word in the I/O map, reducing configuration time.
Maintenance & Reliability
Periodic inspection of the 96 green LED indicators provides immediate visual status of each output. The conformal coating (Humiseal 1A33) protects against moisture and dust, extending service life in humid environments. With an ambient operating temperature range of 0 to 60 °C, the module maintains consistent performance without active cooling, lowering energy consumption.
Compatibility & Integration
The 140DDO36400C integrates seamlessly with the Modicon Quantum automation platform. Its 500 Vrms isolation between channels and bus ensures signal integrity and protects the backplane from ground loops. The module supports CE, RMRS, C-Tick, GOST, and FM Class 1 Division 2 certifications, making it suitable for global installations.
Selection Guide & Purchasing Advice
When selecting a DC discrete output module, consider total cost of ownership — not just initial price. The 140DDO36400C's 96 outputs in a single slot reduce the number of modules needed, saving rack space and wiring. For guaranteed genuine Schneider Electric parts and expert support, contact SpareTechPLC. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
If an output fails to energize, first check the corresponding green LED. If off, verify the bus communication LED (green) is lit. A red fault LED indicates an external fault — inspect the load for short circuits or overloads. The module's short-circuit protection automatically resets after the fault clears, minimizing downtime. For persistent faults, measure the output voltage at the terminal; it should be within 19.2 to 30 V DC.
