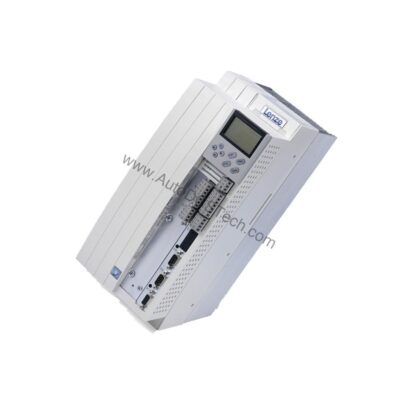

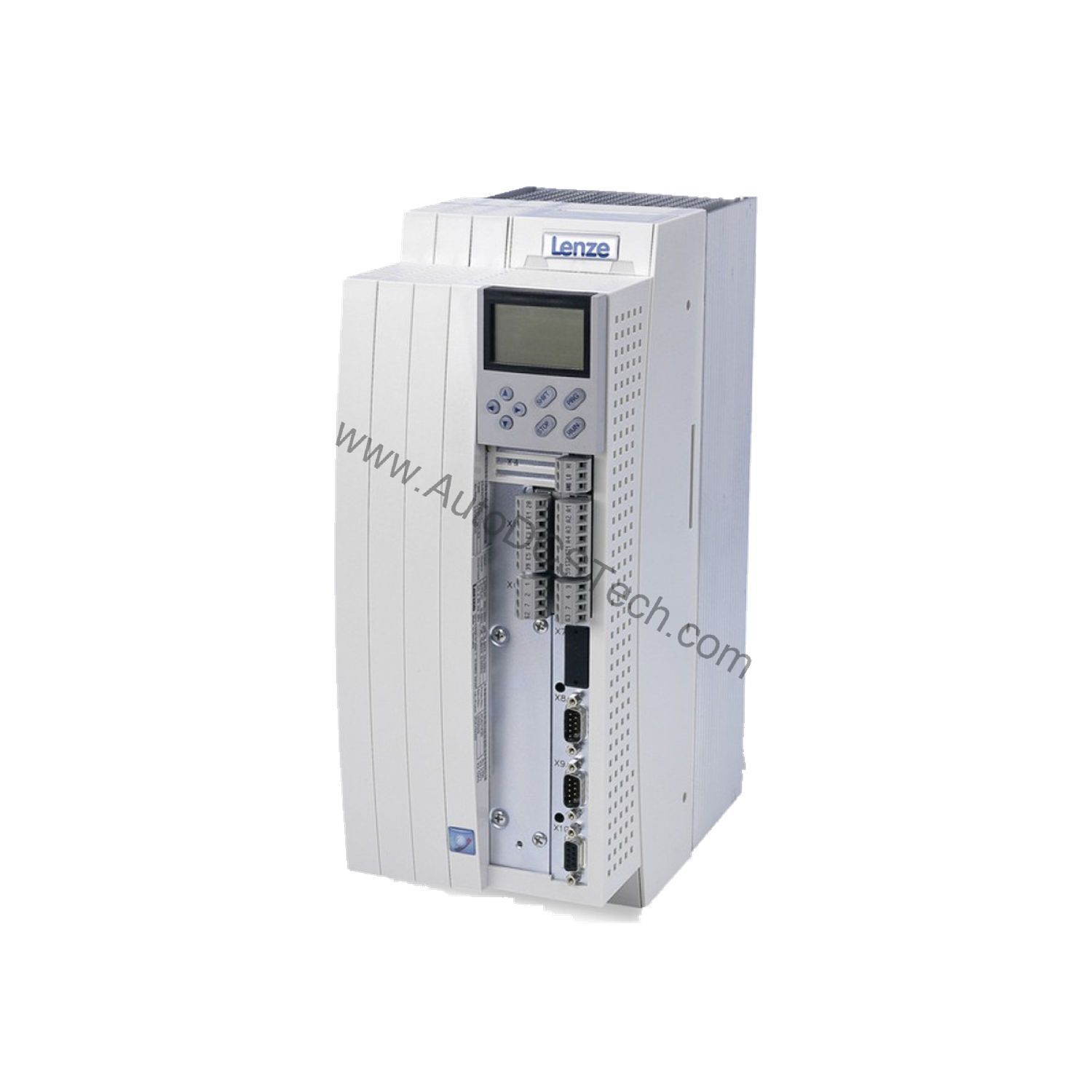

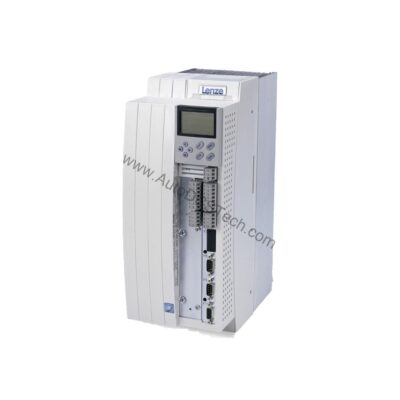

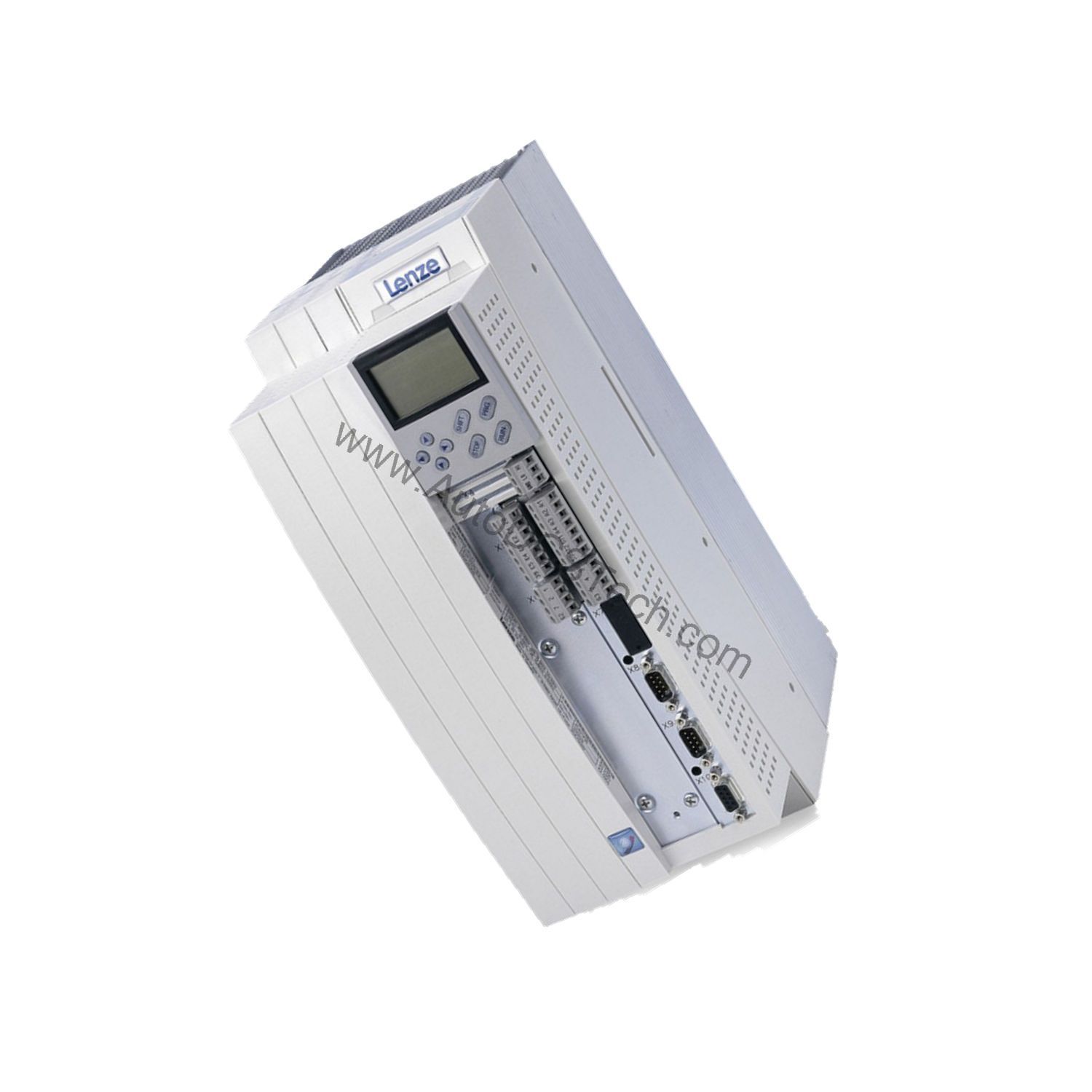

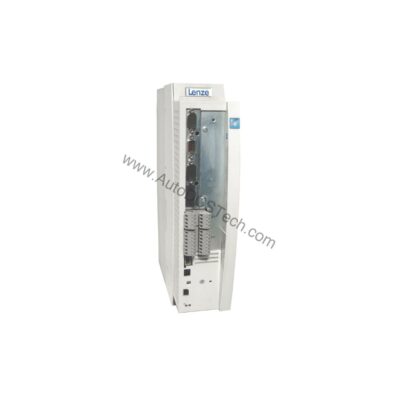

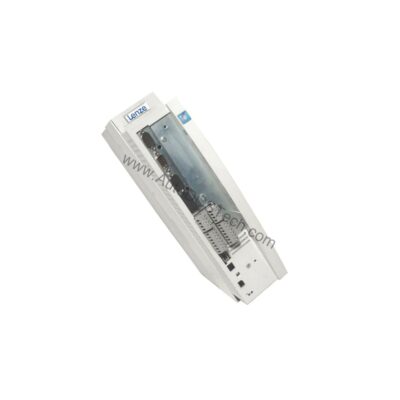

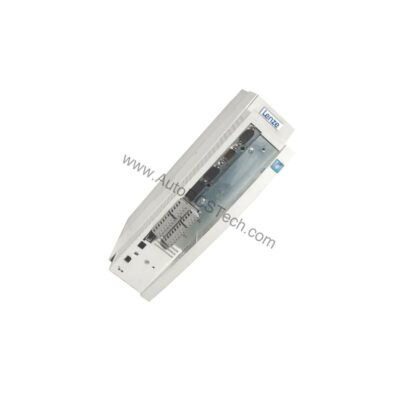

Lenze EVF9325-ES Vector Frequency Inverter 7HP 5.5kW

Technical Specifications Breakdown

Key parameters for the EVF9325-ES are listed below for quick reference:

Real-World Applications for the Vector Drive

The EVF9325-ES is built for environments where motor speed and torque control directly impact productivity. Consider these scenarios:

• Conveyor Systems: In material handling, maintaining consistent belt speed is critical. The inverter’s output frequency range of 0 to 600 Hertz allows fine-tuning of motor speed to match production demands, while the 150% overload capacity for 60 seconds handles sudden load spikes without tripping.
• Pumps and Fans: For HVAC or process applications, the ability to adjust motor speed reduces energy consumption and mechanical stress. The 400 to 480 Volts AC 3-phase input integrates easily with standard industrial power supplies.
• Machine Tools: Precision is key in machining. The vector control algorithm ensures high starting torque and stable operation across the speed range, even under varying load conditions.

Installation and Setup Guidance

Proper installation is essential for optimal performance. The EVF9325-ES is designed for panel mounting, which simplifies integration into control cabinets. Follow these practical steps:

1. Mounting: Ensure the panel is clean and provides adequate clearance for airflow. The IP20 protection class means the unit is suitable for indoor, dry locations.
2. Wiring: Connect the 3-phase input to the terminals, verifying that the supply voltage matches the 400 to 480 Volts AC requirement. Always follow local electrical codes and use appropriate wire gauges.
3. Configuration: Use the LED display to navigate the setup menu. Set the motor parameters (voltage, frequency, current) according to the motor nameplate. The output frequency range of 0 to 600 Hertz allows for a wide variety of motor speeds.
4. Testing: After configuration, run a test cycle at low speed to verify correct rotation and operation. Monitor the display for any fault indications.

Maintenance and Reliability Tips

The EVF9325-ES is designed for long service life, but regular maintenance helps prevent unexpected downtime. Here are some best practices:

• Periodic Inspection: Check the unit for dust accumulation, loose connections, and signs of overheating. Use a soft brush or low-pressure air to clean the enclosure.
• Environmental Control: The ambient operating temperature range is -10 to 60°C. Ensure the cabinet has adequate ventilation to keep the inverter within this range, especially in high-load conditions.
• Storage: If the unit is stored before installation, keep it in a clean, dry environment within the storage temperature range of -25 to 60°C.

Why the Lenze EVF9325-ES Stands Out for Motor Control

In industrial automation, precise motor control is non-negotiable. The Lenze EVF9325-ES is a vector frequency inverter engineered to deliver reliable performance across a variety of demanding applications. With a horsepower capacity of 7 and a rated active power of 5.5 kilowatts, this unit is a solid choice for operations that require accurate speed and torque management. Its robust design and practical features make it a valuable asset for both new installations and system upgrades.

Compatibility and Integration Considerations

As part of the Lenze Series 9300, the EVF9325-ES is designed to work with Lenze motors and other industrial components. However, it can also be used with third-party motors that meet the voltage and current ratings. The 3-phase input and output voltage up to 480 Volts AC make it compatible with standard European and North American industrial power systems.

Purchasing and Support from AutoDCSTech

We understand that downtime is costly, so we offer fast shipping and responsive customer support. Our team can help you verify that this inverter meets your specific application requirements. Contact us today for a quote or to discuss your automation needs.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
