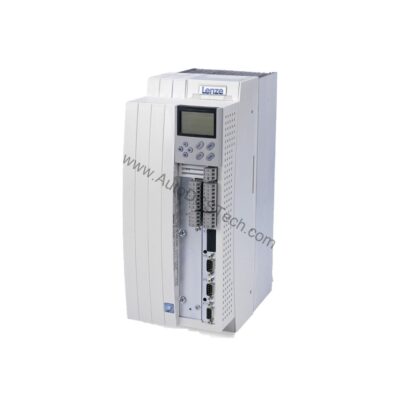

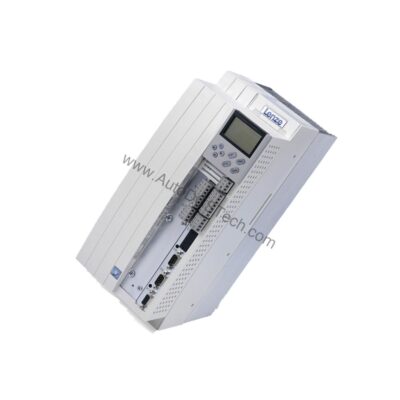

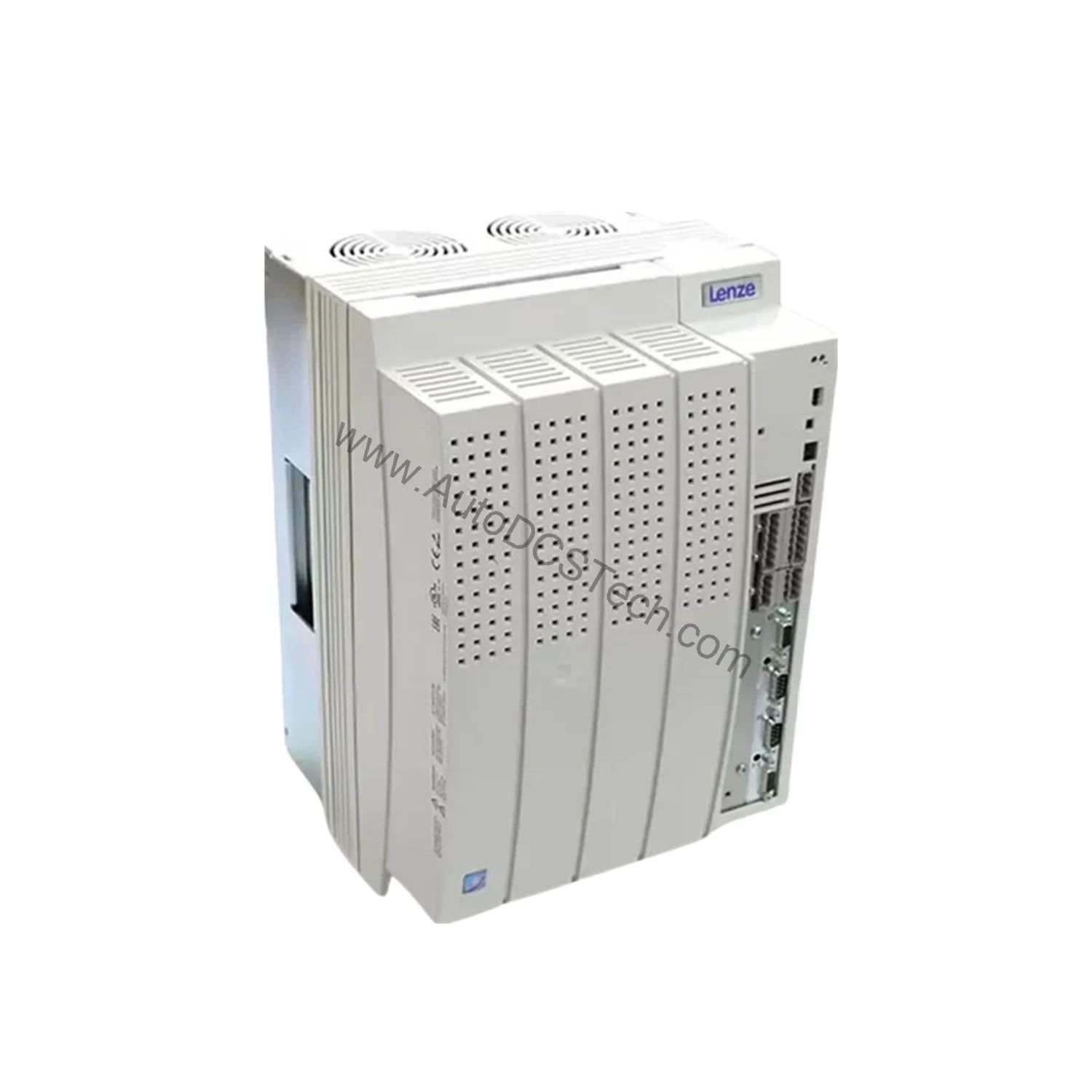

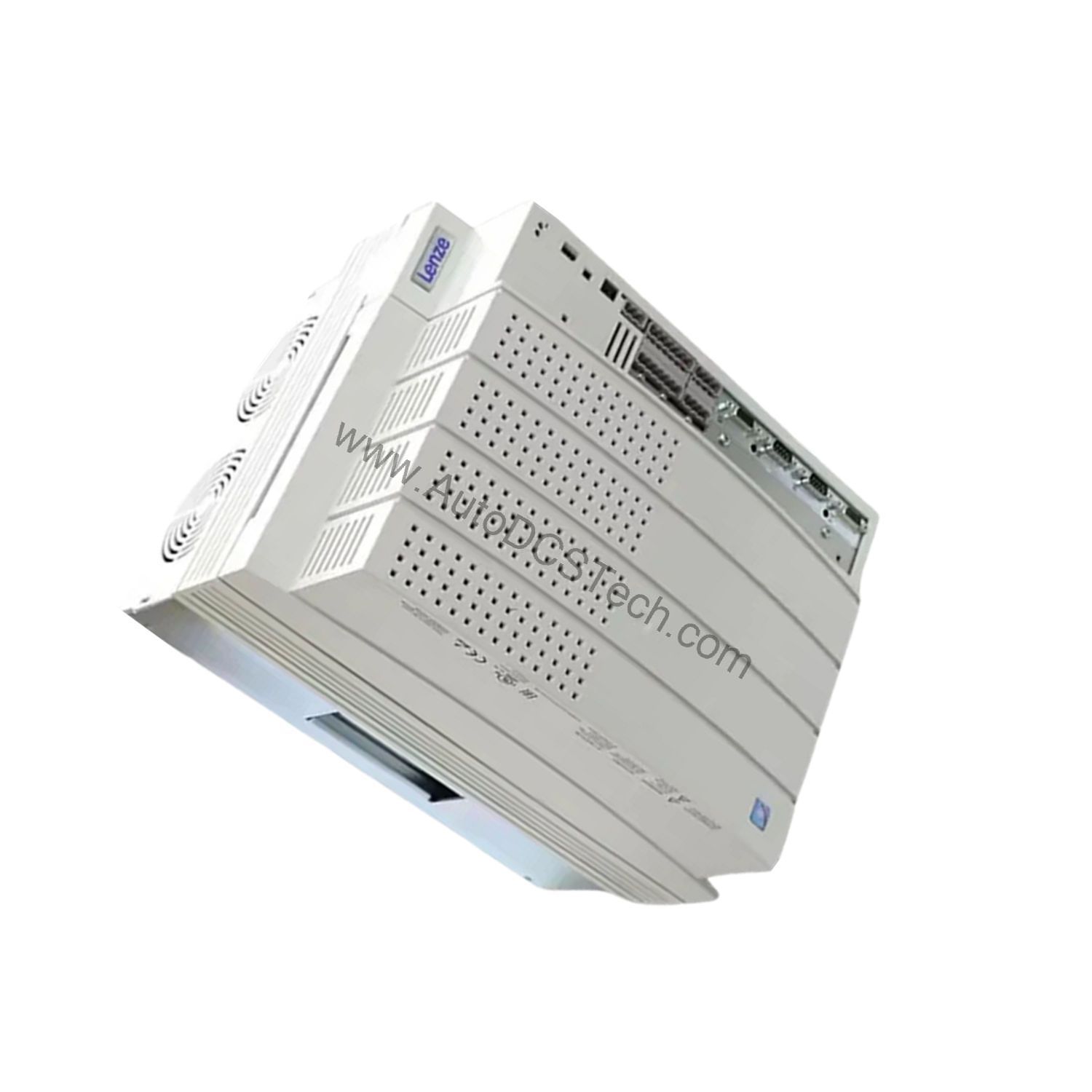

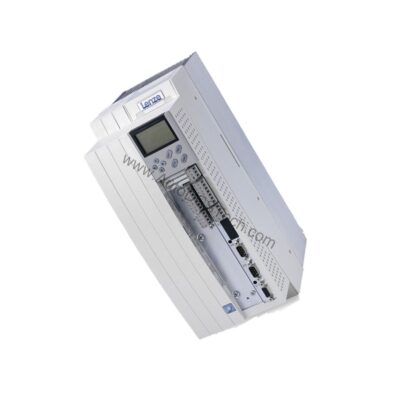

Lenze EVF9328-EV Frequency Inverter 40 HP 320-440V AC

Technical Specifications Breakdown

Key parameters for the EVF9328-EV are listed below for quick reference:

Reliable Motor Control for Industrial Applications

The Lenze EVF9328-EV is a frequency inverter from the Series 9300, designed to deliver dependable variable-speed control in demanding industrial environments. With a motor power rating of 40 HP and support for mains voltages from 320 to 440V AC, this unit provides the flexibility needed for a wide range of machinery. Whether you are upgrading an existing system or specifying a new installation, the EVF9328-EV offers the performance and robustness expected from the Lenze brand.

Industrial Applications and Benefits

The EVF9328-EV is engineered for applications that require precise speed control and energy efficiency. Typical uses include conveyors, pumps, fans, and machine tools where variable torque and speed are essential. The unit's ability to operate on a wide mains voltage range (320-440V AC) makes it suitable for regions with fluctuating power supplies. Additionally, the alternative DC supply voltage (460-620V DC) allows integration into DC bus systems, offering flexibility in complex installations.

By selecting the right frequency inverter, you can reduce energy consumption, minimize mechanical stress, and improve process control. The EVF9328-EV delivers up to 39.5 kVA output power at 2/4 kHz switching frequency, ensuring adequate capacity for demanding loads. At 8 kHz, the output is 32.6 kVA, which still provides strong performance while reducing acoustic noise.

Installation and Setup Guidance

Mounting the EVF9328-EV is straightforward: it is designed for back panel installation inside a control cabinet. Ensure adequate ventilation and clearance around the unit to maintain proper cooling. The mains frequency range of 45-65 Hz allows operation with most standard power grids. When connecting the DC supply, verify that the voltage stays within the specified 460-620V DC range. Always follow local electrical codes and use appropriate fusing and disconnects.

For initial setup, configure the inverter parameters according to your motor's data and application requirements. Refer to the Lenze Series 9300 documentation for detailed programming instructions. It is recommended to have a qualified engineer perform the commissioning to ensure safe and optimal operation.

Maintenance and Reliability

Regular maintenance is key to maximizing the lifespan of your frequency inverter. Periodically inspect the unit for dust accumulation and clean the heat sink with a soft brush or low-pressure air. Check all electrical connections for tightness and signs of corrosion. Monitor the operating environment to avoid excessive humidity or temperature extremes.

The EVF9328-EV is designed for efficient energy management, with a power loss of only 610W, which reduces heat generation inside the cabinet. This contributes to overall system reliability and lower cooling requirements.

Compatibility and Integration

As part of the Lenze Series 9300, the EVF9328-EV is compatible with a range of Lenze motors and accessories. Its flexible power supply options—both AC and DC—enable integration into various industrial power architectures. When replacing an existing inverter, verify that the motor power rating and voltage class match your application.

Selection Guide and Purchasing Advice

When selecting a frequency inverter, consider the motor's full-load current, speed range, and control requirements. The EVF9328-EV is a solid choice for 40 HP motors operating from 320-440V AC mains. Ensure that the mains current rating of 50 Amps (with choke/filter) is compatible with your supply and motor.

At AutoDCSTech, we stock genuine Lenze parts and provide expert support to help you choose the right component. Contact our team to verify availability and lifecycle status before ordering. We are committed to delivering reliable industrial automation solutions.

Troubleshooting and Common Issues

If the inverter does not start, check the mains voltage and frequency against the specified range. Verify that the DC supply (if used) is within 460-620V DC. Inspect the control wiring and ensure that all safety interlocks are closed. If the unit trips on overcurrent, examine the motor and cables for short circuits or ground faults. For persistent issues, consult the Lenze Series 9300 manual or contact AutoDCSTech for technical assistance.

Always disconnect power before performing any inspection or maintenance. Only qualified personnel should service the equipment.
