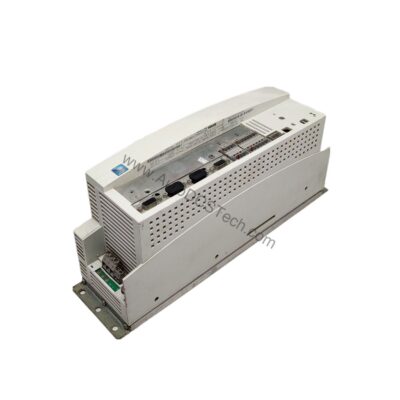

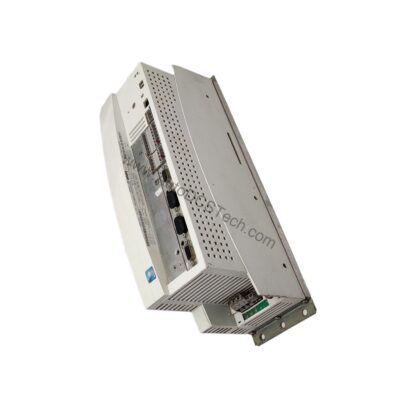

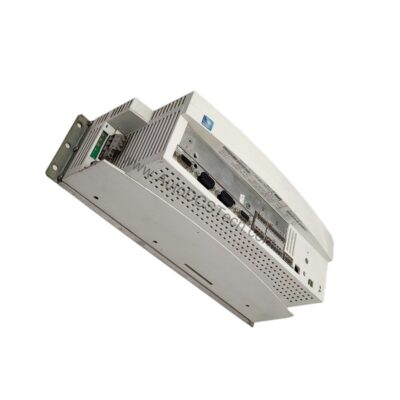

Lenze EVF9324-CVV003 Frequency Inverter 5.4 HP Vector Control

Technical Specifications Breakdown

Key parameters for the EVF9324-CVV003 are listed below for quick reference:

Industry Applications: Where Precision Meets Reliability

Consider a conveyor system in a packaging plant. The vector control ensures smooth starts and stops, minimizing product damage. Similarly, in a pump or fan application, the drive can adjust output to match demand, leading to significant energy savings. The wide mains voltage range of 320-440 V AC and the DC supply option of 460-620 V DC offer flexibility in different plant power architectures, making the EVF9324-CVV003 a versatile choice for retrofits and new installations alike.

Installation & Setup Guidance

The EVF9324-CVV003 features a cold plate design, specifically engineered for back panel mounting inside a control cabinet. This approach optimizes heat dissipation and saves valuable floor space. When installing, ensure the mounting surface is flat and clean to maximize thermal transfer. The IP20 rating means the unit is protected against solid objects larger than 12.5 mm, so it is suitable for controlled industrial environments where water ingress is not a concern. Always follow standard safety procedures and disconnect power before any installation or wiring work.

Maintenance & Reliability

Regular maintenance is key to long service life. Because the inverter is designed for a 0 °C to +40 °C ambient temperature range, ensure adequate ventilation within the control cabinet to avoid overheating. Periodically inspect the unit for dust accumulation and clean the heatsink area with dry, low-pressure air. Check all electrical connections for tightness, as thermal cycling can loosen terminals. By following these simple steps, you can maintain reliable operation and prevent unexpected downtime.

Optimize Motor Performance with the Lenze EVF9324-CVV003

Industrial processes demand precise speed and torque control. The Lenze EVF9324-CVV003 frequency inverter from the Series 9300 delivers exactly that. With a robust 5.4 HP output and vector control technology, this drive ensures accurate motor management, reducing energy waste and improving product quality. Whether you are upgrading an existing line or designing a new control system, this inverter provides the reliability and performance your application requires.

Compatibility & Integration

The EVF9324-CVV003 is part of the Lenze Series 9300, a well-established product family. It accepts a mains frequency of 45 to 65 Hz, making it compatible with power grids worldwide. The availability of both AC and DC supply inputs allows for integration into systems with DC bus commoning or backup power configurations. For seamless integration, consult the official Lenze documentation for detailed wiring diagrams and parameter settings.

Selection Guide & Purchasing Advice

When selecting a frequency inverter, verify that the voltage, current, and power ratings match your motor and application. The EVF9324-CVV003 offers a balanced combination of power and control for many industrial tasks. At AutoDCSTech, we supply genuine Lenze parts to keep your operations running. Contact our team to confirm the current lifecycle status and availability of this model before placing your order. We are here to help you find the right solution for your automation needs.

Troubleshooting & Common Issues

If the drive does not start, check the incoming mains voltage against the 320-440 V AC range and ensure the frequency is within 45 to 65 Hz. Verify that the DC supply, if used, is within 460-620 V DC. Overheating can occur if the ambient temperature exceeds +40 °C or if airflow is blocked; improve cabinet ventilation. If the motor runs erratically, review the vector control parameters and ensure they match the motor nameplate data. Always refer to the Lenze manual for specific error codes and advanced diagnostics.
