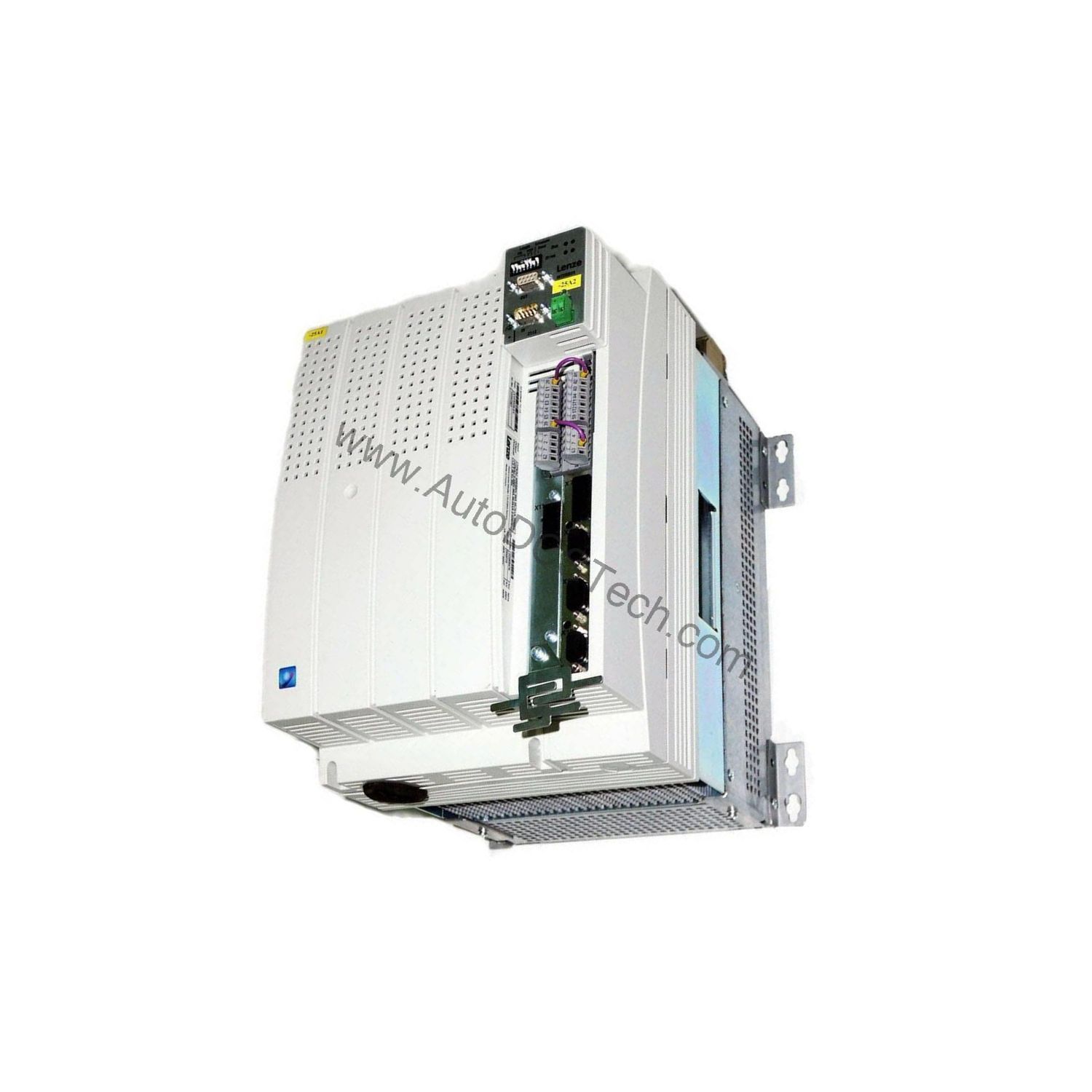

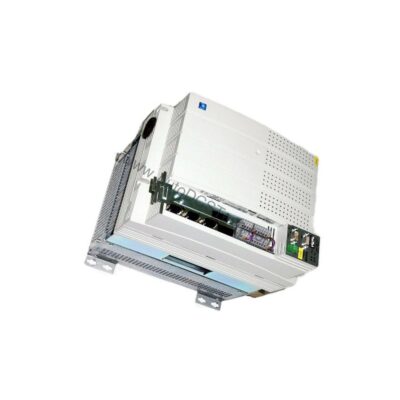

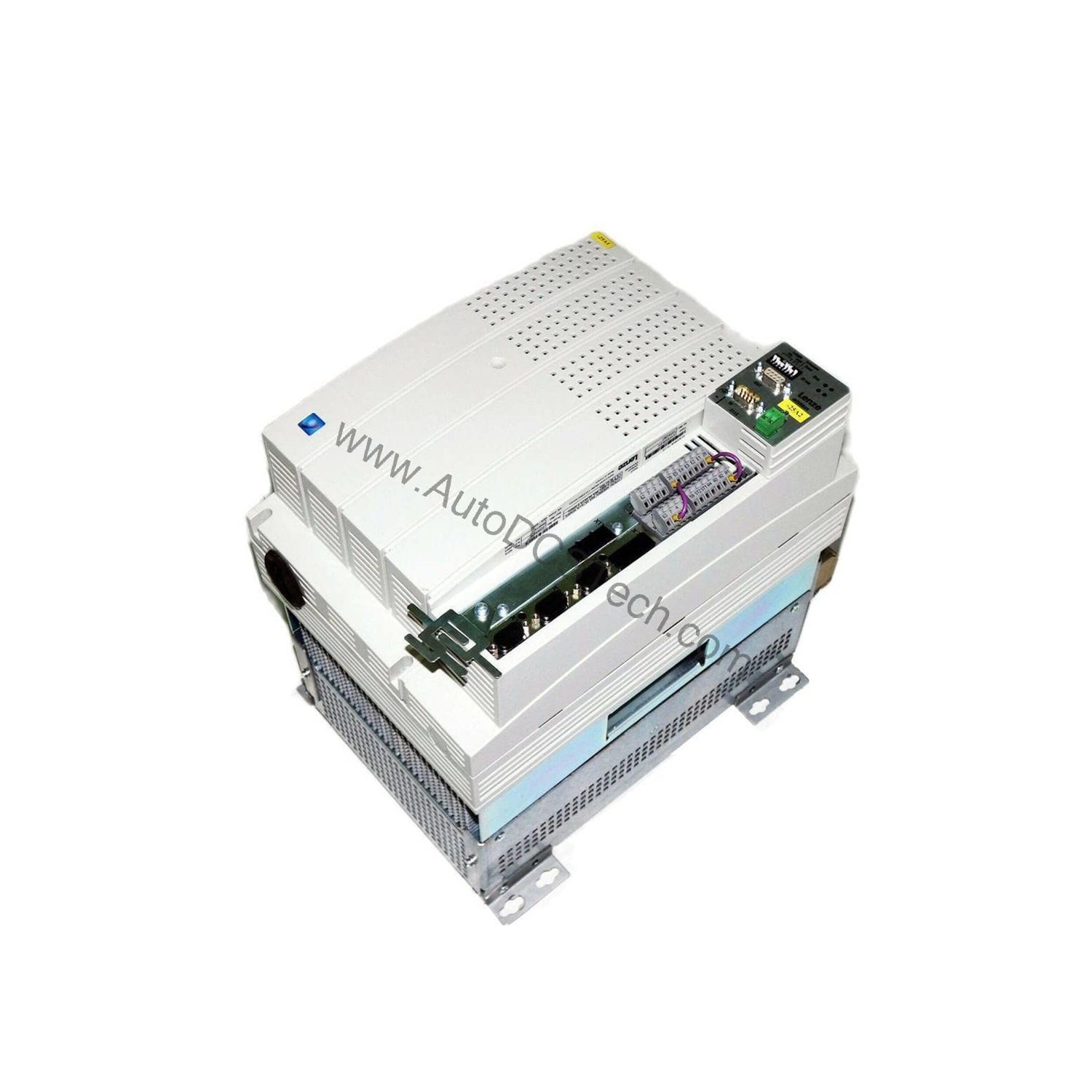

Lenze EVF9329-EV Frequency Inverter – 50 HP, 320-440V AC

Technical Specifications Breakdown

Key parameters for the EVF9329-EV are listed below for quick reference:

Industry Applications and Operational Benefits

This frequency inverter is well-suited for applications that require variable speed control of 50 HP motors. Typical uses include conveyors, pumps, fans, and other machinery in manufacturing and processing plants. The wide mains frequency range of 45-65 Hz allows the drive to operate on both 50 Hz and 60 Hz power systems, making it a versatile option for global installations. The ability to use a DC supply voltage (460-620V DC) provides an alternative for facilities with DC bus systems, enhancing energy efficiency and system integration.

Installation and Setup Guidance

Mounting the EVF9329-EV is straightforward. It is specifically designed for back-panel mounting inside a control cabinet. Ensure the mounting surface is flat and rigid to support the unit's weight. Provide adequate clearance around the unit for airflow and heat dissipation. When connecting the mains supply, verify the voltage matches the 320-440V AC range. If using a DC supply, ensure it is within the 460-620V DC range. Always follow local electrical codes and use appropriate fusing and disconnects.

Maintenance and Reliability

The EVF9329-EV is built to operate reliably in ambient temperatures from 0 °C to +40 °C. For optimal performance, maintain the control cabinet temperature within this range. Periodically inspect the inverter for dust accumulation and ensure cooling fans (if any) are unobstructed. Check all electrical connections for tightness and signs of corrosion. A simple visual inspection every few months can prevent unexpected downtime.

Compatibility and Integration

The inverter is part of the Lenze Series 9300 product line, known for its robust design and ease of integration. It works with standard AC motors rated up to 50 HP. The unit's output frequency can be adjusted via the control panel or external signals, allowing for seamless integration into existing automation systems. Its compatibility with both AC and DC power sources makes it a flexible building block for modern control systems.

Selection Guide and Purchasing Advice

When selecting a frequency inverter, consider your motor's power rating, input voltage, and environmental conditions. The EVF9329-EV meets these criteria with its 50 HP rating, wide voltage range, and temperature tolerance. At AutoDCSTech, we offer this model to help you maintain or expand your operations. Contact our team to verify availability and lifecycle status before ordering, ensuring you get the right part for your application.

Troubleshooting and Common Issues

If the inverter does not start, check the mains supply voltage and ensure it is within 320-440V AC. Verify that the DC supply, if used, is within 460-620V DC. If the unit trips on overcurrent, inspect the motor and cabling for shorts or ground faults. If the ambient temperature exceeds +40 °C, improve cabinet ventilation. For persistent issues, consult the Lenze documentation or contact AutoDCSTech for technical support.
