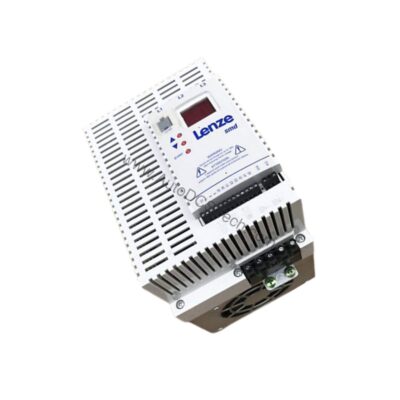

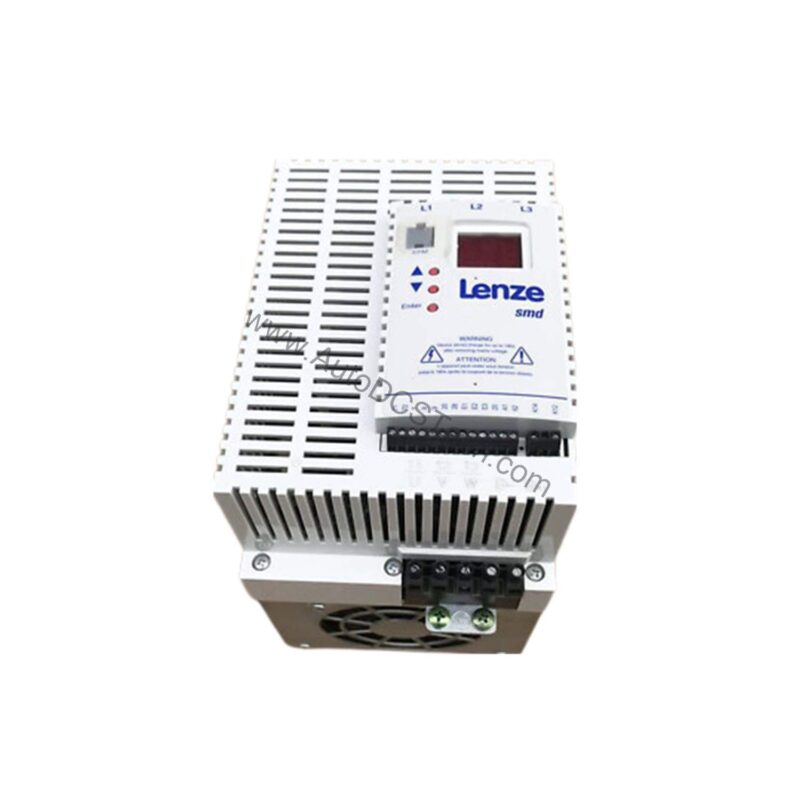

ESMD113L4TXA: Frequency Inverter
The ESMD113L4TXA is the Frequency Inverter covered on this page. The attribute that decides whether it fits the existing installation without modification is 1 analog input, 4 digital inputs, 1 digital relay output.
What separates this variant from its siblings is frequency inverter. A variable-speed or soft-start device is specified by the motor it must control and the starting or speed regime it must deliver. frequency inverter sets the current or power rating, the control method and the enclosure or network option — the things that decide whether the device starts the load without tripping and integrates with the existing control. Verifying 1 analog input, 4 digital inputs, 1 digital relay output against the motor nameplate and the control architecture prevents a drive that fits the panel but cannot carry the load.
| Feature | Specification |
|---|---|
| Manufacturer | Lenze |
| Brand | Lenze |
| Part Number | ESMD113L4TXA |
| Product Type | Frequency Inverter |
| Protection Class | IP20 |
| Current Rating | 27 Amperes |
| Input Phase Type | 3-phase input |
| Power Supply Voltage | 400 Volts AC |
| Rated Output | 11 kilowatt |
| Inputs | 1 analog input, 4 digital inputs, 1 digital relay output |
| Input Frequency | 50-60 Hz |
| Operating Temperature | 0-55°C |
| Control Method | PID |
| Output Frequency | 0-500 Hz |
| Storage Temperature | -20-70°C |
| Overload Capacity | 150% in 60 seconds |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| lenze-esmd152l4txa-15kw-three-phase-drive-for-pumps-fans | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | ESMD113L4TXA |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
