Introduction

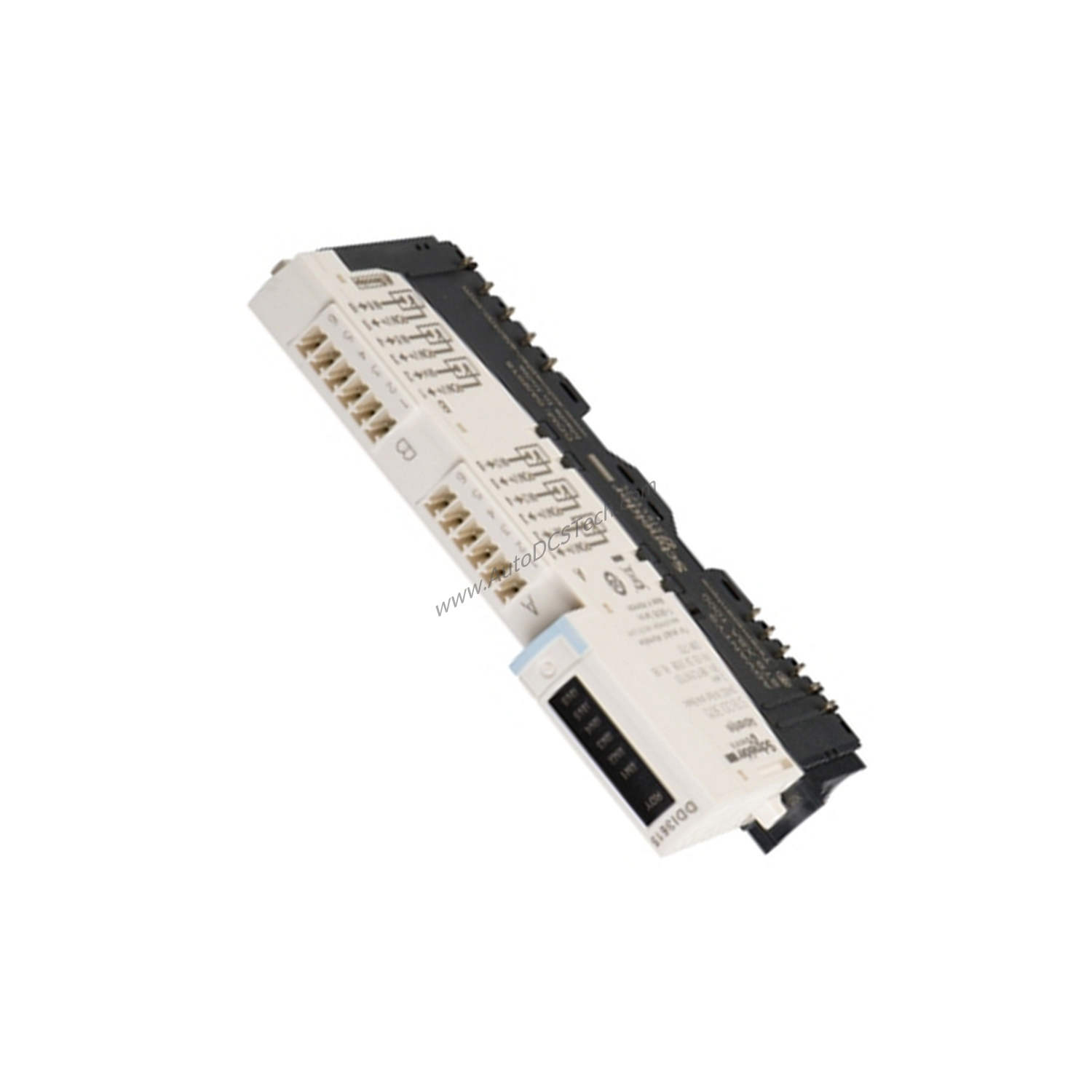

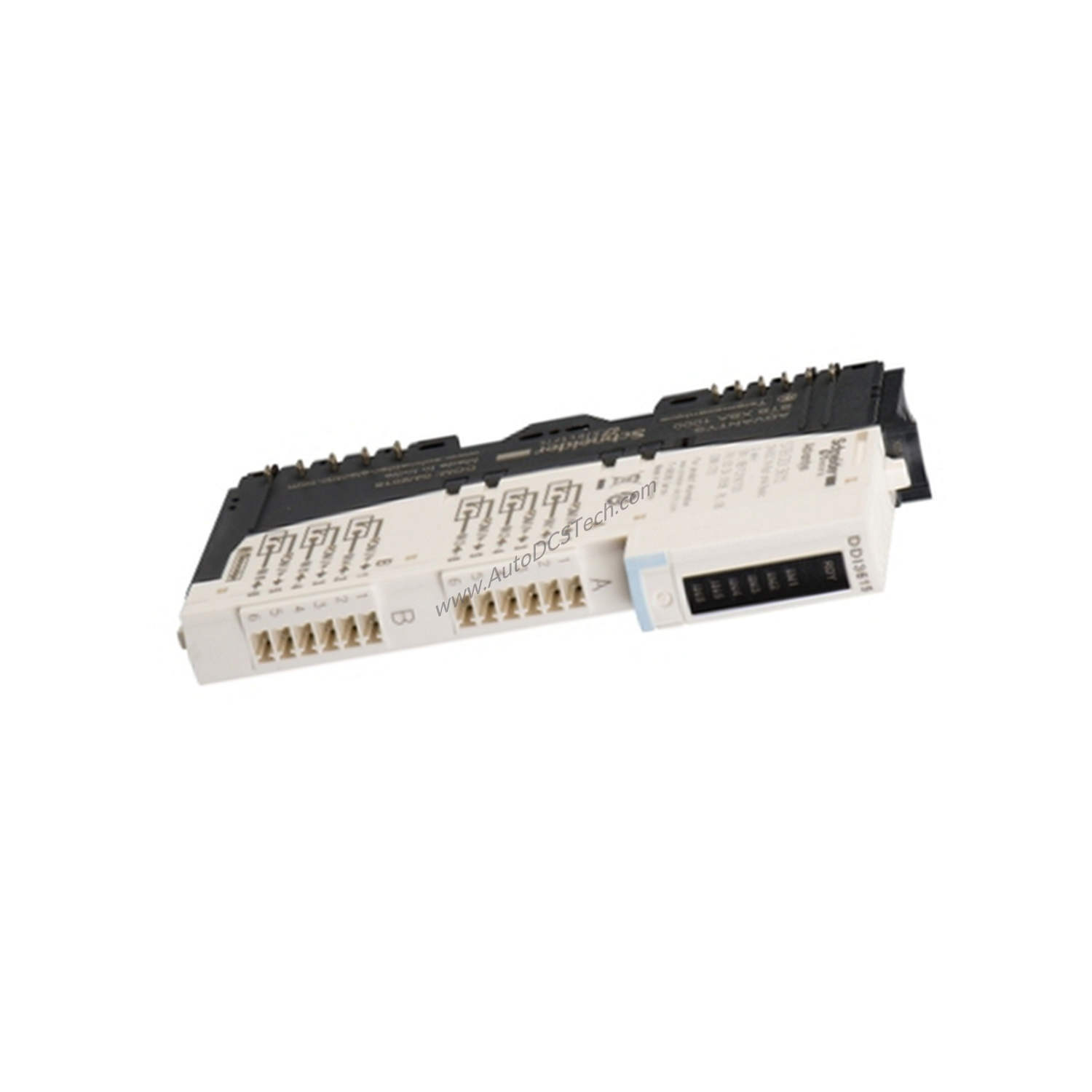

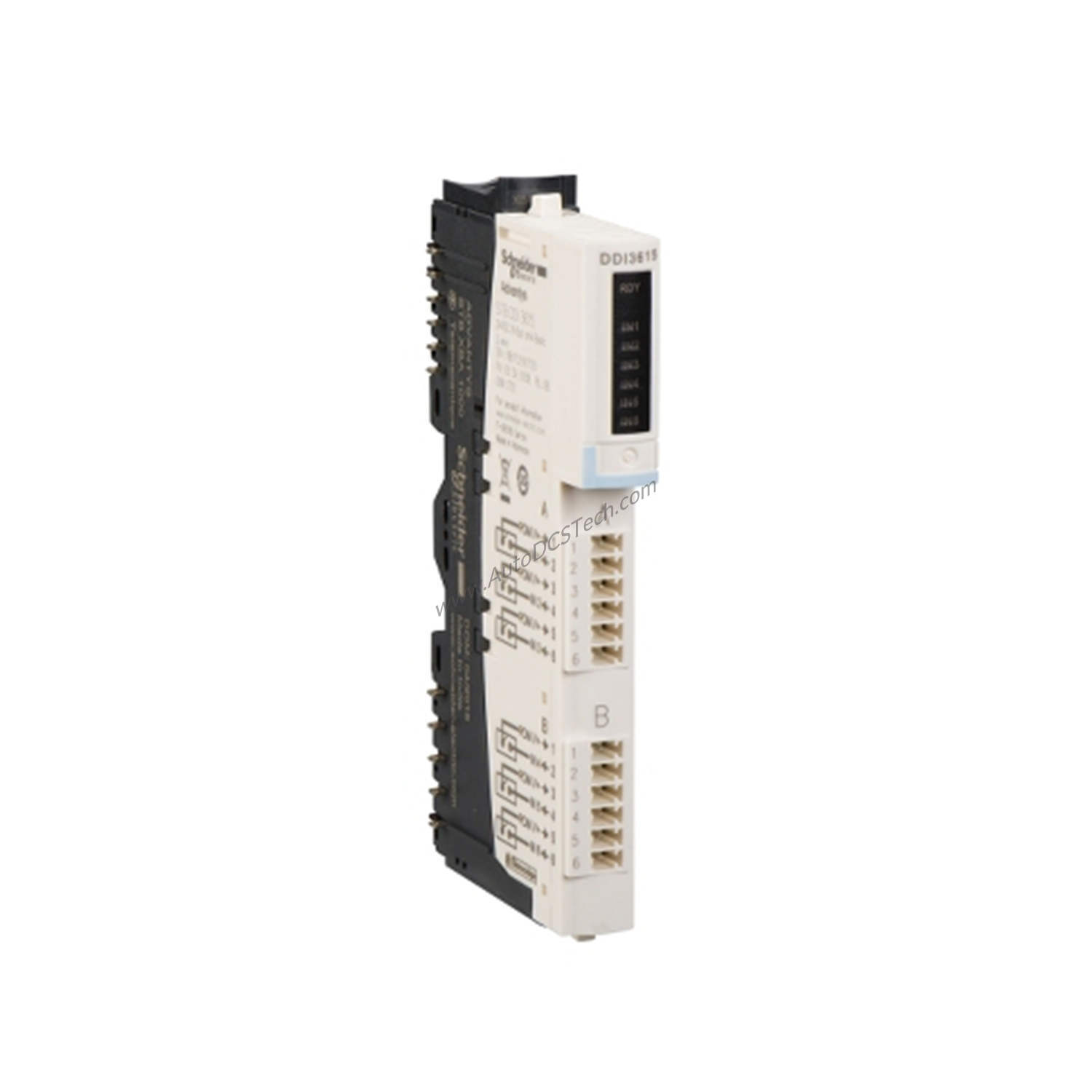

In industrial automation, reliable digital input sensing is critical for accurate process control. The Schneider STBDDI3420K Digital input kit, Modicon STB addresses this need by providing a compact, robust solution for 24V DC discrete input applications. Part of the Modicon STB distributed I/O solution family, this kit combines a STBDDI3420 module with essential mounting and connection components, ensuring seamless integration into existing systems.
Technical Specifications Breakdown
The STBDDI3420K offers 4 discrete inputs with a rated voltage of 24V DC. Input voltage limits are clearly defined: 11...30 V at state 1 and -3...5 V at state 0, with an acceptable input voltage of 30 V and an absolute maximum of 56 V for 1.3 ms. Each channel draws 8 mA, with guaranteed current thresholds: state 0 ≤ 1.2 mA and state 1 ≥ 2.5 mA. The input logic supports both positive and negative configurations, providing flexibility for various sensor types. Response times are 0.925 ms off-to-on and 1.35 ms on-to-off, with selectable input filtering options including 0.5 ms, 1 ms, 2 ms, 4 ms, 8 ms, and 16 ms ± 0.25 ms.
Industry Applications
A typical engineering challenge involves integrating multiple discrete sensors into a distributed control system while maintaining signal integrity. The STBDDI3420K excels in such scenarios, such as monitoring limit switches on a conveyor line or detecting part presence in an assembly machine. Its 100 mA per channel sensor supply current simplifies wiring by powering proximity sensors directly. The kit's insulation of 1500 V between channels and logic bus ensures reliable operation in electrically noisy environments, reducing false triggers and downtime.
Installation & Setup Guidance
Mount the STBDDI3420K using the included STBXBA1000 base on a DIN rail. The kit provides both a 6-terminal spring clamp connector (STBXTS2100) and a 6-terminal screw type connector (STBXTS1100) for flexible field wiring. Connect the power distribution module (STBPDT3100/3105) for supply voltage at 24V DC. The module draws 45 mA at 5V DC from the logic bus. Ensure proper polarity and observe the overvoltage category II rating. Cold swapping and hot swapping (for standard NIMs) allow module replacement without system shutdown.
Maintenance & Reliability
Routine inspection of the STBDDI3420K focuses on verifying LED status indicators: a green RDY LED for module status, individual green LEDs for channel status (IN1 to IN4), and a red ERR LED for errors. The integrated fuse on the power distribution module (time lag 10 A) and input protection (resistor-limited, reverse polarity) reduce common failure modes. Operating temperature range is -25…70 °C without derating, and storage from -40…85 °C. With IP20 protection and compliance to IEC 61131-2 Type 1, the kit suits controlled industrial environments. Regular checks of connector tightness and environmental conditions (humidity up to 95% at 60°C without condensation) extend service life.
Compatibility & Integration
The STBDDI3420K integrates with the Modicon STB distributed I/O solution via the I/O base STBXBA1000 and power distribution module STBPDT3100/3105. It supports standard NIMs for hot swapping. The kit is certified with CSA, FM Class 1 Division 2, and UL markings, ensuring compliance in hazardous locations. The CE marking confirms adherence to European standards.
Selection Guide & Purchasing Advice
Before purchasing the STBDDI3420K, verify your system's supply voltage (24V DC) and logic requirements (positive or negative). Ensure compatibility with your existing Modicon STB backplane and power distribution module. SpareTechPLC offers this kit as a genuine Schneider Electric product, ready for immediate shipment. Contact our team to confirm current lifecycle status and availability.
Frequently Asked Questions
Q1: What is the maximum voltage the STBDDI3420K can withstand without damage?
A1: The absolute maximum voltage is 56 V for 1.3 ms, per the specifications.
Q2: Can the STBDDI3420K be used with both positive and negative logic sensors?
A2: Yes, the discrete input logic supports both positive and negative configurations.
Q3: What is the response time of the inputs on the STBDDI3420K?
A3: Off-to-on response time is 0.925 ms, and on-to-off is 1.35 ms.
Q4: Does the STBDDI3420K support hot swapping?
A4: Yes, hot swapping is supported for standard NIMs; cold swapping is also supported.
Q5: What certifications does the STBDDI3420K hold?
A5: It carries CE, CSA, FM Class 1 Division 2, and UL certifications.
