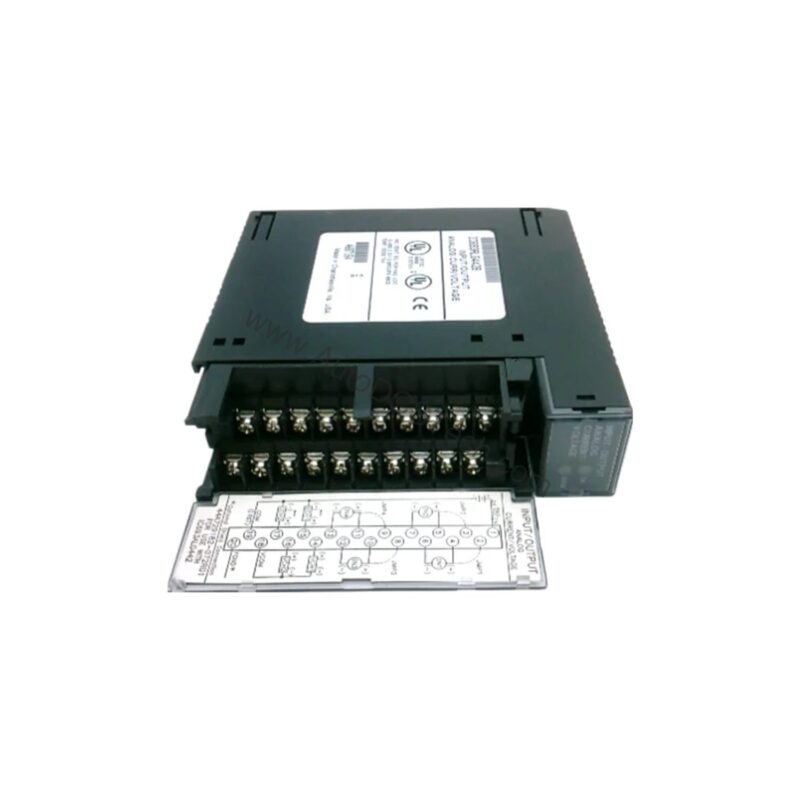

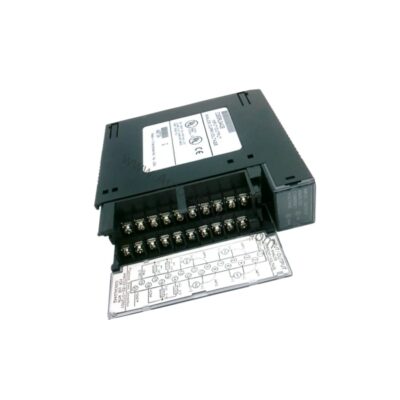

IC693ALG442: Analog Current/Voltage Combination Module
The IC693ALG442 is the Analog Current/Voltage Combination Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 0-10 Volts, -10 to 10 Volts.
On this unit analog current/voltage combination module is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. analog current/voltage combination module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0-10 Volts, -10 to 10 Volts against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693ALG442 |
| Series | Series 90-30 |
| Part Number | IC693ALG442 |
| Product Type | Analog Current/Voltage Combination Module |
| Input Channels | 4 differential |
| Input Range | 0-10 Volts, -10 to 10 Volts |
| Input Impedance | 800 K Ohms |
| Output Channels | 2, single-ended |
| Output Current Range | 0-20 mA, 4-20 mA |
| Accuracy | 0.25% at 25 degree Celsius |
| Update Rate | 8 milliseconds |
| External Supply Voltage | 20 to 30 VDC (24 VDC typical) |
This part belongs to a discontinued platform (GE Series 90-30), superseded by PACSystems RX3i (IC695 series). We stock remaining new and refurbished units.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic693alg223-series-90-30-analog-current-input-module | confirm the configuration against your installation |
| ge-fanuc-ic693alg392-analog-output-module-for-series-90-30 | confirm the configuration against your installation |
| ge-fanuc-ic693alg220-series-90-30-analog-input-module-overview | confirm the configuration against your installation |
| ge-fanuc-ic693alg221-series-90-30-analog-current-input-module-4-channel | confirm the configuration against your installation |
| ge-fanuc-ic693alg222-analog-voltage-input-module-series-90-30-16-channels | confirm the configuration against your installation |
| ge-fanuc-ic693alg390-series-90-30-analog-voltage-output-module | confirm the configuration against your installation |
| ge-ic693alg391-series-90-30-analog-output-module-2-channels | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693ALG442 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
