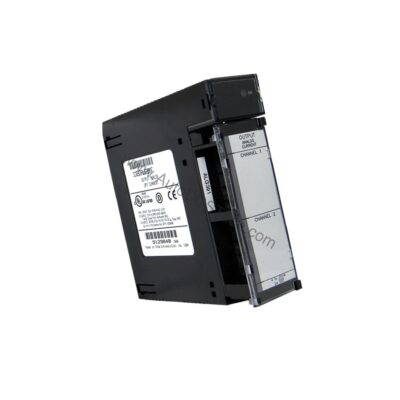

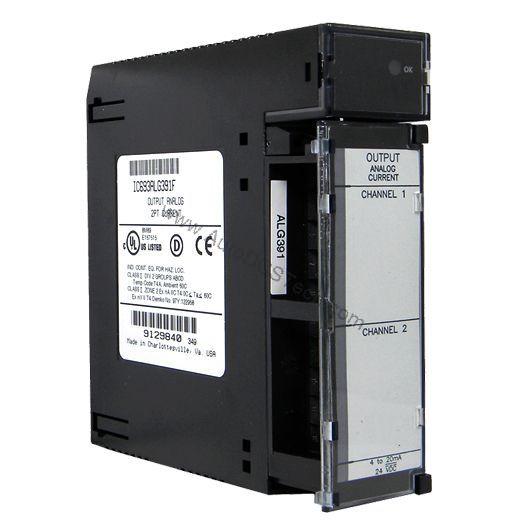

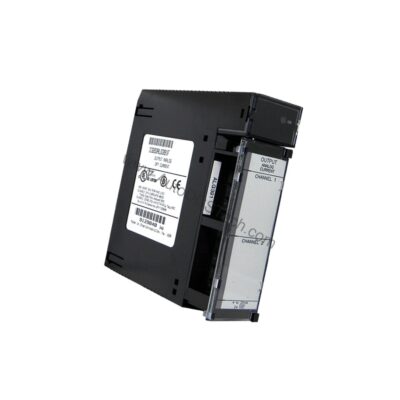

IC693ALG391: Analog Output Module
The IC693ALG391 is the Analog Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 2 channels.
On this unit analog output module is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. analog output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 2 channels against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693ALG391 |
| Series | Series 90-30 |
| Part Number | IC693ALG391 |
| Product Type | Analog Output Module |
| Channels | 2 |
| Output Signals | 0-20 mA / 4-20 mA |
| Resolution | 12 bits typical |
| Update Rate | 5 ms |
| Isolation | 1500 VAC |
| Current Draw | 30 mA @ 5 VDC, 215 mA @ 24 VDC |
| Supply Voltage | 20-30 VDC |
| Status Indicators | Module OK |
| Module Width | 1-slot |
| Lifecycle | Discontinued/Obsolete. |
Datasheet & Downloads
Specification sheet for IC693ALG391. For lead time, condition and price, contact our team.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic693alg392-analog-output-module-for-series-90-30 | confirm the configuration against your installation |
| ge-fanuc-ic693alg390-series-90-30-analog-voltage-output-module | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693ALG391 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
