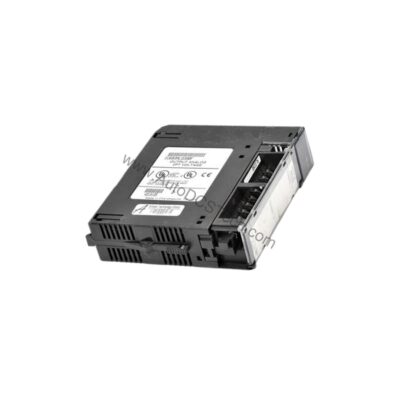

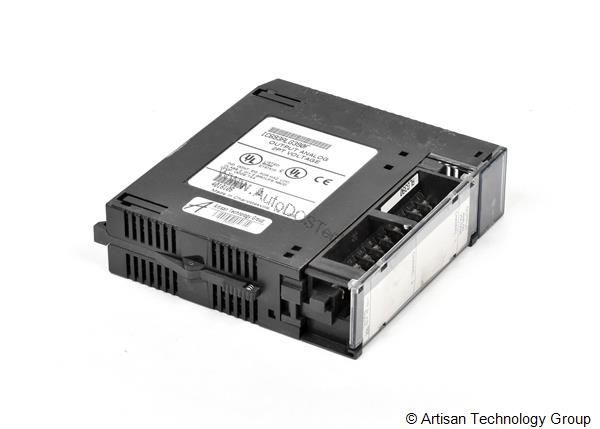

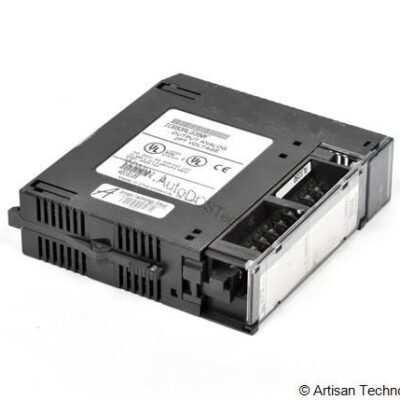

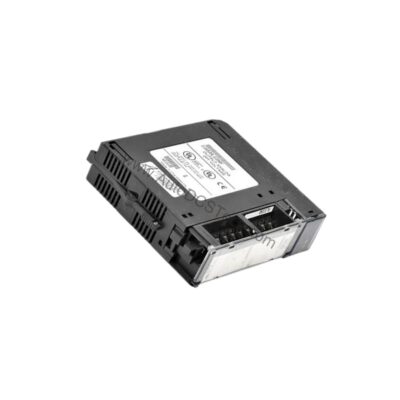

IC693ALG390: Series 90 30 Analog Voltage Output Module
The IC693ALG390 is the Series 90 30 Analog Voltage Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 2.5 mV.
On this unit series 90 30 analog voltage output module is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. series 90 30 analog voltage output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 2.5 mV against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693ALG390 |
| Output Type | Analog Voltage Output |
| Number of Channels | 2 |
| Output Voltage Range | -10 to +10 Volts |
| Resolution | 2.5 mV |
| Accuracy | ± 5 mV at 25 degrees Celsius |
| Update Rate | 5 ms all channels |
| Isolation | 1500 Volts RMS field to the logic side |
| External Supply Voltage Range | 18 to 30 VDC |
| Internal Power Consumption | 32 mA at 5 VDC, 120 mA User Supplied 24 VDC |
| Offset | 1 mV maximum, 0 to 60° C |
| Calibration | Factory calibrated to 2.5 mV per count |
| External Supply Voltage Ripple | 10% |
This part belongs to a discontinued platform (GE Series 90-30), superseded by PACSystems RX3i (IC695 series). We stock remaining new and refurbished units.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic693alg392-analog-output-module-for-series-90-30 | confirm the configuration against your installation |
| ge-ic693alg391-series-90-30-analog-output-module-2-channels | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693ALG390 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
