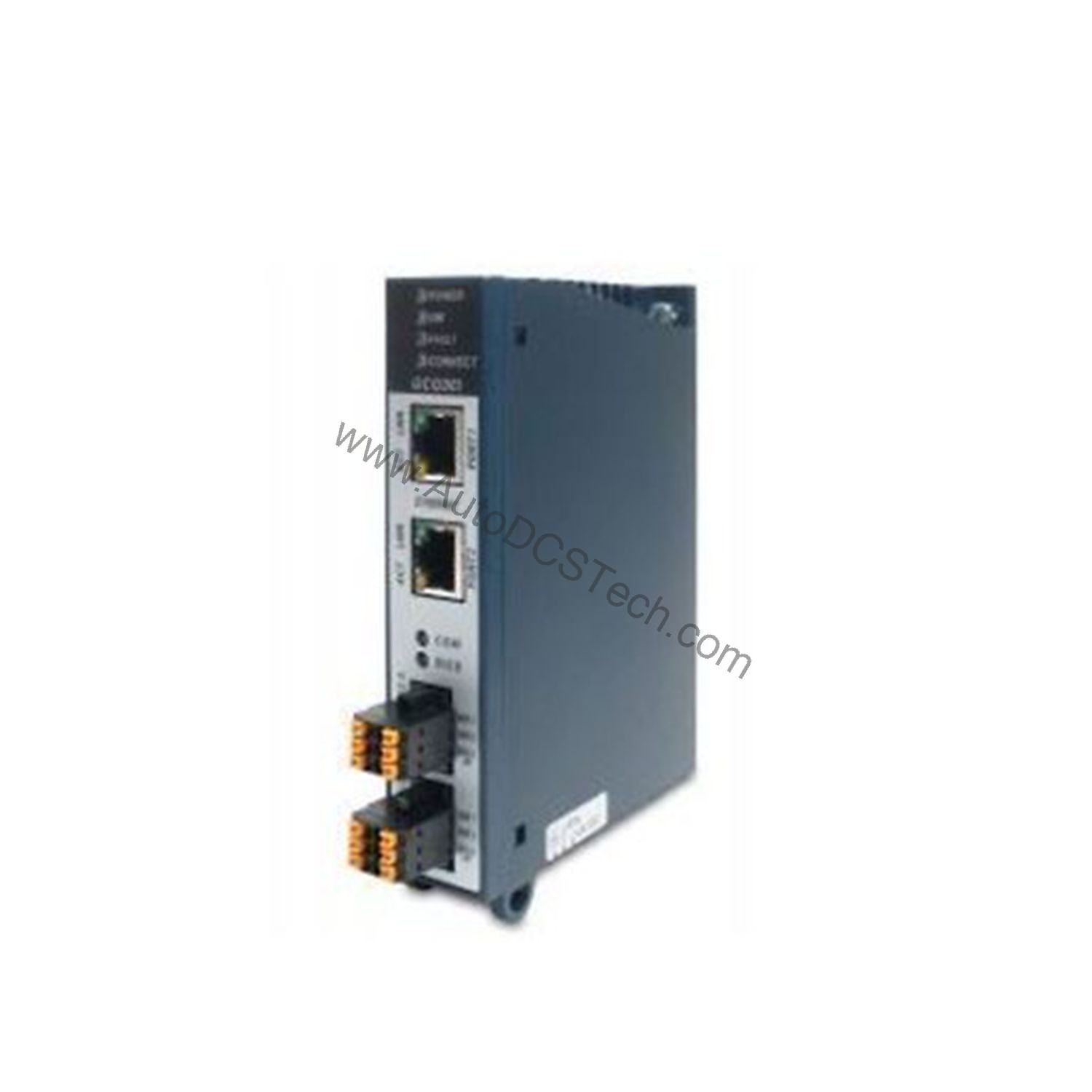

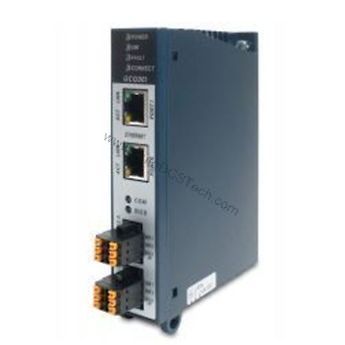

Technical Specifications Breakdown
Key parameters for the IC695EIS001 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Brand | GE Fanuc |
| Series | RX3i PacSystem |
| Part Number | IC695EIS001 |
| Product Type | IEC 104 server module |
| Ethernet | 2 x 10/100 Mbps |
| Serial RS-232 | Yes |
| Serial Data Rates | 1200 to 115200 bps |
| Power Requirement | 0.840 Amps at 3.3 Volts DC |
| Hot-swappable | Yes |
Industry Applications for the IEC 104 Server Module
It supports up to 8 connections to the RX3i controller data set, handling 6144 points per module. A maximum of 4 IC695EIS001 modules can be installed per RX3i CPU, supporting up to 4 IEC 104 clients. The two auto-sensing 10/100 Ethernet ports support line, star, and daisy-chain topologies without external transceivers, reducing hardware costs.
Installation and Setup Guidance
Mount the module in any RX3i rack slot; it is hot-swappable, allowing replacement without powering down the system. Connect the RS-232 station manager interface at data rates from 1200 to 115200 bps for local configuration. Use the two Ethernet ports to connect to your TCP/IP network; the ports auto-negotiate speed and duplex. Configure the IEC 104 server settings in the RX3i CPU to define the data set, RBE, interrogation for regulated step, single point, and double point data, and the 56-bit time format.
Maintenance and Reliability
Periodically inspect the module for dust accumulation on the Ethernet and serial ports. Ensure ambient temperature stays within the RX3i system's specified range (not provided here, but consult the rack manual). Since the module is hot-swappable, you can replace it without interrupting operations, minimizing downtime. No specific cleaning agents are required; use dry compressed air for external cleaning.
Compatibility and Integration
The IC695EIS001 is designed exclusively for GE Fanuc RX3i PacSystems devices. It integrates with the RX3i CPU via the backplane, requiring 0.840 Amps at 3.3 Volts DC. The module supports one IEC 104 sector per unit, and up to 4 modules per CPU. It works with any IEC 104 client devices on the network, making it a flexible addition to existing SCADA systems.
Selection Guide and Purchasing Advice
When ordering the IC695EIS001, verify that your RX3i CPU firmware supports this module. AutoDCSTech stocks this part and can assist with lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Contact our team for bulk pricing or expedited shipping options.
Availability & Condition at AutoDCSTech
| Part Number | IC695EIS001 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
