Product Overview

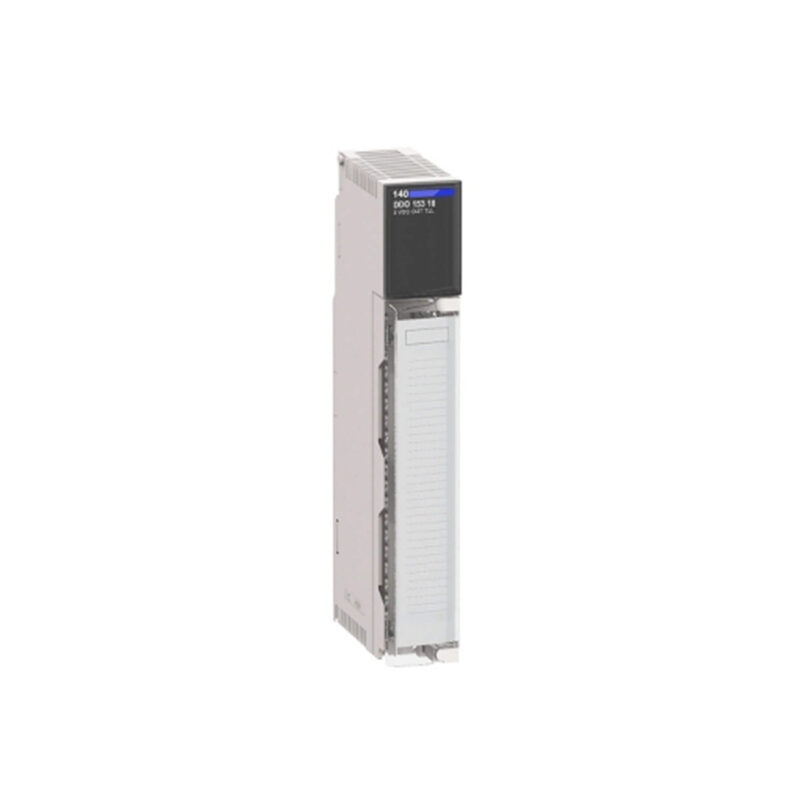

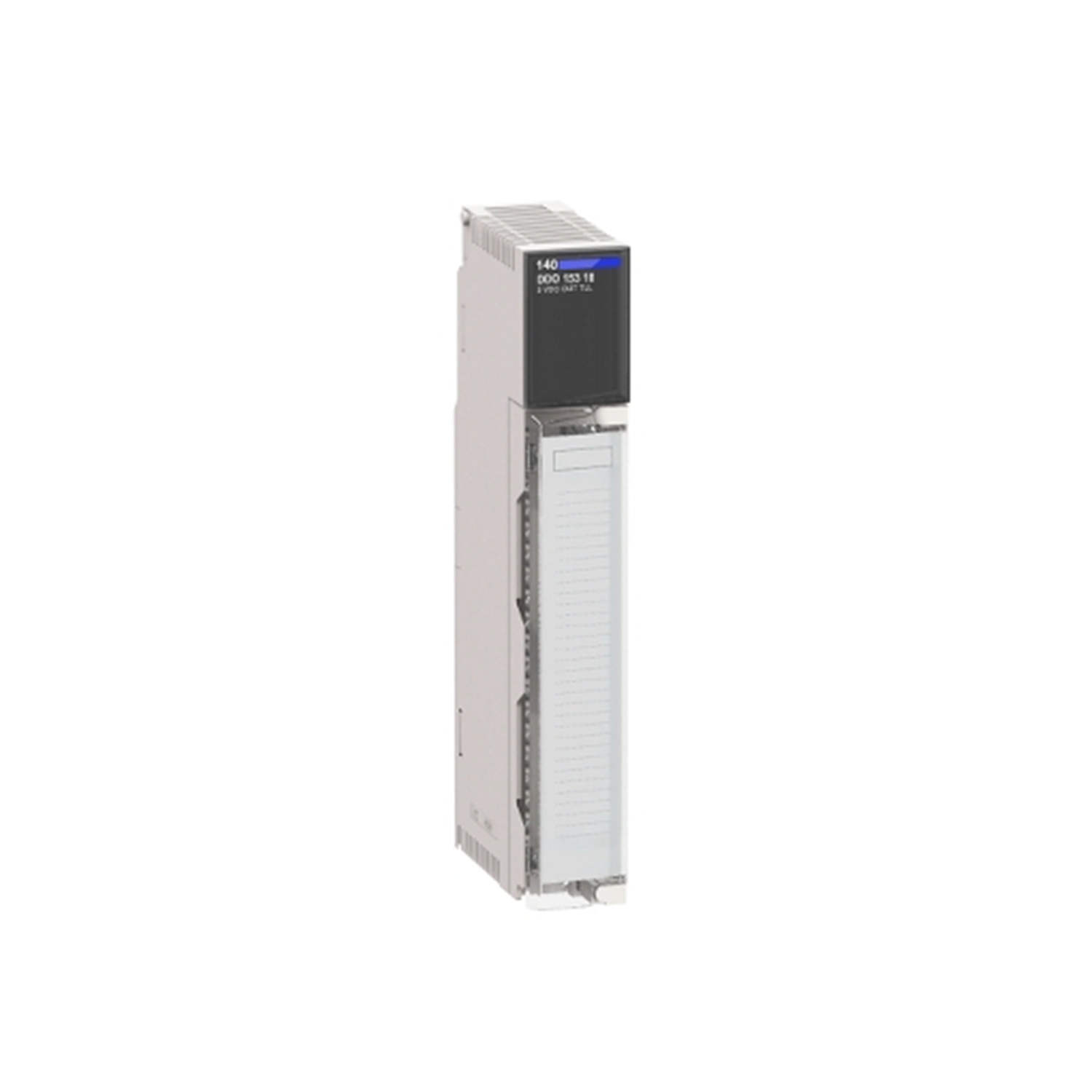

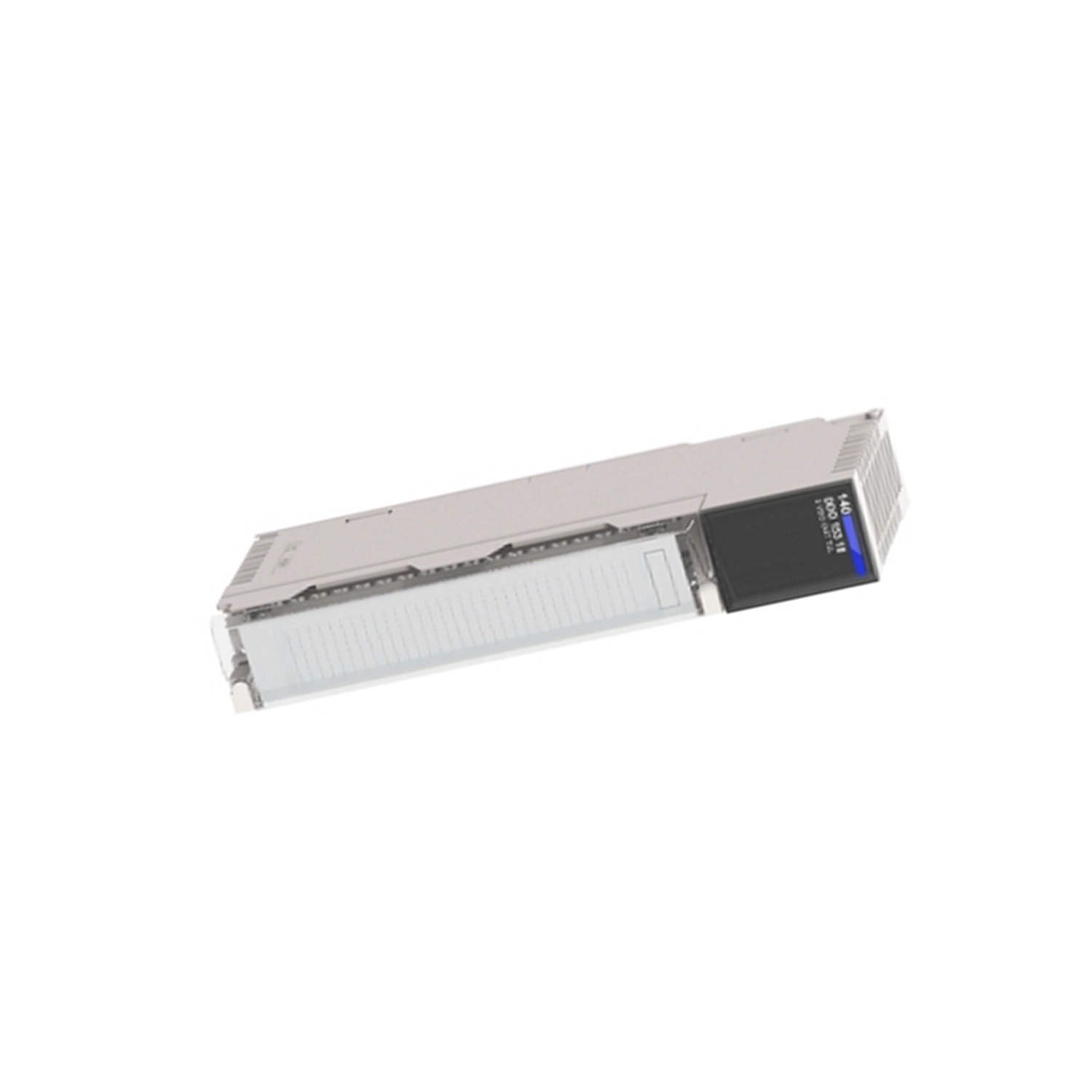

Industrial automation has evolved from simple relay panels to sophisticated programmable logic controllers (PLCs) that manage entire production lines. The Schneider Electric 140DDO35310C discrete output module from the Modicon Quantum series is a key component in this evolution, offering 32 output channels with negative logic (sink) at 24 V DC. Designed for demanding environments, this module provides reliable switching for actuators, indicators, and other field devices, ensuring consistent performance in your control system.
Technical Specifications Breakdown
Key parameters for the 140DDO35310C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Discrete Output Module |
| Product Line | Modicon Quantum |
| Part Number | 140DDO35310C |
| Output Channels | 32 |
| Output Type | Negative logic (sink) |
| Addressing Requirement | 2 output words |
| Output Voltage | 24 V DC |
| Maximum Leakage Current | 0.4 mA |
| Surge Current | 5 A |
| Power Dissipation | 2.0 W + (0.4 V x total load current) |
| Marking | CE |
| Format | Standard |
| Bus Current Requirement | 330 mA |
| Ambient Temperature | 0 to 60 °C |
| Standards | UL 508, CSA |
| Protective Treatment | Conformal coating |
Industry Applications
This module excels in discrete manufacturing and process control applications. For example, in a packaging line, the 32 channels can control multiple solenoid valves and conveyor motors simultaneously. The negative logic (sink) configuration simplifies wiring with common positive DC bus systems. In water treatment plants, the module's conformal coating protects against humidity and corrosive gases, ensuring long-term reliability. The surge current rating of 5 A handles transient loads from inductive devices like relays and contactors.
Installation & Setup Guidance
When installing the module, ensure the Quantum backplane is powered off. Insert the module into any standard slot and secure it with the locking mechanism. Address the module as 2 output words in your control logic. Verify that the bus current requirement of 330 mA is within your power supply capacity. Connect field wiring to the terminal block, observing polarity for 24 V DC sink outputs. Use fuses rated per group (5 A) as specified in the detailed documentation.
Maintenance & Reliability
Periodically inspect the module for dust accumulation and ensure adequate airflow within the enclosure. The conformal coating provides protection against moisture and mild chemical exposure, but avoid direct contact with solvents. Check LED indicators: green Active LED for bus communication, red Fault LED for external faults, and 32 green LEDs for output status. Replace blown fuses only with the specified ratings.
Compatibility & Integration
The module integrates seamlessly with the Modicon Quantum automation platform. It communicates via the Quantum backplane, requiring no additional protocols. The 24 V DC output voltage is compatible with most industrial sensors and actuators. The module meets UL 508 and CSA standards, ensuring compliance in North American installations.
Selection Guide & Purchasing Advice
For reliable operation, verify that your system's ambient temperature stays within 0 to 60 °C. The standard format fits all Quantum racks. Contact SpareTechPLC for current lifecycle status and availability before ordering. Our team can help confirm compatibility with your existing Quantum system.
Troubleshooting & Common Issues
If the module does not power up, check the backplane connection and bus current supply. A red Fault LED indicates loss of field power or a blown fuse. Use the 32 green output LEDs to verify individual channel status. If outputs do not switch, measure the output voltage at the terminal; it should be 24 V DC when active. For persistent issues, inspect the load wiring for shorts or overloads.
