Facing Unreliable Discrete Output Control in Your Automation Line?
Industrial automation engineers often struggle with output modules that fail under harsh conditions, causing costly downtime. The Schneider Electric 140DVO85300C discrete output module, part of the Modicon Quantum series, delivers robust performance with 32 channels using negative logic (sink) for precise control. This component integrates short-circuit and overvoltage protection, ensuring stable operation in demanding environments.
Product Overview

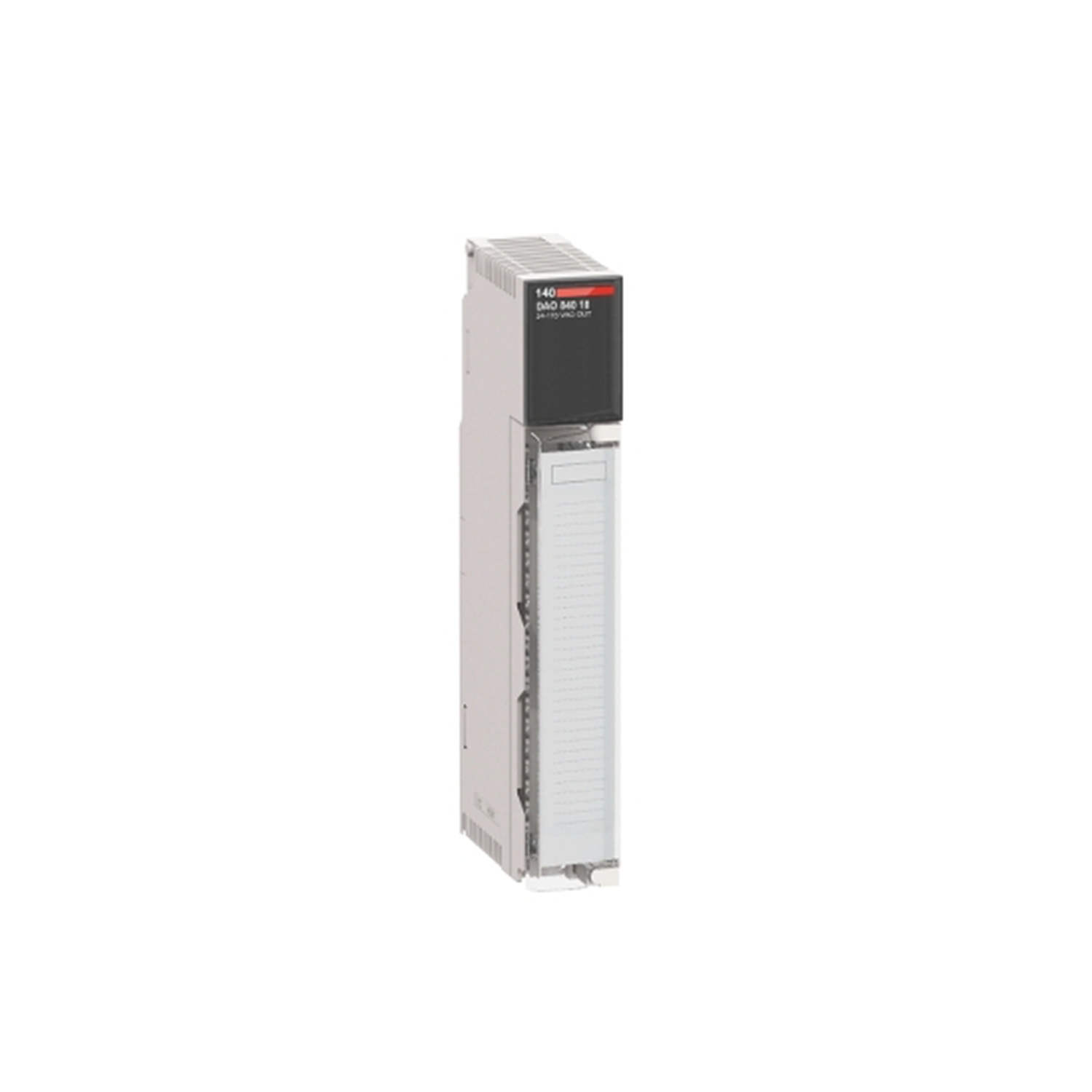

The 140DVO85300C is a discrete output module designed for Modicon Quantum automation platforms. It provides 32 individual output channels operating on negative logic (sink), making it ideal for controlling actuators, relays, and indicators in industrial processes. With a bus current requirement of 500 mA and an output voltage range of 10 to 30 VDC, this module suits a variety of low-voltage DC applications.
Technical Specifications Breakdown
Key parameters for the 140DVO85300C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Discrete Output Module |
| Product Line | Modicon Quantum |
| Part Number | 140DVO85300C |
| Output Channels | 32 |
| Output Type | Negative logic (sink) |
| Addressing Requirement | 2 output words, 2 input words |
| Output Voltage | 10 to 30 VDC |
| Short-Circuit Protection | Yes |
| Surge Current | 2.5 A |
| Overvoltage Protection | Yes |
| Bus Current Requirement | 500 mA |
| Ambient Temperature | 0 to 60 °C |
| Standards | UL 508, CSA |
| Protective Treatment | Conformal coating |
| Marking | CE |
| Format | Standard |
Industry Applications
This module excels in discrete manufacturing lines where 32 outputs control solenoids, motor starters, or indicator lights. The negative logic (sink) configuration simplifies wiring with common positive DC buses, reducing installation errors. With overvoltage and short-circuit protection, the 140DVO85300C minimizes failure risks in high-vibration or electrically noisy environments, lowering total cost of ownership.
Installation & Setup Guidance
Mount the module in a standard Quantum rack, ensuring proper backplane connection. Address it using 2 output words and 2 input words as per the control system mapping. Verify the bus current supply meets the 500 mA requirement. Connect loads within the 10 to 30 VDC range, respecting polarity for sink logic. Use twisted-pair wiring for signal integrity.
Maintenance & Reliability
The conformal coating protects against moisture and dust, extending service life in harsh settings. Inspect the module periodically for signs of contamination or physical damage. Operate within the 0 to 60 °C ambient temperature range to ensure reliable performance. No internal adjustments are needed.
Compatibility & Integration
The 140DVO85300C integrates seamlessly with Modicon Quantum controllers and backplanes. It communicates via the standard Quantum bus, requiring no special adapters. The module is compatible with Schneider Electric programming software for configuration.
Selection Guide & Purchasing Advice
When selecting a discrete output module, consider channel count and logic type. The 140DVO85300C offers 32 sink outputs with robust protection features. SpareTechPLC stocks this module and can advise on availability and lifecycle status. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
If outputs fail to energize, check the bus current supply (500 mA required) and verify the addressing configuration (2 output words, 2 input words). Confirm the load voltage is within 10 to 30 VDC. If short-circuit protection activates, inspect wiring for faults. The module's overvoltage protection guards against transient spikes.
