Industrial Automation Evolution and the Role of Discrete Input Modules
In the relentless march toward Industry 4.0, the backbone of factory automation remains the reliable capture of discrete signals. From simple limit switches to complex sensor arrays, the ability to accurately read on/off states is fundamental. The Schneider Electric 140DAI35300C discrete input module from the Modicon Quantum series addresses this need with proven engineering, offering a robust solution for demanding environments.
Product Overview

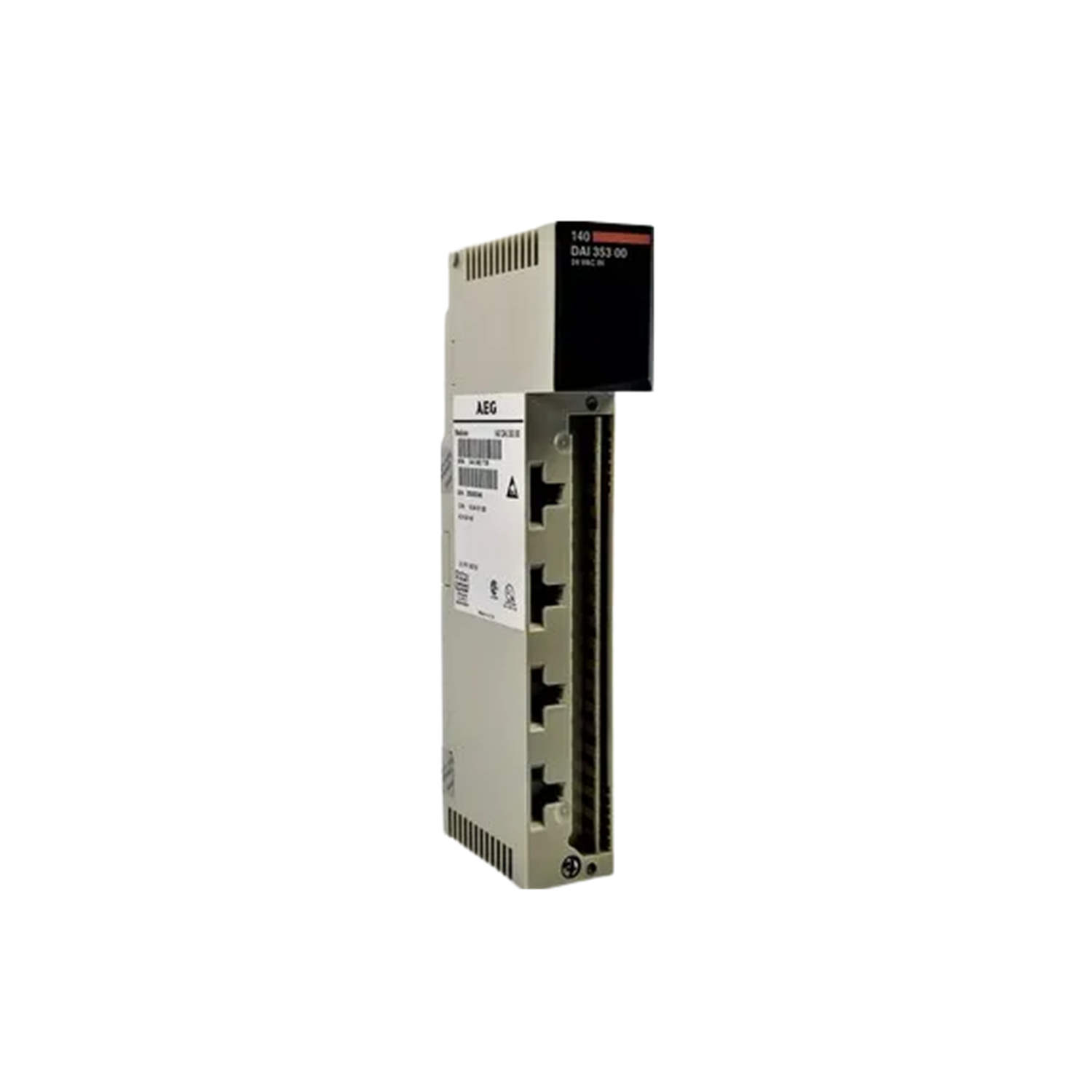

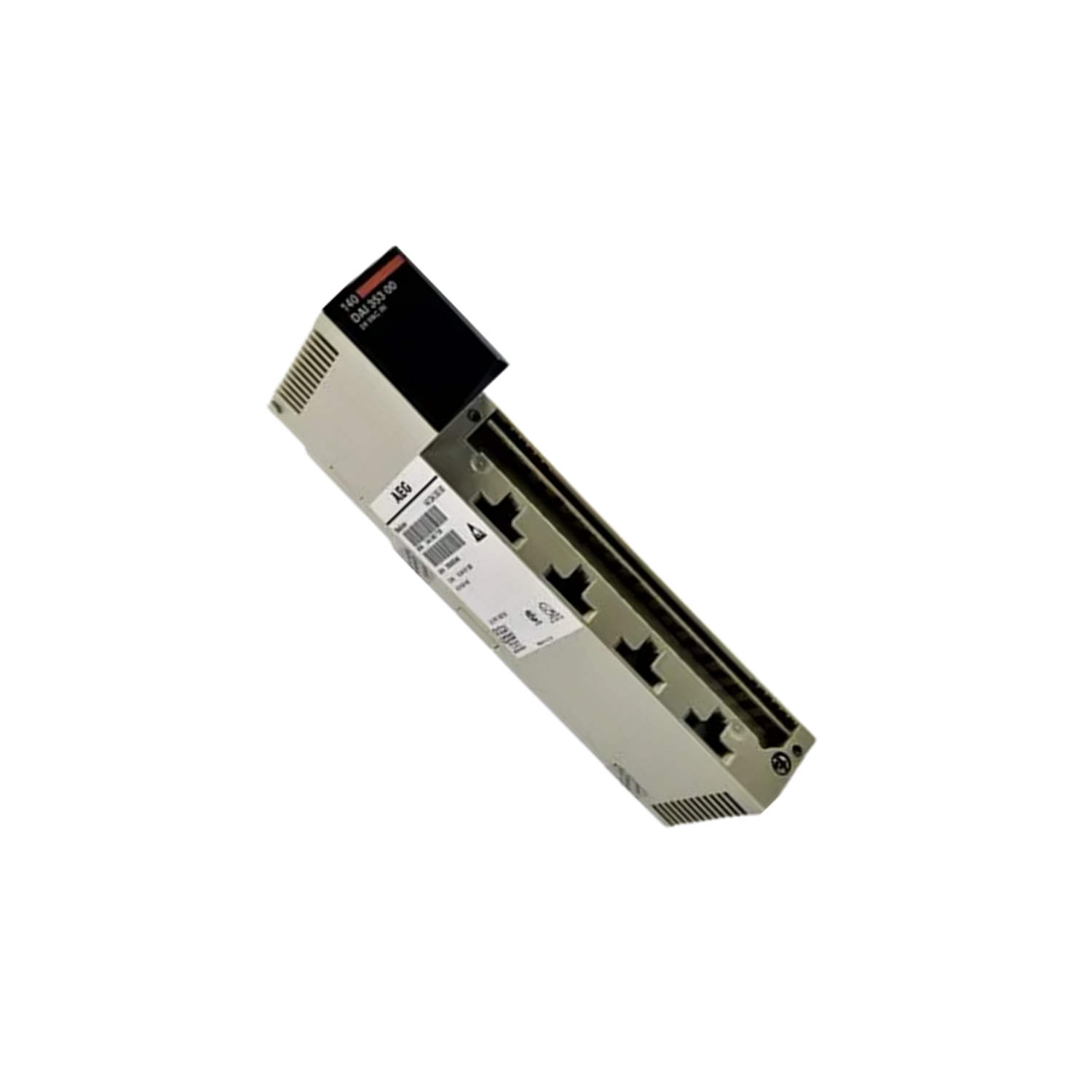

The 140DAI35300C is a discrete input module designed for the Modicon Quantum automation platform. It provides 32 input channels, each accepting a nominal 24 V AC signal. This module is engineered for reliable data acquisition in manufacturing, process control, and infrastructure applications. Its standard format and CE marking ensure compliance with European directives, while UL 508 and CSA standards attest to its safety and quality for North American installations.
Technical Specifications Breakdown
Key parameters for the 140DAI35300C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Discrete input module |
| Product Line | Modicon Quantum |
| Part Number | 140DAI35300C |
| Input Channels | 32 |
| Input Voltage | 24 V AC |
| Addressing Requirement | 2 input words |
| Input Current | 11.1 to 13.2 mA |
| Max Leakage Current | 1.9 mA |
| Bus Current Requirement | 250 mA |
| Max Power Dissipation | 10.9 W |
| Marking | CE |
| Format | Standard |
| Ambient Temperature | 0 to 60 °C |
| Standards | UL 508, CSA |
Industry Applications
1. Manufacturing Line Monitoring
With 32 input channels, this module can monitor multiple sensors on a production line—detecting part presence, position, or limit states. The 24 V AC input voltage is common in industrial environments, simplifying integration with existing AC sensors. The low leakage current (max 1.9 mA) ensures accurate signal discrimination even with long cable runs.
2. Building Automation Systems
In HVAC and lighting control, the discrete input module reads status from contactors, relays, or pushbuttons. The 0 to 60 °C ambient temperature range allows installation in unconditioned spaces. The 250 mA bus current requirement is modest, enabling use in dense I/O racks without overloading the backplane.
3. Process Control Safety Interlocks
For applications requiring reliable state detection—such as emergency stop circuits or valve position feedback—the module's adherence to UL 508 and CSA standards provides confidence. The addressing requirement of 2 input words optimizes memory usage in the Quantum controller.
Installation & Setup Guidance
When installing the 140DAI35300C, ensure the Quantum rack is powered down. Insert the module into any available slot, ensuring proper alignment with the backplane connector. The module is keyed to prevent incorrect insertion. For wiring, use appropriate gauge wire for 24 V AC signals. Each input channel accepts a single AC line; common return wiring is typical. After installation, configure the addressing in the control software to match the 2 input word requirement. Verify input status using the module's LED indicators (if present) or software diagnostics.
Maintenance & Reliability
Routine inspection of the module and its connections is recommended every 6 to 12 months, depending on environmental conditions. Check for signs of corrosion, loose wiring, or dust accumulation. The module operates reliably in ambient temperatures from 0 to 60 °C. Ensure adequate airflow within the enclosure to prevent overheating. The max power dissipation of 10.9 W is modest, but proper ventilation extends component life.
Compatibility & Integration
The 140DAI35300C is designed for the Modicon Quantum platform. It integrates seamlessly with Quantum CPUs, power supplies, and other I/O modules. The 250 mA bus current requirement is drawn from the rack's backplane. No additional communication protocols are required for basic operation. For advanced diagnostics, consult the Quantum system manual.
Selection Guide & Purchasing Advice
When selecting a discrete input module, consider the number of channels, input voltage, and environmental ratings. The 140DAI35300C offers 32 channels at 24 V AC, suitable for many industrial applications. For assistance with lifecycle status or to place an order, contact SpareTechPLC. Our team can verify availability and provide competitive pricing. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
- No Input Signal Detected: Check wiring connections and sensor power. Verify the input voltage is within 24 V AC nominal range. Use a multimeter to measure signal at the module terminals.
- Erratic Readings: Inspect for loose connections or excessive leakage current. The max leakage current is 1.9 mA; higher values may indicate sensor degradation.
- Module Not Recognized: Ensure the module is fully seated in the rack and the backplane is powered. Verify addressing configuration in the software.
- Overheating: Confirm ambient temperature is within 0 to 60 °C. Improve enclosure ventilation if needed.
