Product Overview

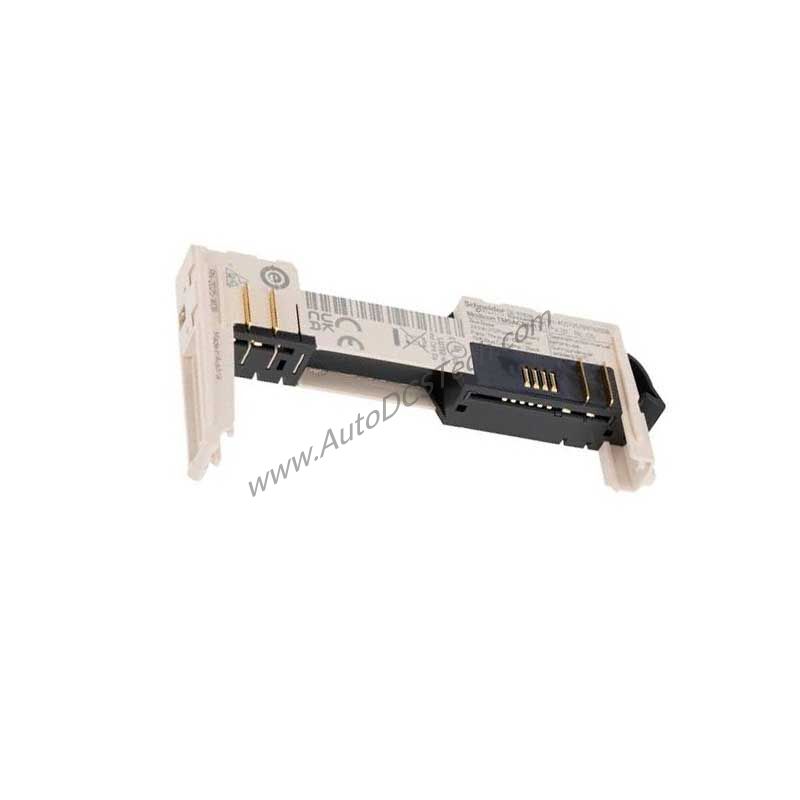

When building a modular automation system, reliable communication between components is critical. The Schneider TM5ACBM11 bus base provides a secure physical and electrical connection for Modicon TM5 modules. This accessory simplifies wiring and ensures stable data transfer in your control cabinet. With a compact design and 24V DC supply, it integrates seamlessly into existing setups.
Technical Specifications
The TM5ACBM11 operates on a rated supply voltage of 24V DC, matching standard industrial power supplies. Its white color aids visual identification during installation. Weighing only 0.02 kg, it adds minimal load to the DIN rail. The package dimensions are 1.700 cm height, 5.400 cm width, and 10.700 cm length, with a total package weight of 27.000 g. These specs confirm its space-saving footprint.
Industry Applications
In packaging lines, the TM5ACBM11 connects counter modules for precise product counting. For material handling, it links analog modules for sensor feedback. Its compatibility with remote transmitter modules makes it suitable for distributed I/O architectures. The 24V DC supply aligns with common industrial power standards, simplifying integration.
Installation & Setup Guidance
Mount the TM5ACBM11 on a standard DIN rail within the Modicon TM5 backplane. Ensure the 24V DC power supply is properly connected and rated for the system load. No special tools are required. Align the bus base with adjacent modules and lock it into place. Verify all connections before powering the system.
Maintenance & Reliability
Regular inspection of the bus base contacts and power connections helps prevent intermittent faults. Keep the area free of dust and moisture. The robust construction of the TM5ACBM11 supports long service life in typical industrial environments. Periodic checks ensure sustained performance.
Compatibility & Integration
The TM5ACBM11 is compatible with Modicon LMC058 and M258 controllers. It supports remote transmitter modules, counter modules, 24V DC slice discrete modules, common distribution modules, and analog modules. This broad compatibility makes it a versatile choice for expanding TM5 systems.
Selection Guide & Purchasing Advice
Before ordering, verify that your system uses Modicon TM5 series components and that the 24V DC supply is available. The TM5ACBM11 is sold individually. For current lifecycle status and availability, contact SpareTechPLC. We stock genuine Schneider parts for fast delivery.
Troubleshooting & Common Issues
If the bus base fails to communicate, check the 24V DC power supply voltage and polarity. Inspect the mechanical connection to adjacent modules. Loose mounting can cause intermittent faults. Ensure the bus base is correctly seated on the DIN rail. For persistent issues, consult the system manual.
