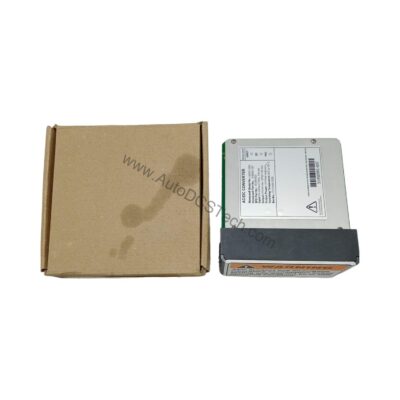

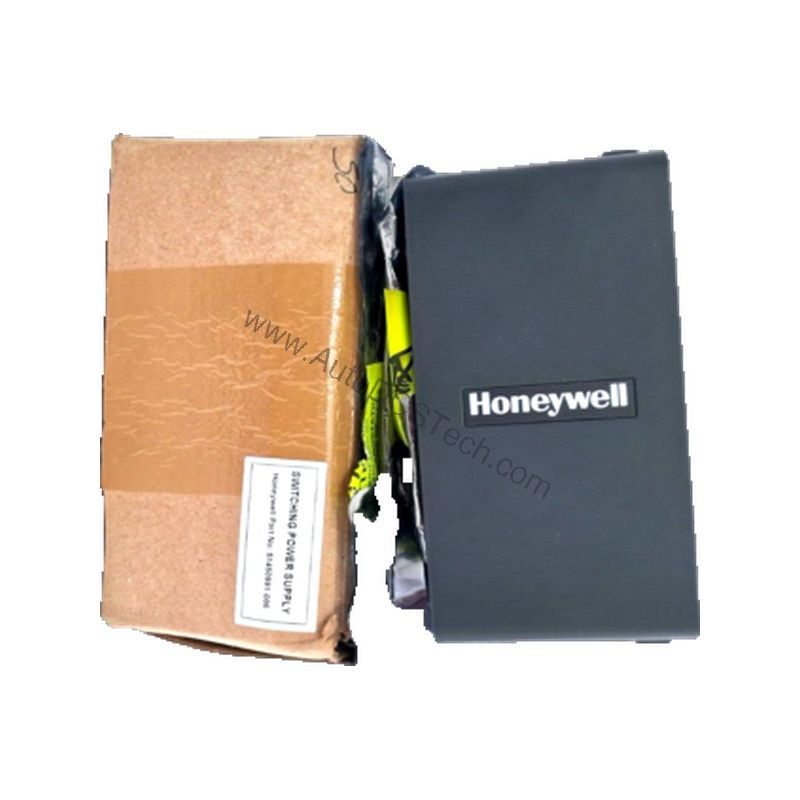

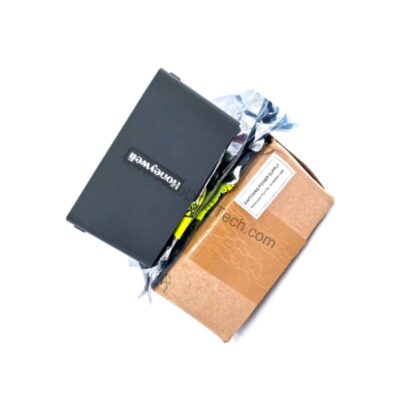

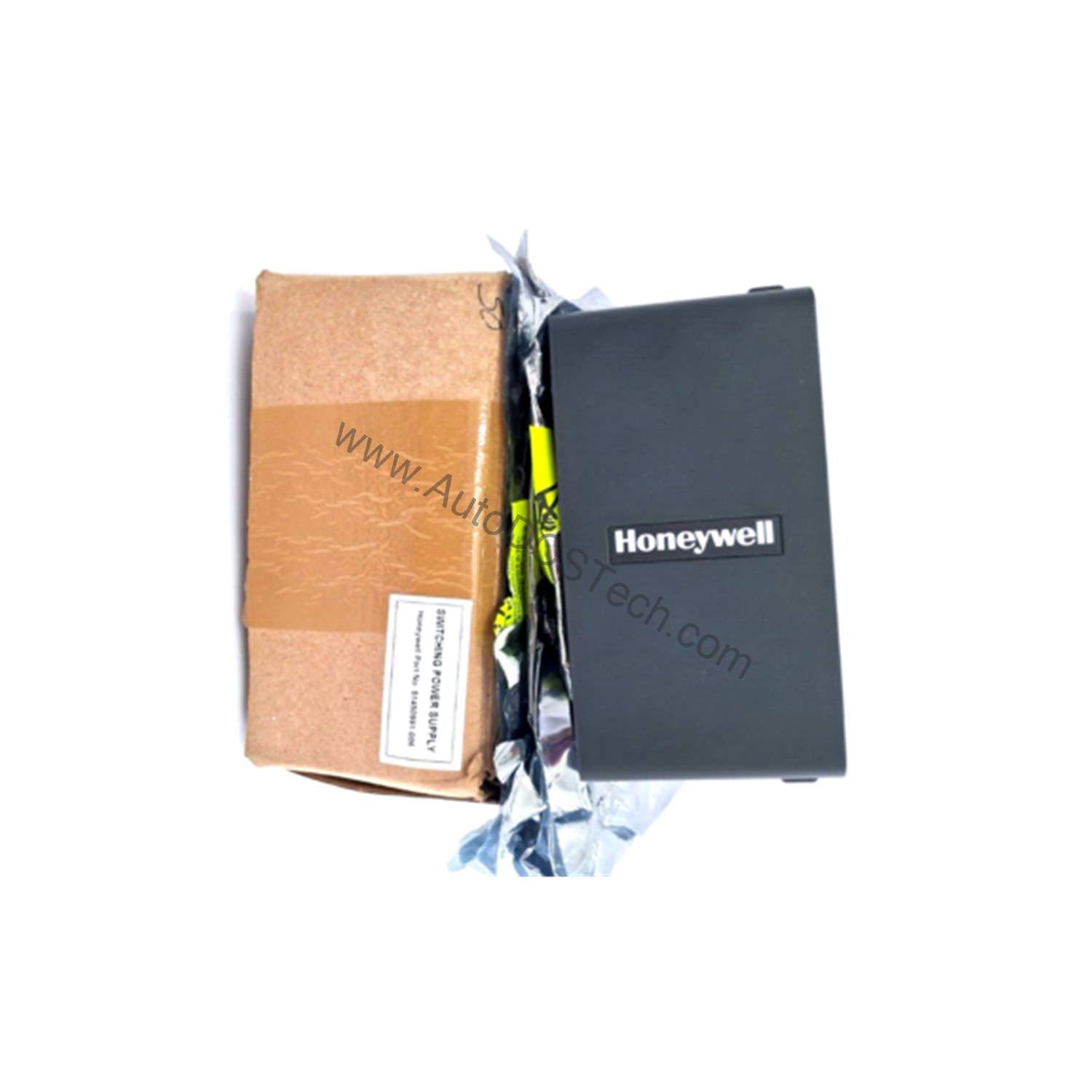

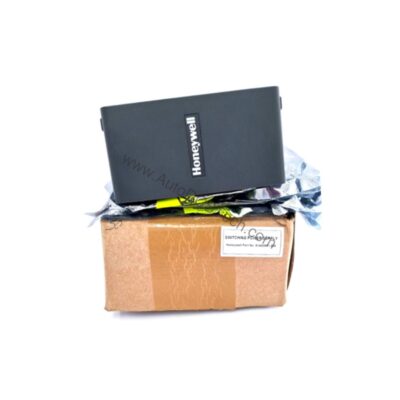

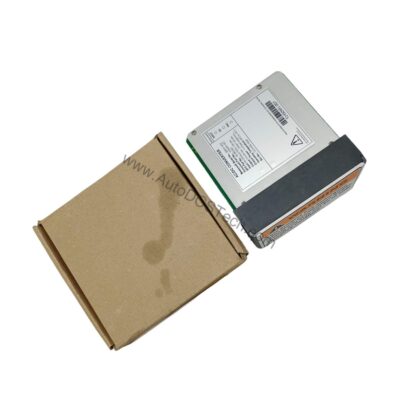

Honeywell 900P01-0701 120/240VAC Power Supply

Technical Specifications Breakdown

Key parameters for the 900P01-0701 are listed below for quick reference:

Industry Applications

This power supply suits a variety of industrial environments where reliable DC power is critical. Its wide input range (90 to 264 V AC) allows operation on both 120V and 240V systems, making it versatile for global installations. The 41W output can support small control panels, sensors, and low-power actuators. In process plants, the module can power a distributed control system (DCS) rack, ensuring that controllers and communication cards receive clean, regulated power. In manufacturing lines, it can serve as the power source for programmable logic controllers (PLCs) and operator interface terminals. The wide operating temperature range (-40°C to 70°C) enables deployment in unheated warehouses or outdoor enclosures, reducing the need for additional climate control.

Installation & Setup Guidance

When installing the Honeywell 900P01-0701, always disconnect the AC supply before making connections. Use screw terminals sized for 0.3 mm2 to 3.3 mm2 (#12-22AWG) wire. Ensure that the input voltage and frequency match your facility's supply (90-264VAC, 47-63 Hz). Connect the live and neutral wires to the appropriate terminals, observing polarity if marked. After wiring, double-check that all screws are tightened securely to prevent loose connections. Mount the unit in a location that allows adequate airflow and keeps the ambient temperature within the specified range. For optimal performance, keep the unit away from excessive vibration and moisture.

Maintenance & Reliability

Regular inspection helps maintain long-term reliability. Periodically check that the screw terminals remain tight and free from corrosion. Clean the exterior with a dry cloth to prevent dust accumulation. Verify that the ambient temperature stays within the -40°C to 70°C range. The internal fuse is non-replaceable; if the unit fails to power up, it may need replacement. Because the fuse is internal, do not attempt to open the unit. Instead, contact a qualified technician or AutoDCSTech for replacement options.

Reliable Power for Industrial Control Systems

Industrial control systems depend on stable power delivery to keep processors, I/O modules, and field devices operating without interruption. The Honeywell 900P01-0701 is a 120/240VAC power supply engineered to convert a wide range of AC line voltages into the DC levels your system needs. With a compact design and robust specifications, this power supply is a practical choice for upgrading or replacing units in existing Honeywell-based installations.

Compatibility & Integration

The 900P01-0701 is designed for Honeywell control systems, but its standard AC input and DC output make it compatible with many industrial applications. The test jacks provide 5 V DC and 24 V DC reference points, useful for verifying output voltages during commissioning. When integrating with existing systems, confirm that the output power (41W) meets the total load requirements of your devices. If you are replacing a failed unit, compare the wiring configuration and output ratings to ensure a seamless swap.

Selection Guide & Purchasing Advice

When selecting a replacement power supply, verify that the input voltage range, output power, and physical dimensions match your application. The Honeywell 900P01-0701 offers a wide input range and a robust temperature rating, making it a solid choice for harsh environments. AutoDCSTech provides genuine industrial automation parts, including this power supply. Contact AutoDCSTech to confirm availability and current lifecycle status before ordering. Our team can help you find the right part for your system.

Troubleshooting & Common Issues

If the power supply does not output the expected voltage, first check the input voltage at the terminals. Ensure that the AC supply is within 90-264 V AC and frequency is 47-63 Hz. Verify that the load does not exceed 41W. If the unit is warm, allow it to cool and check ambient temperature. If the output is still absent, the internal fuse may be blown. Since the fuse is non-replaceable, the unit will need to be replaced. Always follow proper lockout/tagout procedures before servicing any electrical equipment.
