Introduction: Solving Vibration Monitoring Challenges

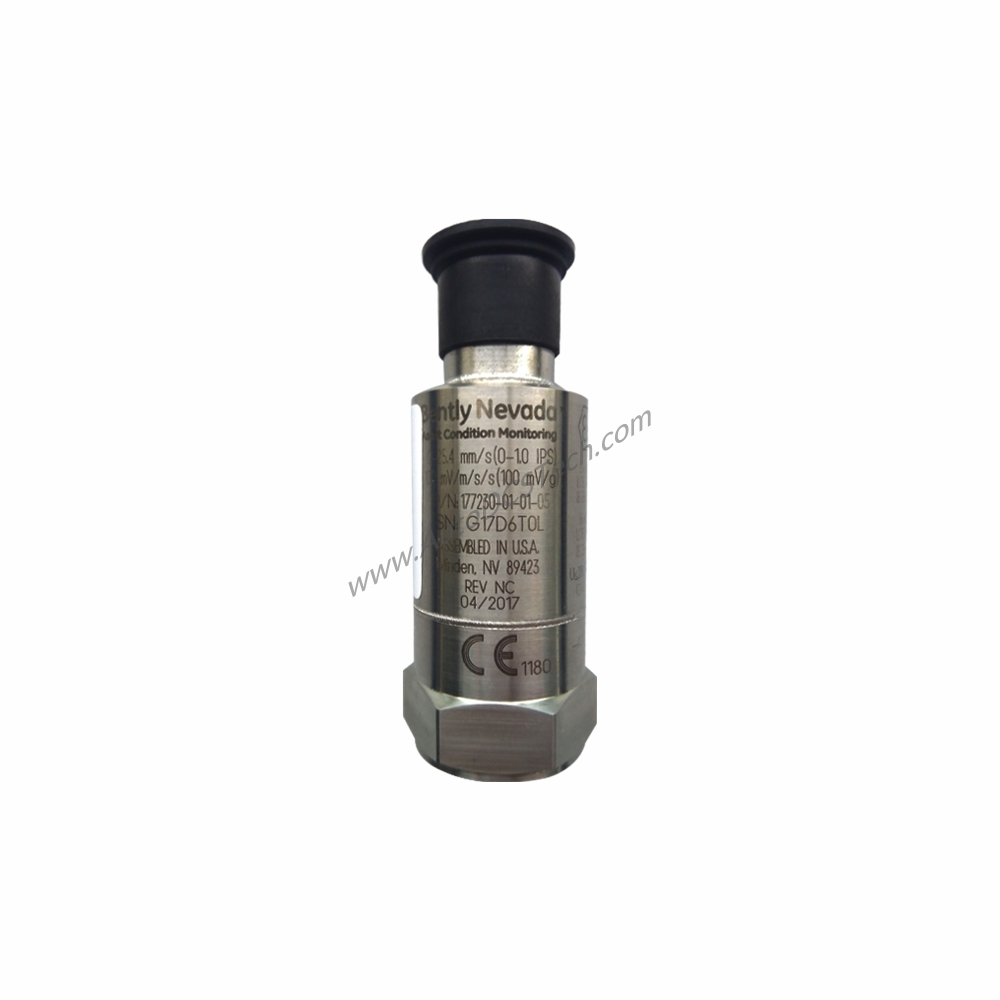

When unplanned machinery downtime strikes, the root cause often traces back to undetected vibration. The Bently Nevada 177230-00-02-05 Seismic Transmitter directly addresses this pain point by converting vibration into a reliable 4 to 20 mA current loop signal. This allows continuous monitoring without guesswork, helping maintenance teams catch issues early.
Technical Specifications Breakdown
Understanding key parameters ensures correct application. The 177230-00-02-05 operates with an excitation voltage of 12 to 30 Vdc, current limited to 40 mA. Its full scale range is 0 – 12.7 mm/s (0 – 0.5 in/s) ± 10%, with a frequency response of 3 Hz to 1 kHz ± 10%. The main loop sensitivity is calibrated so that 4 ± 0.3 mA equals 0.0 mm/s and 20 ± 2 mA equals full scale range. These specs make it suitable for precise peak vibration level monitoring.
Industry Applications
In rotating machinery like pumps, fans, and compressors, the 177230-00-02-05 provides early warning of bearing wear or imbalance. Its hermetically sealed sensor and 316L stainless steel case withstand harsh environments, including 100% non-submerged humidity. The transmitter integrates directly into PLC, DCS, and SCADA systems, enabling automated alerts and trend analysis. This reduces unplanned downtime and extends equipment life.
Installation & Setup Guidance
Mount the transmitter using the 1/4-28 UNF hole or M6 x 1 SI / M8 x 1.25 SI threads. Apply a mounting torque of 4 to 7 N-m (35.4 to 62.0 in-lbf). Connect Pin A to the 4-20 mA positive loop and Pin B to the loop return. Pin C provides an unbuffered dynamic acceleration signal referenced to Pin B. Allow less than 15 seconds settling time within 2% of final value after power-up.
Maintenance & Reliability
The 177230-00-02-05 requires minimal routine care due to its rugged construction. Its operating temperature range of -40°C to +85°C (-40°F to +185°F) and shock survivability up to 9.810 m/s² (1.000 g peak) drop test ensure reliable performance in demanding conditions. Periodic verification of the 4-20 mA loop and visual inspection of the connector and cable integrity are recommended to maintain accuracy.
Compatibility & Integration
This seismic transmitter is designed for use with PLCs, DCS, and SCADA systems that have internal power supplies typically current limited to 30 mA to 35 mA. The 4-20 mA output simplifies wiring and is universally accepted by most industrial controllers. The 3-pin MIL-C-5015 connector ensures a secure, corrosion-resistant connection.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system's power supply can deliver 12 to 30 Vdc with current limiting to 40 mA. The 177230-00-02-05 includes multiple approvals (CSA/NRTL/C, ATEX/IECEx). Contact SpareTechPLC for current availability and lifecycle status. Our team can help confirm compatibility with your existing setup.
Frequently Asked Questions
Q: What is the output signal of the 177230-00-02-05?
A: It provides a 4 to 20 mA current loop from Pin A to Pin B, proportional to peak vibration levels.
Q: What is the frequency response range?
A: The frequency response is 3 Hz to 1 kHz ± 10% (180 cpm to 60 kcpm ± 10%).
Q: Can this transmitter be used in high-humidity environments?
A: Yes, it is rated for relative humidity up to 100% non-submerged.
Q: What mounting options are available?
A: It features a 1/4-28 UNF mounting hole and also supports M6 x 1 SI and M8 x 1.25 SI threads.
Q: Is the sensor hermetically sealed?
A: Yes, the sensor seal is hermetically sealed for protection against moisture and contaminants.
Please verify current lifecycle status and availability with SpareTechPLC before ordering.
