Product Overview

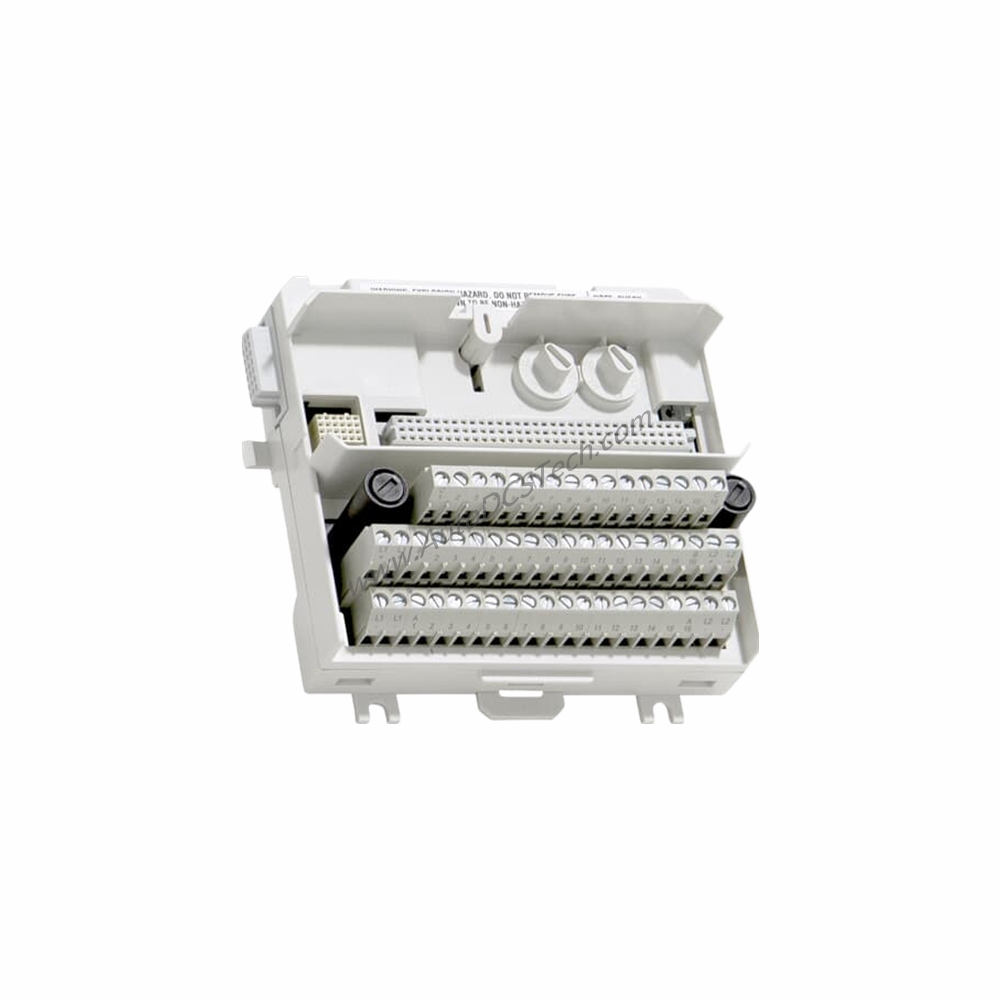

When field wiring complexity threatens system reliability, the ABB TU830V1 Extended Module Termination Unit (MTU) provides a structured solution. This passive unit connects field wiring to I/O modules while distributing the ModuleBus. With up to 16 I/O channels and two process voltage connections, it simplifies installation in demanding industrial environments.
Technical Specifications Breakdown
The TU830V1 handles a maximum voltage of 50 V and delivers up to 2 A per I/O channel. Each of the two individually isolated process voltage groups includes a 6.3 A fuse for protection. The unit accepts solid wires from 0.2 to 4 mm² and stranded wires from 0.2 to 2.5 mm² (24-12 AWG), with a recommended torque of 0.5-0.6 Nm and a stripping length of 7 mm. Dielectric test voltage is 500 V a.c., ensuring robust insulation.
Industry Applications
In process control systems, the TU830V1 organizes field signals for analog and digital I/O modules like AI810, DI810, and DO810. Its mechanical keying prevents incorrect module insertion, reducing downtime. For redundant setups, the single I/O design supports critical loops where reliability is paramount.
Installation & Setup Guidance
Mount the TU830V1 on a DIN rail using the latching device for grounding. Connect field wiring to the terminal block with proper torque (0.5-0.6 Nm) and stripping length (7 mm). Ensure ambient temperature stays between 0 and +55 °C (+32 to +131 °F) for optimal performance.
Maintenance & Reliability
Routine inspection of fuses and connections ensures long-term reliability. The unit operates in environments up to 55 °C and relative humidity of 5 to 95% non-condensing. Corrosion protection meets ISA-S71.04 G3, making it suitable for harsh conditions.
Compatibility & Integration
The TU830V1 works with ABB I/O modules including AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820, and DP840. It supports single I/O configurations and both mounting directions.
Selection Guide & Purchasing Advice
Before ordering the ABB TU830V1, verify compatibility with your I/O modules and confirm the required voltage (50 V max) and current (2 A per channel). SpareTechPLC offers this unit with full specifications and support. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
What is the maximum current per channel on the TU830V1?
The maximum current per I/O channel is 2 A, with a total process connection current of 5 A.
Can the TU830V1 be used with redundant I/O modules?
The TU830V1 supports single I/O configurations only, not redundant setups.
What wire sizes are acceptable for the TU830V1?
Solid wires from 0.2 to 4 mm² and stranded wires from 0.2 to 2.5 mm² (24-12 AWG) are acceptable.
What is the operating temperature range for the TU830V1?
The operating temperature range is 0 to +55 °C (+32 to +131 °F), with approvals issued for +5 to +55 °C.
Does the TU830V1 include hazardous location certifications?
Yes, it carries C1 Div 2 cULus, C1 Zone 2 cULus, and ATEX Zone 2 certifications.
