The Evolution of Discrete Output Control in Industrial Automation

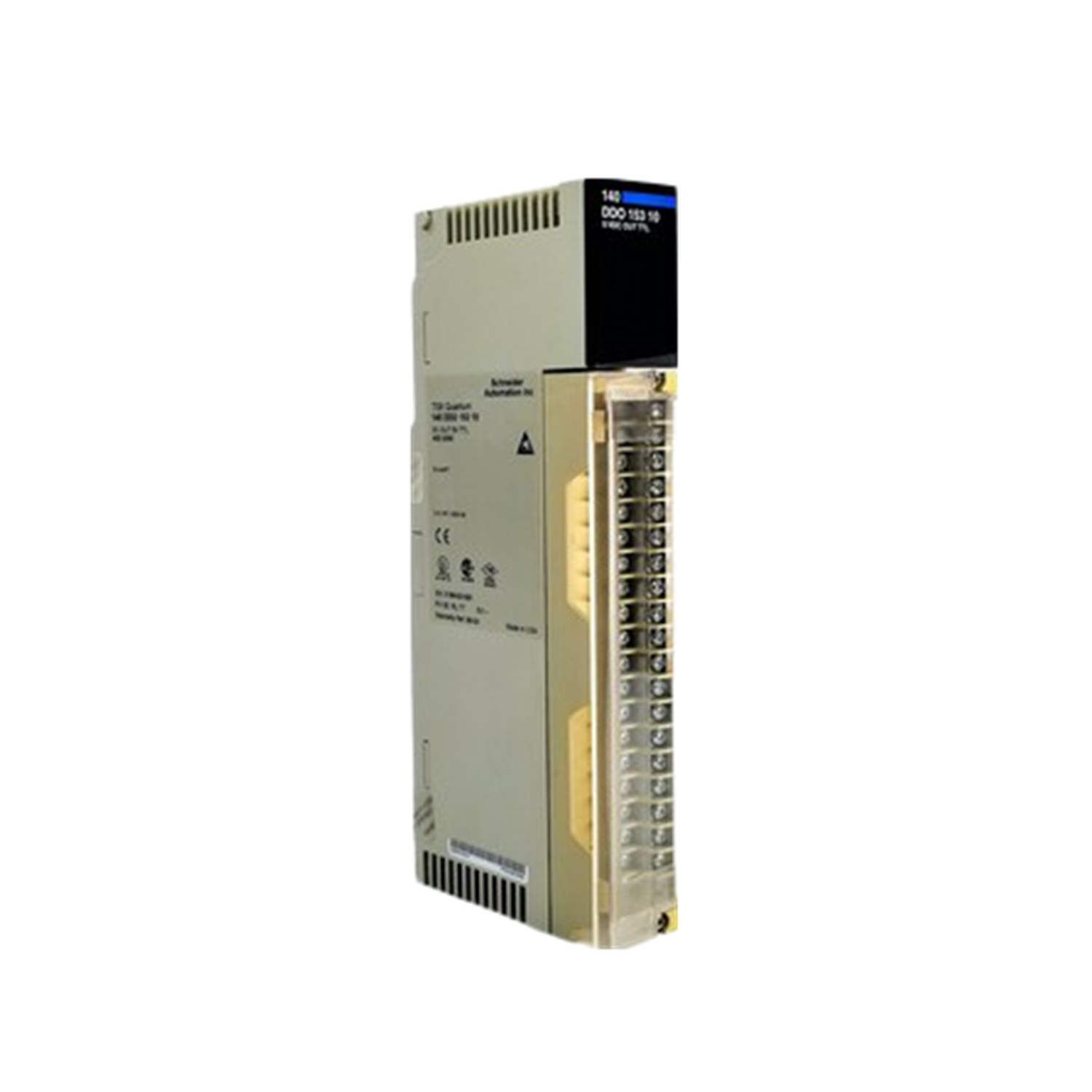

As industrial automation evolved from relay-based systems to high-speed digital control, the need for reliable, low-voltage discrete output modules became critical. The Schneider Modicon Quantum 140DDO15310C TTL discrete output module meets this demand, offering precise signal switching for modern PLC architectures. Designed for the Modicon Quantum automation platform, this module provides 32 channels of TTL positive (sink) output at 5 V DC, making it ideal for interfacing with TTL-level logic circuits in manufacturing, process control, and machine automation.
Technical Specifications Breakdown
Key parameters for the 140DDO15310C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Output Type | TTL Discrete Output |
| Number of Channels | 32 |
| Output Voltage | 5 V DC |
| Internal Pullup Resistor | 440 Ohm |
| Surge Current | 750 A |
| Power Dissipation | 4 W |
| Bus Current Requirement | 350 mA |
| Ambient Temperature | 0 to 60 °C |
| Standards | UL 508, CSA |
Industry Applications for the 140DDO15310C
This TTL discrete output module excels in applications requiring fast, low-voltage switching. In semiconductor manufacturing, the 32 channels can control wafer handling signals with precision. In assembly lines, the module drives TTL-level indicators and small actuators. The conformal coating protects against humidity and contaminants, making it suitable for harsh environments like chemical processing. The 750 A surge current capability ensures resilience against electrical transients, reducing downtime.
Installation & Setup Guidance
When integrating the 140DDO15310C into a Modicon Quantum system, allocate two output words in the addressing scheme. Ensure the bus current requirement of 350 mA is within the power supply capacity. The module operates in ambient temperatures from 0 to 60 °C; avoid placing it near heat sources. Use standard format backplane slots. Verify that the output voltage (5 V DC) matches the load requirements. The internal pullup resistor (440 Ohm) aids signal integrity for TTL positive (sink) outputs.
Maintenance & Reliability
The conformal coating (Humiseal 1A33) provides robust protection against moisture and dust. Inspect the module periodically for blown fuse indicators (red LED) and ensure the bus communication LED (green) is active. The module's power dissipation of 4 W is low, reducing thermal stress. For storage, keep within -40 to 85 °C. Regular visual checks of the 32 status LEDs help identify faulty channels early.
Compatibility & Integration
As part of the Modicon Quantum automation platform, the 140DDO15310C integrates seamlessly with Schneider Electric controllers and I/O modules. It supports CE marking and complies with UL 508 and CSA standards. The module uses 2 output words for addressing, simplifying configuration in Unity Pro or similar software. No special communication protocols are required beyond standard Quantum backplane communication.
Selection Guide & Purchasing Advice
When selecting a TTL discrete output module, consider channel count, voltage, and environmental protection. The 140DDO15310C offers 32 channels at 5 V DC with conformal coating for durability. SpareTechPLC stocks this module and can verify current lifecycle status and availability. Please confirm with SpareTechPLC before ordering to ensure compatibility with your system.
Troubleshooting & Common Issues
If the module does not respond, check the bus communication LED (green). If off, verify backplane connection and power supply. A red fault LED indicates a blown fuse or loss of field power. For output failures, measure the output voltage (should be 5 V DC) and check the internal pullup resistor (440 Ohm). Surge current events may cause temporary faults; reset the module. Ensure ambient temperature stays within 0 to 60 °C.
