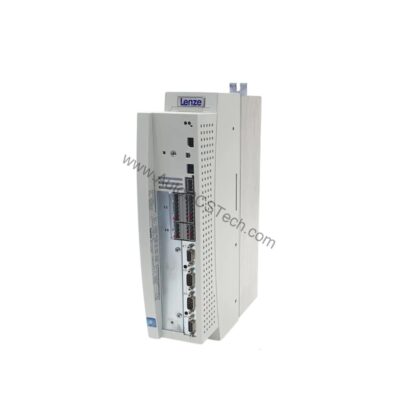

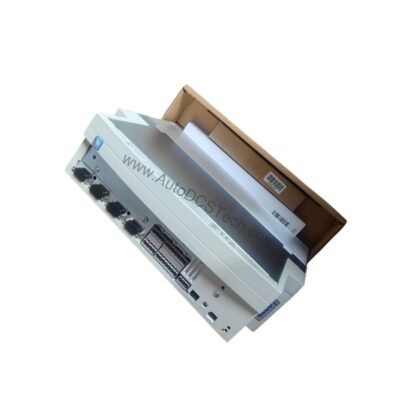

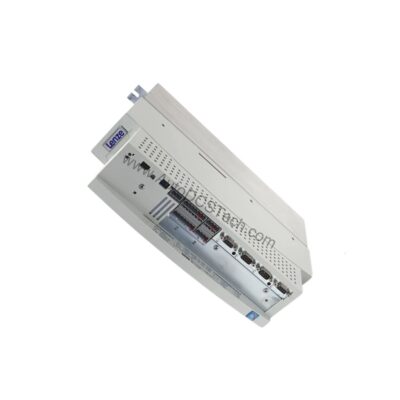

Lenze EVS9321-EK 9300 Servo Cam Controller – Precision Motion Control

Technical Specifications Breakdown

Key parameters for the EVS9321-EK are listed below for quick reference:

Application Versatility for Industrial Automation

Typical uses include:

• Packaging machinery: The controller ensures accurate timing of cutting and sealing operations, reducing material waste.
• Textile production: Precise speed and position control maintain consistent thread tension, improving product quality.
• Material handling: Smooth acceleration and deceleration extend equipment life and reduce downtime.

In each scenario, the ability to operate at 50/60 Hz mains frequency ensures compatibility with regional power standards, avoiding costly frequency converters.

Installation and Setup Guidance

Proper installation is critical for optimal performance. Mount the controller in a clean, dry enclosure with adequate ventilation. Ensure the mains supply matches the specified 3 AC 320–528 V range. Verify the frequency is within 45–65 Hz. For DC supply, confirm the voltage is within 460–740 V. Use appropriate fusing and disconnects per local codes. Follow the manufacturer's wiring diagrams to avoid misconnection.

Maintenance and Reliability

The EVS9321-EK is designed for long service life. Implement a periodic inspection schedule—check for dust accumulation, loose connections, and signs of overheating. The built-in power reduction above 40°C (2% per Kelvin) protects the unit in high-temperature environments, but ensure ambient temperature stays within acceptable limits. Regular cleaning and thermal monitoring will maximize reliability.

Precision Motion Control with the Lenze EVS9321-EK

Industrial motion control demands accuracy, reliability, and efficiency. The Lenze EVS9321-EK, part of the 9300 series, is a servo cam controller engineered to deliver precise motor management in demanding automation environments. By integrating this controller into your system, you gain a component that balances performance with operational cost-effectiveness.

Cost-Efficiency Through Robust Design

Every specification of the EVS9321-EK contributes to lower total cost of ownership. The wide mains input range of 3 AC 320–528 V at 45–65 Hz allows the controller to operate on diverse electrical systems without additional transformers, reducing installation complexity and expense. The alternative DC supply option (460–740 V) provides flexibility for systems with existing DC bus infrastructure, potentially saving on conversion hardware.

The switching frequency options of 8 kHz and 16 kHz let you balance performance with energy consumption. Lower switching frequencies reduce heat generation and power loss, while higher frequencies can improve motor smoothness. The power loss of 100 W at 400 V is modest, minimizing wasted energy and cooling requirements.

Compatibility and Integration

The 9300 series is designed for seamless integration into existing automation systems. The controller supports standard motor types (4-pole asynchronous motors) and can be configured for various motion profiles. Its compact dimensions (78 mm by 350 mm by 250 mm) and weight of 3.5 kg simplify mounting in control cabinets. For detailed integration guidance, consult the Lenze documentation or contact AutoDCSTech.

Purchasing and Support

Our team can help you verify compatibility and lifecycle status. Please confirm current availability before ordering. Contact us for a quote or technical assistance.

Troubleshooting Common Issues

If the controller fails to operate, first check the mains supply voltage and frequency. Ensure the DC supply (if used) is within 460–740 V. Verify that the motor is correctly connected and that the load does not exceed the rated output current. If the unit shuts down due to overheating, allow it to cool and check ambient temperature. For persistent issues, consult the Lenze manual or contact AutoDCSTech for professional support.
