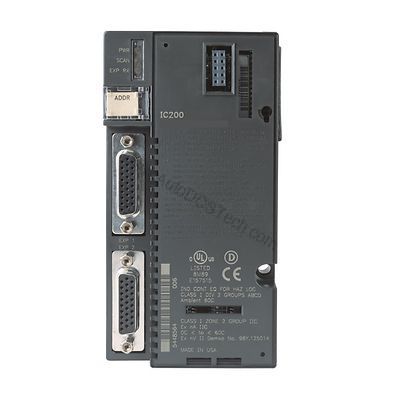

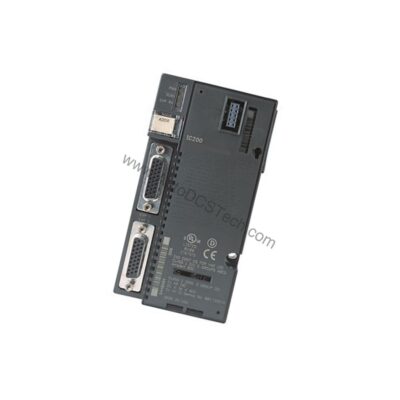

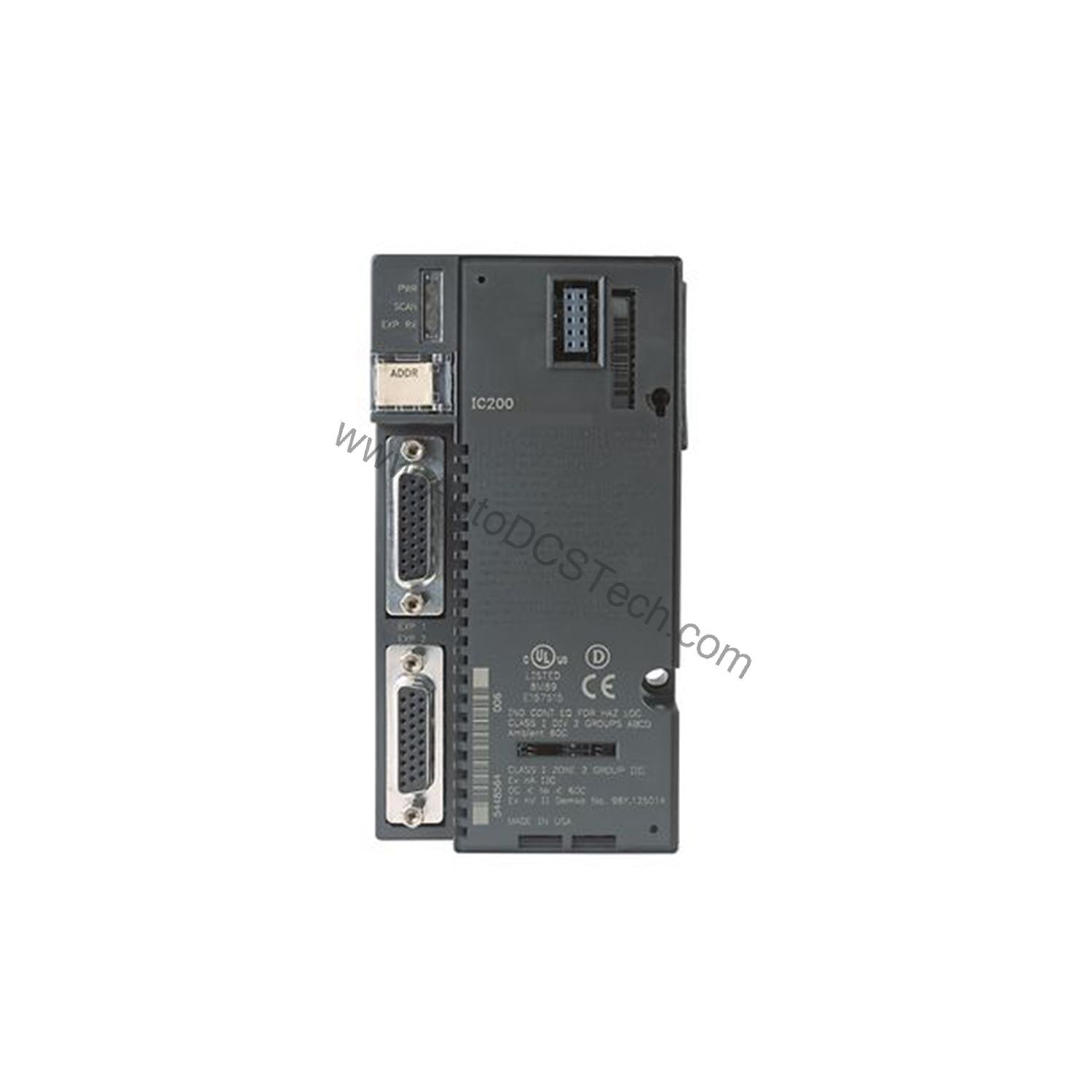

GE Fanuc IC200PWR012 Versamax DC Power Supply 18-30VDC 1.5A

Power Supply Overview

The IC200PWR012 is a DC power supply module from the GE Fanuc Versamax family, designed to provide reliable backplane power to CPUs and network interface units. With an input voltage range of 18 to 30 Volts DC and an input power of 11 Watts, this module ensures stable operation in demanding industrial environments. Its compact dimensions of 1.95 x 5.25 x 1.54 inches allow for easy snap-on mounting, making it a space-efficient choice for control cabinets.

Technical Specifications Breakdown

Key parameters for the IC200PWR012 are listed below for quick reference:

Industry Applications

This power supply is well-suited for use as the main power source for I/O stations and large I/O applications, where consistent DC power is critical. In manufacturing lines, it can power Versamax CPUs and network interface units, ensuring uninterrupted data acquisition and control. Its 1500 Volts of isolation between primary and secondary sides enhances safety in electrically noisy environments, reducing the risk of ground loops and equipment damage.

Installation & Setup Guidance

Mount the IC200PWR012 by snapping it onto a Versamax CPU or network interface unit. For supplemental power, attach it to a power supply booster carrier. Ensure the input voltage is within 18 to 30 Volts DC and that the total output current does not exceed 1.5 Amps. Verify that the load requires either 5 Volts DC or 3.3 Volts DC output. The module provides reverse polarity protection, but always double-check wiring polarity before energizing.

Maintenance & Reliability

The built-in short circuit, overload, and reverse polarity protection help prevent damage from common electrical faults. Inspect the module periodically for signs of overheating or physical damage. Keep the surrounding area free of dust and moisture to maintain reliable operation. The 10-millisecond holdup time ensures brief power interruptions do not disrupt system operation.

Compatibility & Integration

This power supply is designed specifically for the Versamax series, providing backplane power to CPUs and network interface units. When mounted on a power supply booster carrier, it can serve as a supplemental power source. It supports a wide range of I/O expansion modules, making it a flexible choice for scalable automation systems.

Selection Guide & Purchasing Advice

When selecting a power supply for your Versamax system, consider the total current draw of all connected modules. The IC200PWR012 delivers up to 1.5 Amps total output current, suitable for moderate I/O configurations. For larger systems, additional booster carriers may be needed. AutoDCSTech stocks this module and can assist with availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
