How can a control system maintain deterministic performance when application complexity grows? The ABB PM511V16 processor module answers this by providing 16 MB of read/write memory for the Controller 450, enabling robust data handling and precise execution of control tasks.
What defines the ABB PM511V16 processor module?

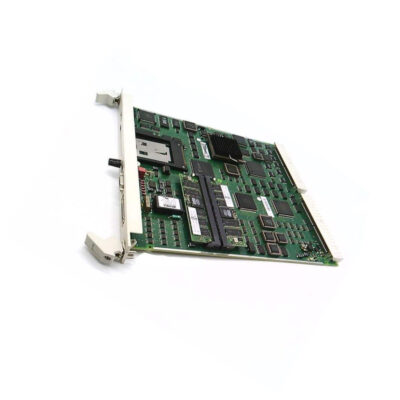

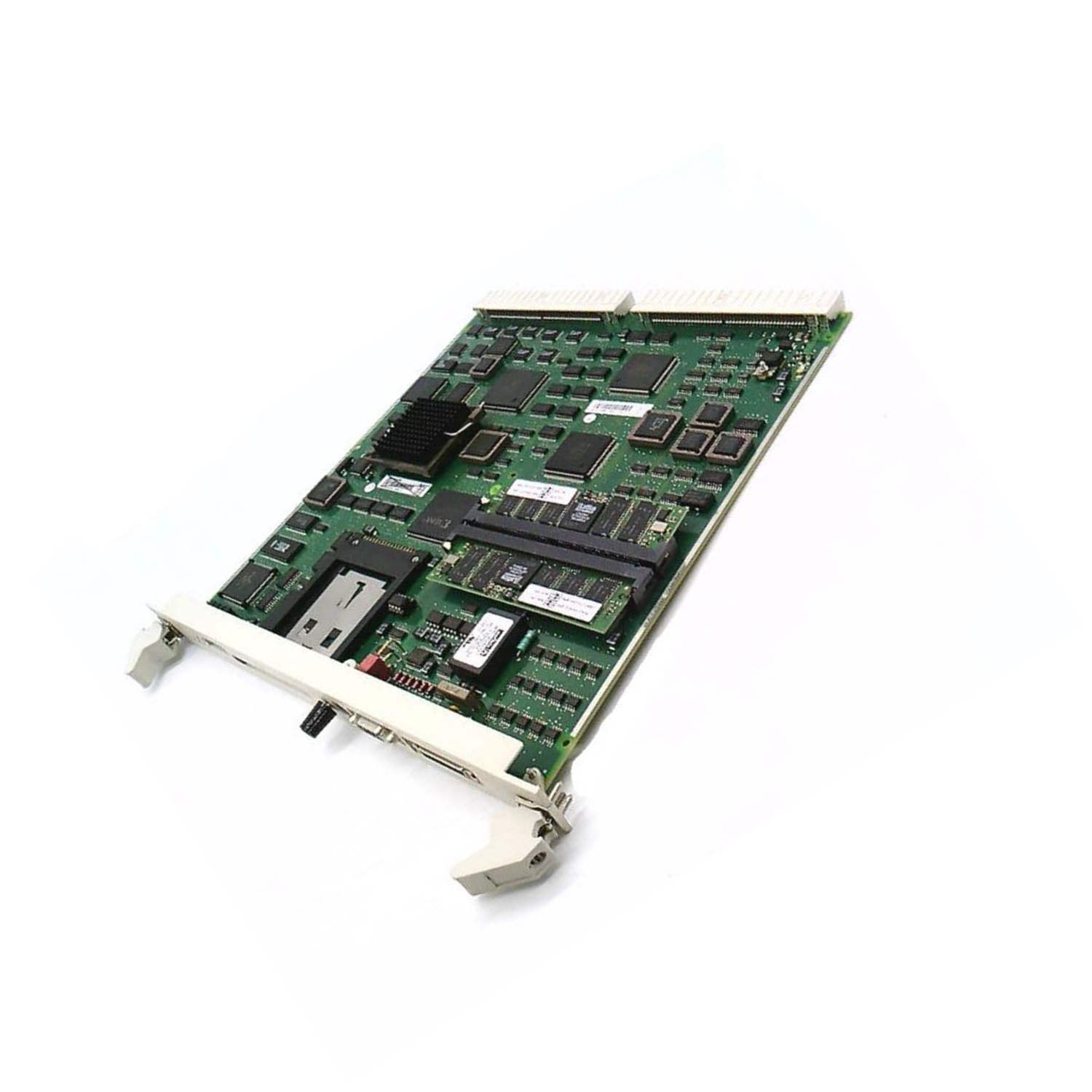

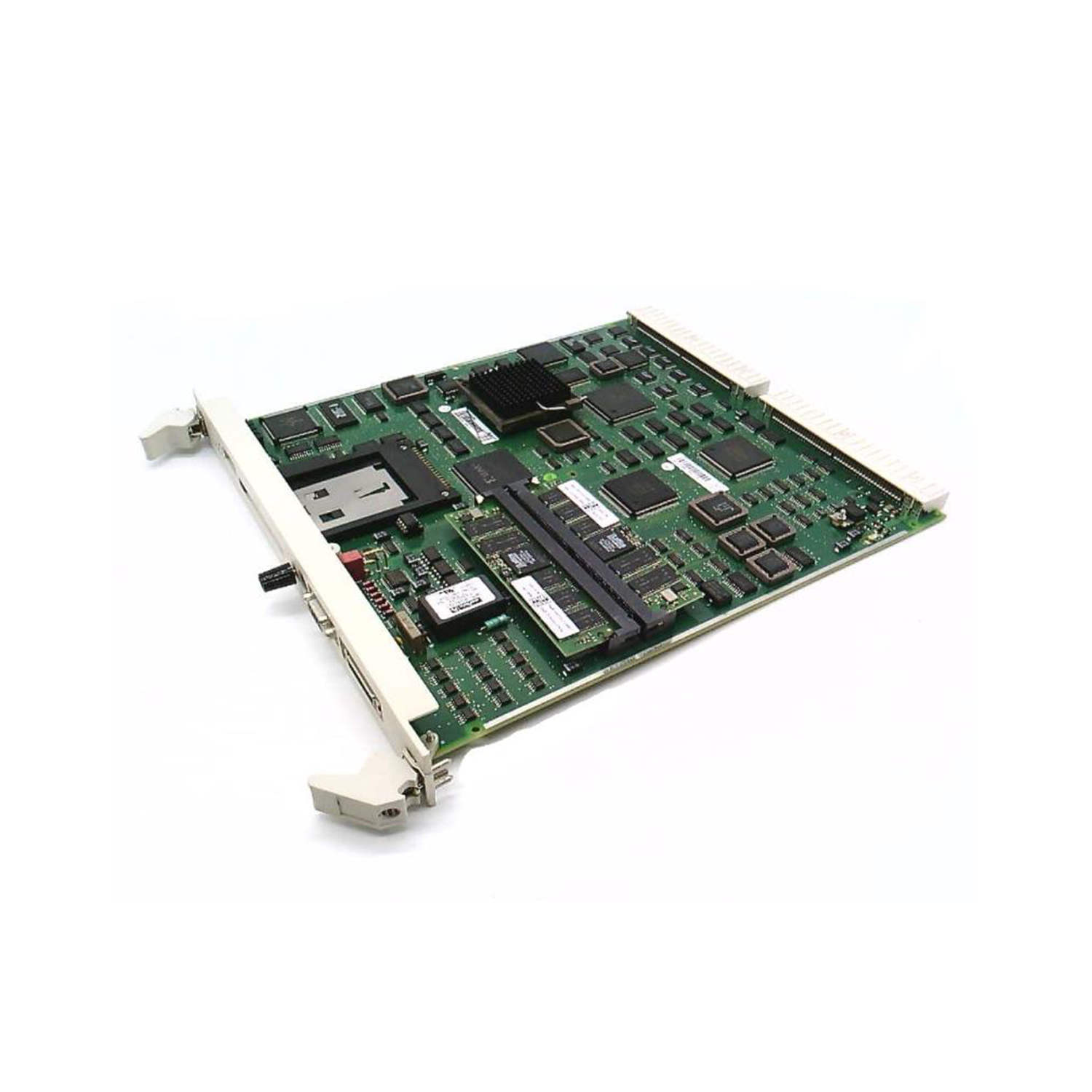

The ABB unit is a central unit processor module engineered for the Advant Controller 450. It carries the product ID 3BSE011181R1 and is cataloged as This unit Processor Module. Its 16 MB read/write memory (RAM) supports demanding control applications that require fast access to large data sets. As part of ABB’s Advant series, this module integrates seamlessly into existing architectures, delivering engineering-grade precision in every cycle.
Key specifications and engineering details
The table below summarizes the verified technical parameters of This unit. These values are extracted directly from ABB’s official product data, ensuring exactness for system integration and compliance checks.
- Product ID: 3BSE011181R1
- ABB Type Designation: unit
- Product Type: Central_Unit
- Memory: 16 MB read/write memory (RAM)
- Net Depth / Length: 274.5 mm
- Net Height: 27 mm
- Net Width: 270 mm
- Net Weight: 0.8 kg
- RoHS Information: Following EU Directive 2011/65/EU
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Notably, the module contains no batteries, which simplifies maintenance and reduces environmental concerns. The compact dimensions and low weight facilitate installation in space-constrained cabinets.
Where does This unit deliver the most value?
In process automation, This unit excels where moderate memory and high reliability are required. For example, in a continuous manufacturing line, the 16 MB RAM allows buffering of production recipes and real-time trend data. Consequently, operators can analyze process deviations without external storage. Furthermore, the module’s central unit role ensures deterministic execution of control logic, which is critical for safety and quality. In power plants, This unit supports turbine control sequences that demand precise timing. Similarly, in water treatment facilities, it manages pump schedules and chemical dosing with engineering-grade accuracy. These use cases highlight the module’s versatility across industries.
Integration and maintenance considerations
Installing This unit requires adherence to ABB’s mounting guidelines for the Controller 450 rack. Because the module is a central unit, it communicates with I/O modules via the backplane. Therefore, verify that the rack power supply meets the system’s requirements. Regular maintenance includes inspecting for dust accumulation and ensuring proper ventilation. The absence of batteries eliminates periodic replacement tasks, reducing downtime. For optimal reliability, follow the manufacturer’s safety manual and environmental specifications. Always confirm compatibility with your existing firmware revision before deployment.
Availability & Condition at AutoDCSTech
| Part Number | PM511V16 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Switzerland |
