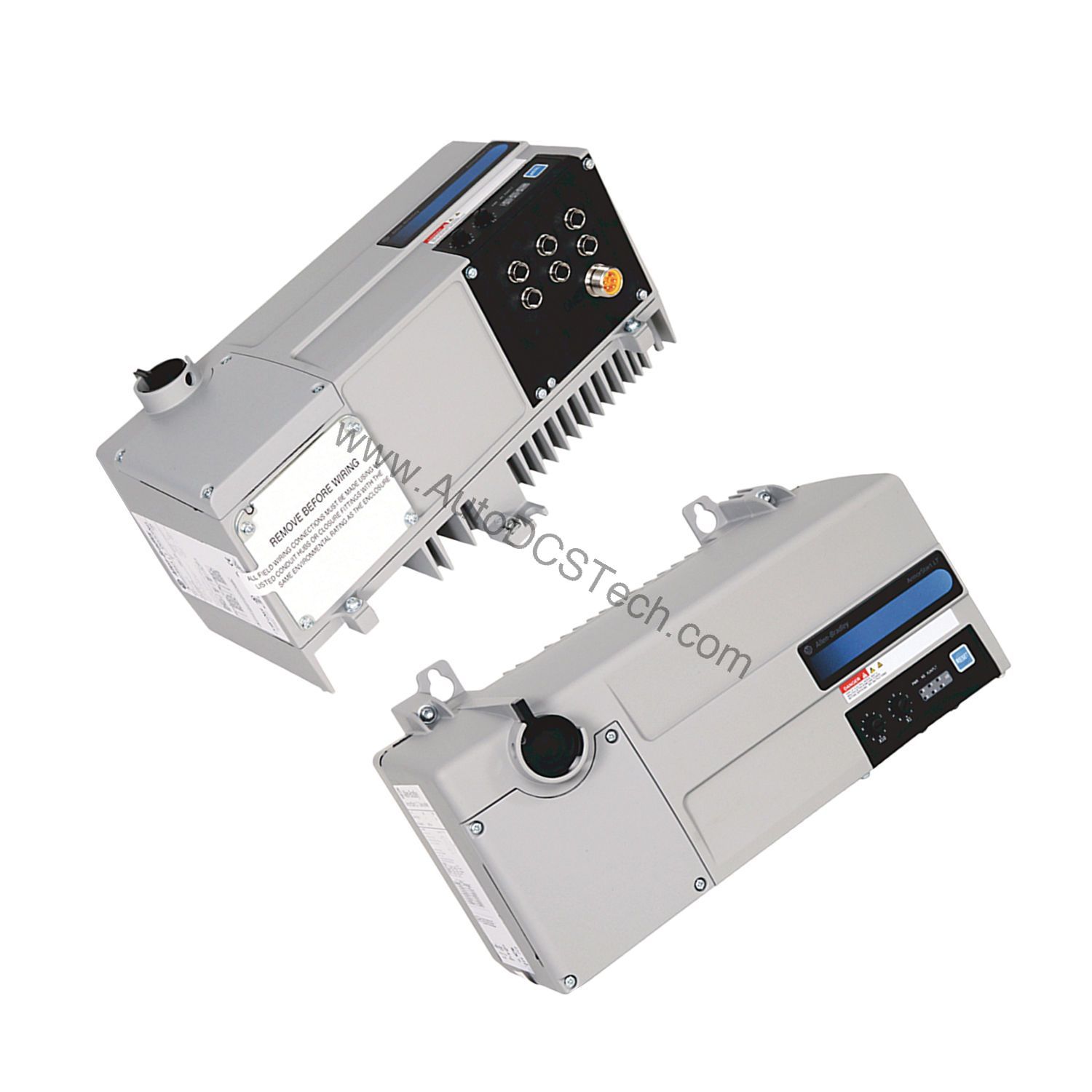

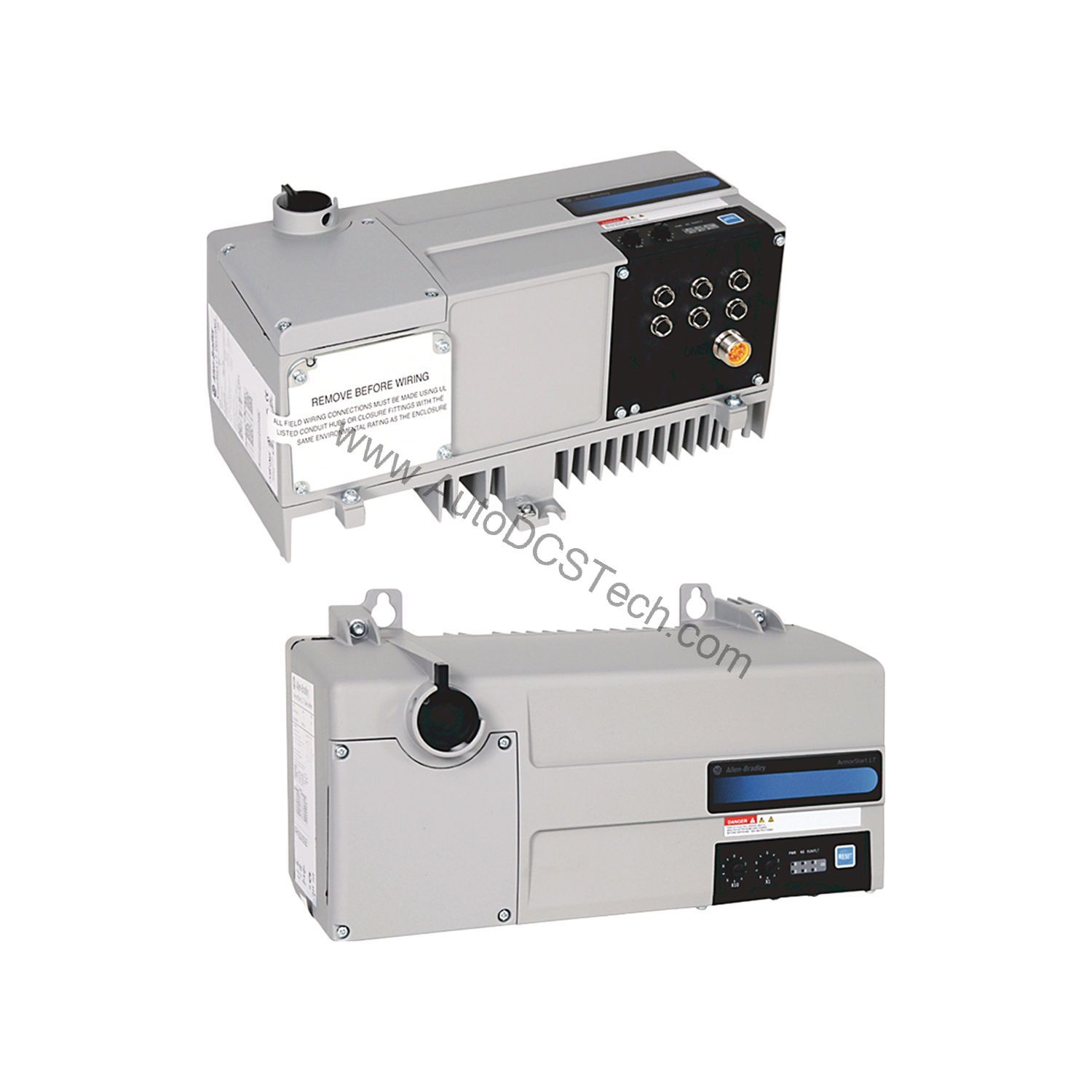

Allen-Bradley 294D-FD4P2Z-G2-3 ArmorStart LT VFD Starter

Technical Specifications Breakdown

Key parameters for the 294D-FD4P2Z-G2-3 are listed below for quick reference:

Industry Applications

This VFD starter is engineered for on-machine installations where traditional cabinet-mounted drives are impractical. Common applications include:

• The DeviceNet interface allows seamless integration with PLCs for coordinated motion.
• Material Handling: With a 40:1 speed range and slip compensation, the drive maintains accurate speed control for hoists and transfer carts, improving throughput and reducing product damage.
• Pumps and Fans: The built-in overload protection (150% for 60 s or 200% for 3 s) safeguards against jams and stalls, while the internal EMI filter reduces electrical noise in sensitive environments.

Installation & Setup Guidance

Proper installation is key to maximizing the life of the 294D-FD4P2Z-G2-3. The unit accepts three-phase input power (L1, L2, L3) and connects to the motor via T1, T2, T3. Use the ArmorConnect gland plate for power and motor connections to maintain the IP66 rating. Ensure the control power is 24V DC (19.2…26.4V DC) and observe the polarity—the unit has reverse-polarity protection, but correct wiring avoids nuisance trips. For DeviceNet, use the quick disconnect for I/O communications to simplify wiring and reduce installation time.

Maintenance & Reliability

The robust IP66/UL Type 4/12 enclosure protects against water and dust ingress, but periodic inspection is still recommended. Check the enclosure seals and cable glands for wear every six months. Keep the ambient temperature within the operating range of -20…+40 °C (-4…+104 °F) to avoid derating. The drive features a faultless power ride-through of 10 ms, which helps maintain operation during brief power dips. For long-term reliability, ensure the branch circuit includes properly rated line reactors if operating at 50 °C (122 °F) without derating.

On-Machine VFD Starter for Distributed Control

The Allen-Bradley 294D-FD4P2Z-G2-3 is a variable frequency drive (V/Hz) starter from the ArmorStart LT series, designed for on-machine starting solutions. This unit combines motor starting, protection, and network connectivity in a single robust enclosure, eliminating the need for a separate control cabinet. With a horsepower range of 0.5…2 Hp (0.37…1.5 kW), it suits small to medium motor applications where space is at a premium and reliability is critical.

Compatibility & Integration

This starter uses DeviceNet for communication, allowing direct connection to Rockwell Automation PLCs and other DeviceNet scanners. The built-in DeviceLogix technology enables local logic execution, reducing the burden on the central controller. The unit also supports peer-to-peer (ZIP) messaging for DeviceNet versions, enabling fast data exchange between drives. For I/O, the quick disconnect provides a single keyed M12 connection for inputs and outputs, simplifying field wiring.

Selection Guide & Purchasing Advice

When selecting the 294D-FD4P2Z-G2-3, verify that your motor's horsepower and voltage match the drive's ratings (0.5…2 Hp, 0.37…1.5 kW). The catalog number breakdown confirms: Bulletin 294 (VFD Starter), DeviceNet communications, IP66 enclosure, and 3.6 A output current. The -G2 option includes the ArmorConnect gland plate, and the -3 option adds a Hand/Off/Auto selector keypad with Jog function. For availability and lifecycle status, contact AutoDCSTech, a trusted supplier of industrial automation parts. They can provide current stock information and assist with any compatibility questions.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
