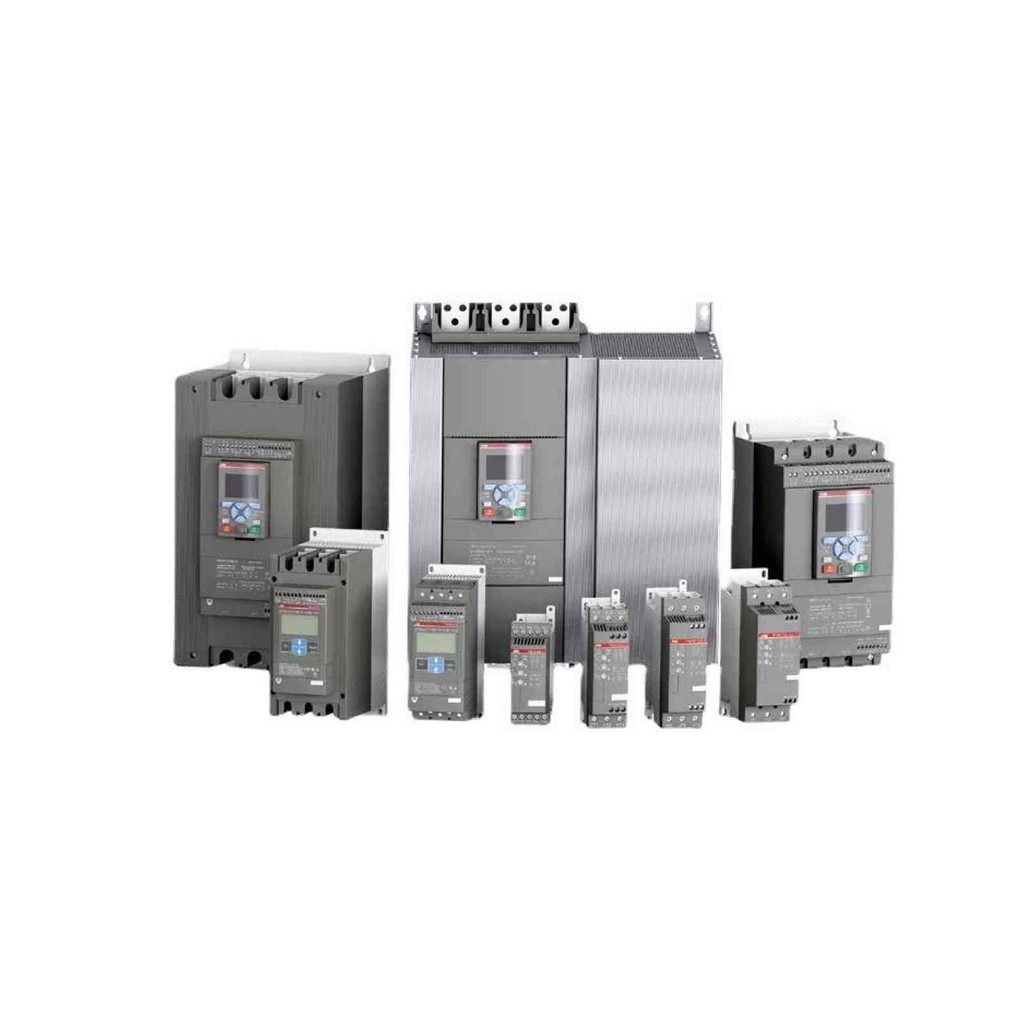

PSTX840-600-70 Softstarter 840 A 208-600 V AC

What engineering challenges does the PSTX840-600-70 solve?

The ABB PSTX840-600-70 is a three-phase softstarter rated for 840 A and 208–600 V AC. It addresses voltage stress, current surges, and integration complexity in medium to large motor starting applications.

How does This unit control starting current and voltage?

Direct-on-line starting imposes high inrush currents and mechanical shock. This unit provides voltage or torque ramp control with a ramp time of 1–120 seconds. Its current limit function adjusts from 1.5 to 7.5 times the rated operational current (Ie). Initial voltage during start is adjustable from 10 to 99 volts. These parameters let engineers match the start profile to the load, reducing electrical and mechanical stress.

Which technical specifications define This unit?

• Rated operational voltage: 208 … 600 V AC
• Rated operational current (in-line): 840 A
• Rated operational current (inside delta): 1455 A
• Rated control supply voltage: 100 … 250 V AC at 50/60 Hz
• Rated control circuit voltage: 24 V DC
• Starting capacity: 4×Ie for 10 s
• Analog outputs: 0…10 V, 0…20 mA, 4…20 mA
• Communication: Modbus RTU built-in; optional ANYBUS modules for Profinet, Profibus, Modbus TCP, Ethernet IP, and others
• Degree of protection (main terminals): IP00
• Ambient operating temperature: -25 … +60 °C

How does This unit simplify integration and installation?

Built-in bypass reduces cabling and panel space while saving energy during run. The detachable full graphic display carries IP66 and 4x outdoor ratings for flexible mounting. Hardwire inputs (Start/Stop/Reset) and three programmable digital inputs provide direct control. For fieldbus networks, Modbus RTU is standard. Other protocols require optional ANYBUS modules or an external adaptor and fieldbus plug. Verify gateway and cable compatibility with AutoDCSTech before commissioning.

What protection and diagnostic functions are included?

The softstarter includes electronic overload protection, current imbalance, underload, phase reversal, and locked rotor protection. A real-time clock and event log support troubleshooting. Warning functions cover thyristor overload, voltage imbalance, and total harmonic distortion. These features help engineers diagnose issues before they cause unplanned downtime.

Where is This unit typically applied?

Typical applications include pumps, fans, compressors, and conveyors. The built-in pump cleaning and motor heating functions suit water treatment and process lines. Sequence start and emergency/fire pump mode add redundancy for critical systems. Inside-delta connection extends current capacity to 1455 A for larger motors.

How does AutoDCSTech support precise matching?

Contact AutoDCSTech with your exact requirements for precise matching. Our team provides engineering-grade support to confirm configuration, communication options, and dimensional fit for your application.
