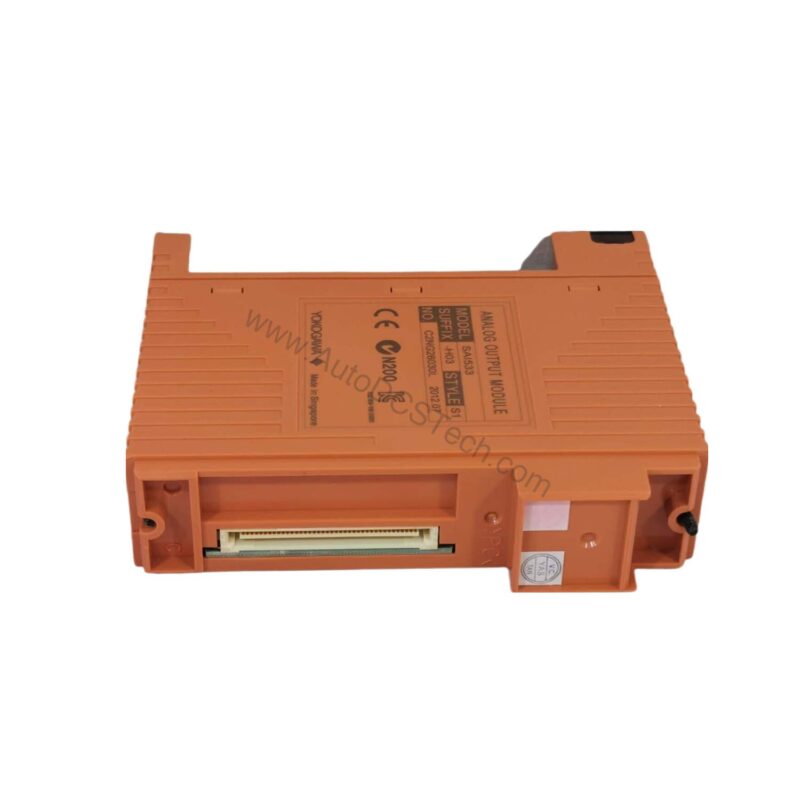

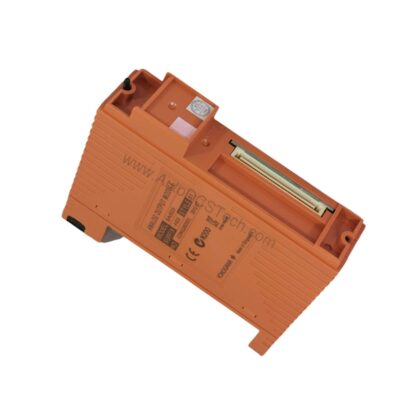

SAI533-H03: 8 Channel 4 20 mA Analog Output Module
The SAI533-H03 is the 8 Channel 4 20 mA Analog Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is Approx. 0.26 kg (pressure clamp/MIL), 0.33 kg (with adapter).
The reason to specify this exact variant is 8 channel 4 20 ma analog output module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. 8 channel 4 20 ma analog output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching Approx. 0.26 kg (pressure clamp/MIL), 0.33 kg (with adapter) against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | SAI533-H03 |
| Output Channels | 8 channels, module isolation |
| Rated Output Range | 4 to 20 mA |
| Maximum Range of Guaranteed Precision | 1.25 to 23 mA |
| Allowable Load Resistance | 230 to 600 Ω |
| Accuracy | ±48 µA |
| Data Update Frequency | 40 ms |
| Temperature Drift | ±16 µA/10 °C |
| Withstand Voltage | 1.5 kV AC (500 V AC with dedicated cable) |
| Max Current Consumption | 5 V: 320 mA |
| 24 V | 300 mA |
| Weight | Approx. 0.26 kg (pressure clamp/MIL), 0.33 kg (with adapter) |
Availability & Condition at AutoDCSTech
| Part Number | SAI533-H03 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
