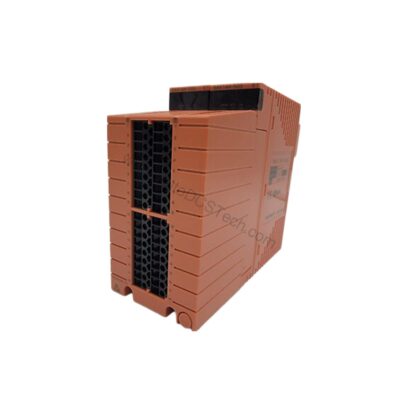

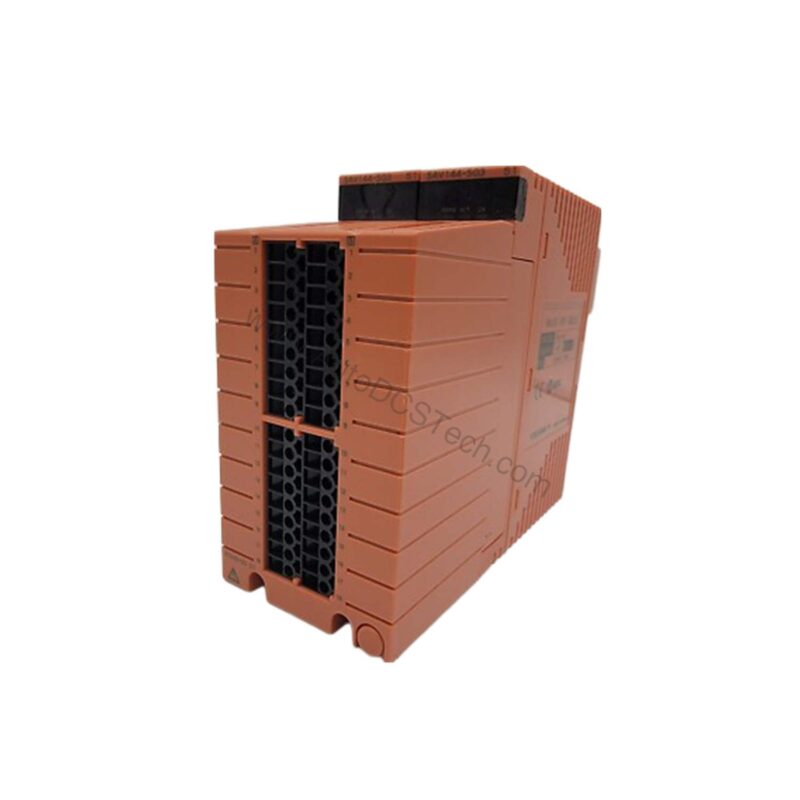

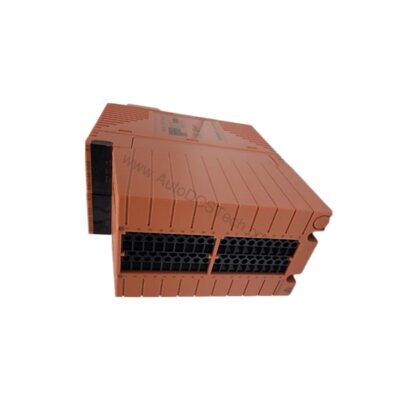

SAV144-S03: 16 Channel Voltage Input Module
The SAV144-S03 is the 16 Channel Voltage Input Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 16 channels, module isolation.
This configuration's 16 channel voltage input module is the attribute that drives the replacement decision. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. 16 channel voltage input module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 16 channels, module isolation against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | SAV144-S03 |
| Number of Input Channels | 16 channels, module isolation |
| Rated Input Range | 1 to 5 V / 1 to 10 V |
| Permissible Input Range | ±30 V |
| Input Impedance (Power-ON) | 1 MΩ |
| Input Impedance (Power-OFF) | 100 kΩ |
| Rated Accuracy (1 to 5 V) | ±4 mV |
| Rated Accuracy (1 to 10 V) | ±9 mV |
| Data Update Frequency | 40 ms |
| Temperature Drift (1 to 5 V) | ±4 mV/10 °C |
| Temperature Drift (1 to 10 V) | ±9 mV/10 °C |
Availability & Condition at AutoDCSTech
| Part Number | SAV144-S03 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
