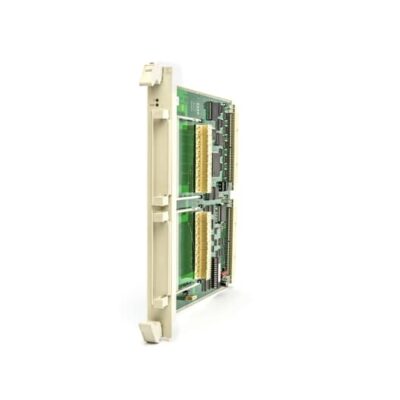

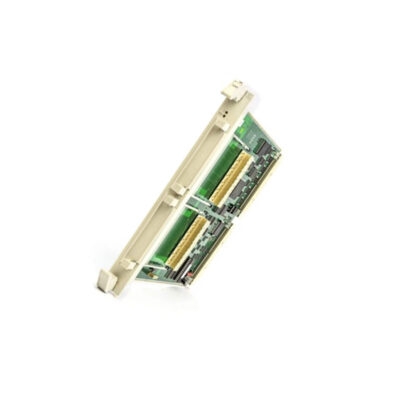

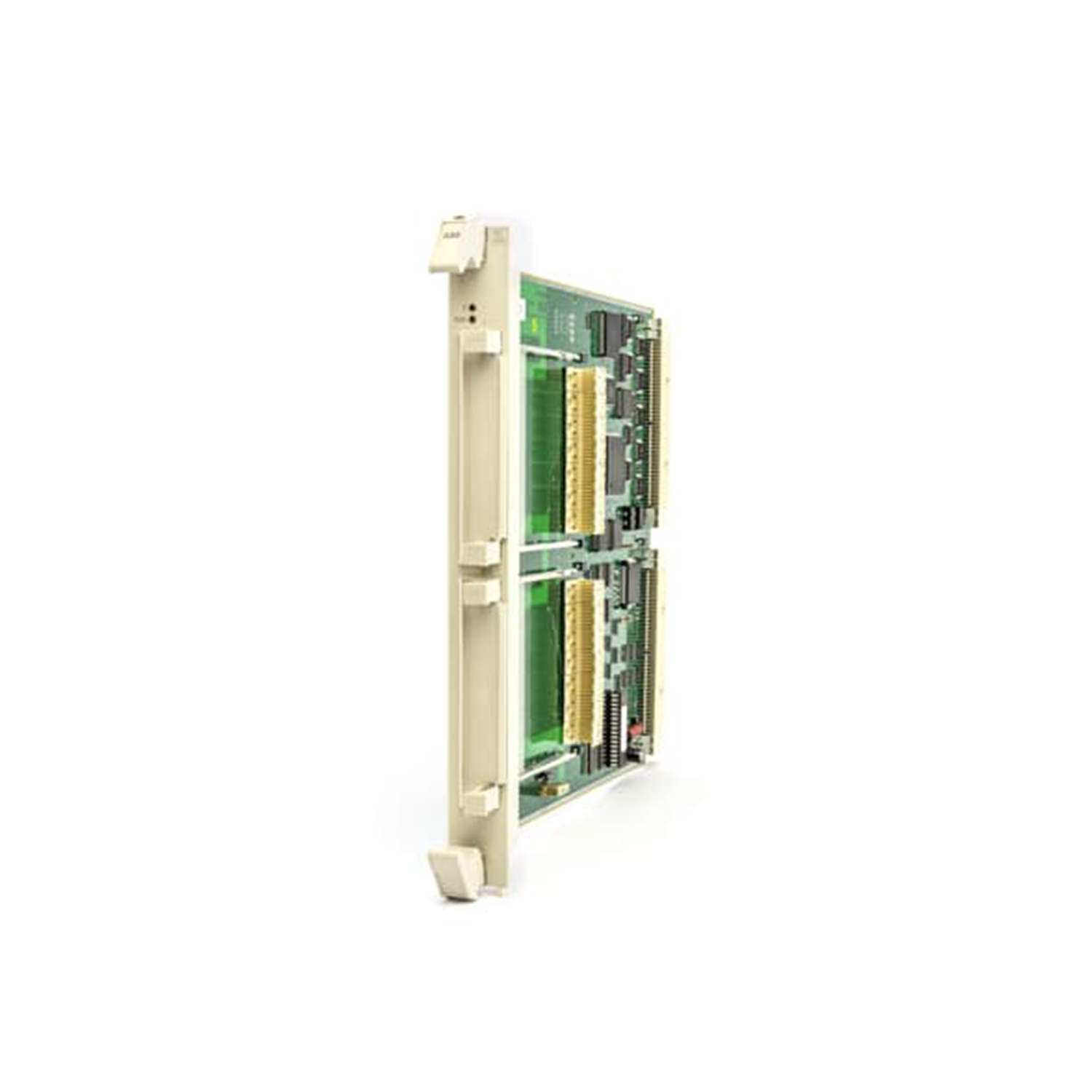

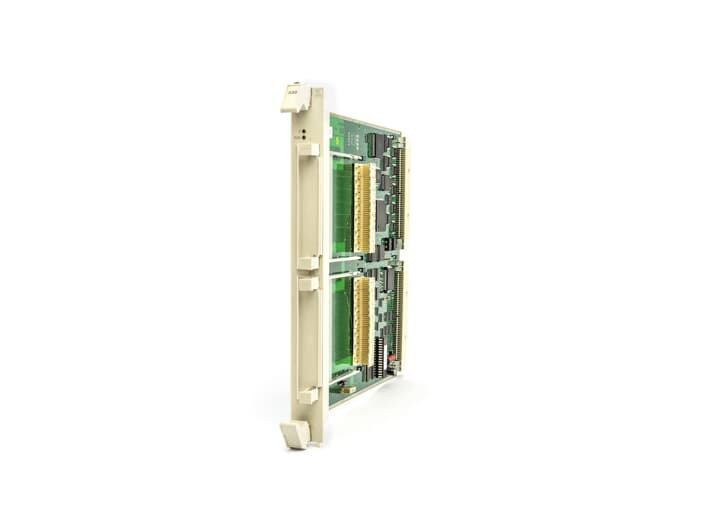

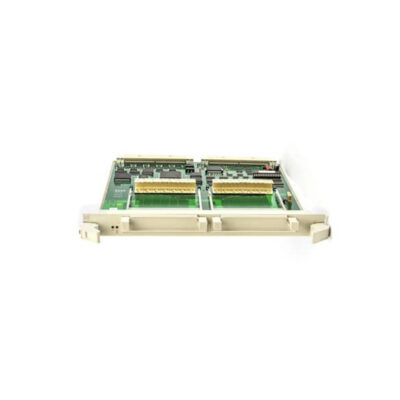

SC510 Submodule Carrier | ABB Communication Module

The ABB SC510 is a submodule carrier without CPU that supports two submodules, identified by product ID 3BSE003832R1. This communication module brings information into the system by accepting two Personality Modules for S800 I/O, S100 I/O, TRIO, or Multi-Vendor Interface integration.

What are the power and cooling requirements of the SC510?

Power and cooling values support AC460 system design. The carrier draws 1.8 A at 5 Volts and 0.54 A at 24 Volts. Its typical cooling load is 75 BTU/H. These figures are verified for system-level thermal and supply planning.

Key technical specifications

• Product ID: 3BSE003832R1
• Type designation: unit
• Function: Submodule carrier without CPU, supports two submodules
• 5 Volts current: 1.8 A
• 24 Volts current: 0.54 A
• Cooling load: 75 BTU/H typical
• Dimensions: 486 mm width, 288 mm depth, 22.5 mm height
• Net weight: 0.67 kg
• RoHS: Following EU Directive 2011/65/EU
• WEEE category: 5 (Small Equipment)

How does This unit integrate into S800 I/O and MVI architectures?

Two Personality Modules plug into each carrier module. This arrangement supports S800 I/O, S100 I/O, TRIO, and integration with other systems via the Multi-Vendor Interface. The controller connects to the DCN through SC540 Carrier Modules with DCN Personality Modules installed. Consequently, This unit acts as a physical and electrical interface between field signals and the controller backplane.

Installation and environmental considerations

Mount the carrier in a panel or enclosure that accommodates its 486 mm width and 288 mm depth. Allow clearance for the specified 75 BTU/H cooling load. Verify that the 5 Volts and 24 Volts supply rails can deliver 1.8 A and 0.54 A respectively. The product contains no batteries, so no battery maintenance is required. RoHS compliance follows EU Directive 2011/65/EU.

Reliability and maintenance

Inspect connections periodically for secure seating of Personality Modules. Keep the enclosure free of dust to maintain airflow. Because the carrier has no CPU, it contains no firmware to update. Therefore, maintenance focuses on physical integrity and supply voltage stability.
