The Evolution of Industrial Programming Connectivity
In the early days of industrial automation, programming a PLC required bulky parallel interfaces and proprietary hardware. As systems grew more compact, the need for standardized, reliable communication cables became critical. The Schneider Electric Modicon 110-XCA-282-01 represents this evolution—a purpose-built communication cable that simplifies programming for M1 systems. Designed for engineers who demand both durability and precision, this cable ensures stable data transfer during configuration and troubleshooting.
Product Overview

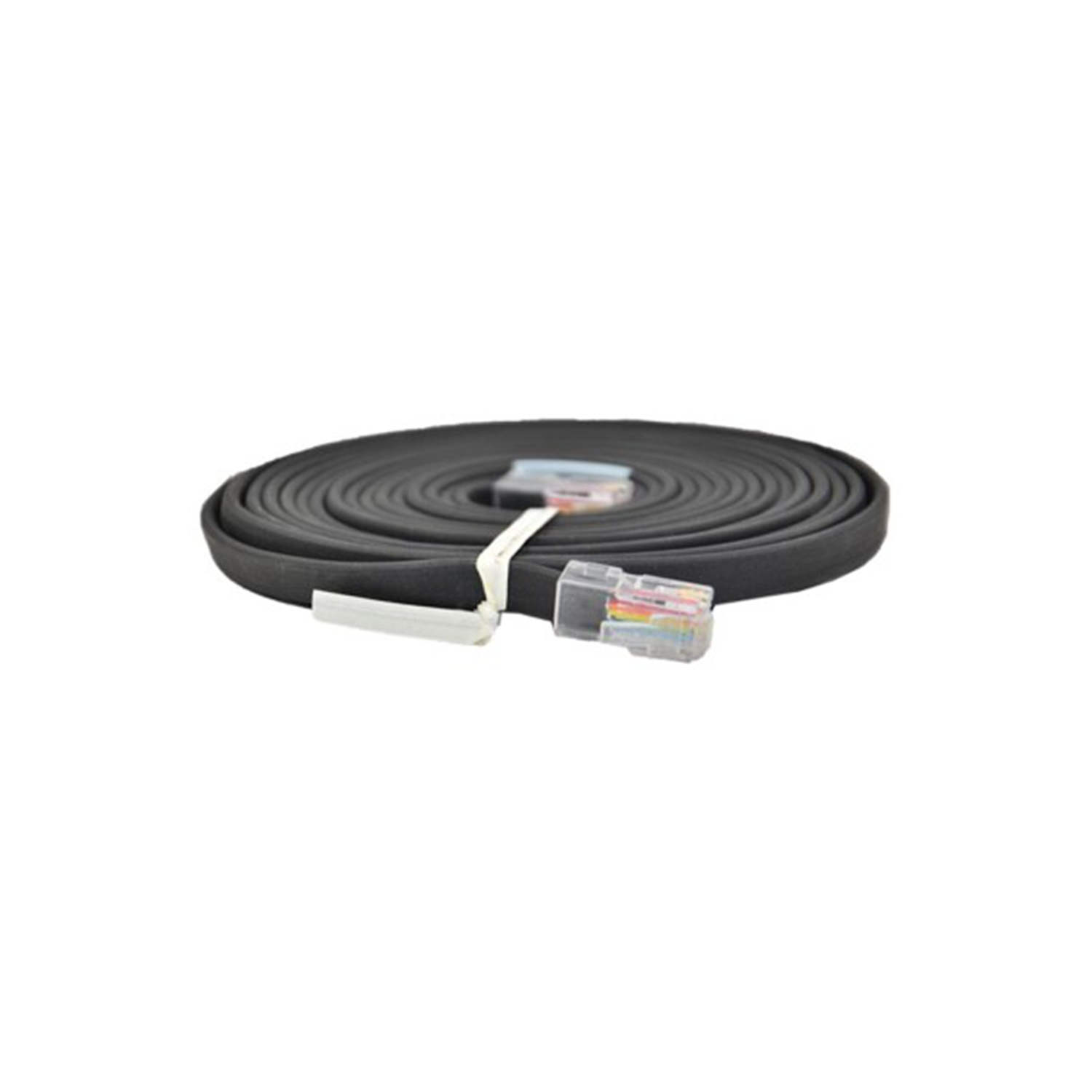

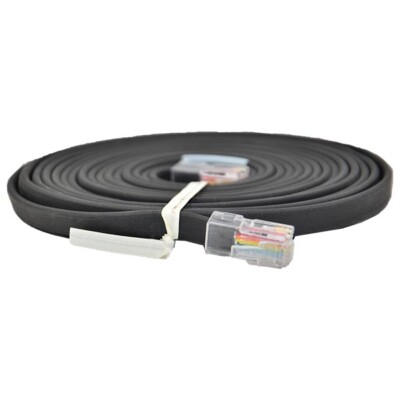

The 110-XCA-282-01 is a communication cable from Schneider Electric, part of the Modicon product line. It is specifically designed for programming M1 systems, providing a direct link between a programming device and the controller. With a 2-meter length, it offers sufficient reach for most workstation setups. The cable operates at 24V DC and supports a maximum current of 2 amps, making it suitable for low-power programming tasks. Its black PVC jacket provides flexibility and protection against common industrial wear.
Technical Specifications Breakdown
Key parameters for the 110-XCA-282-01 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Communication Cable |
| Product Line | Modicon |
| Part Number | 110-XCA-282-01 |
| EAN | 3595861126480 |
| Weight | 0.13 lbs (0.06 kg) |
| Application | Programming for M1 |
| Operating Voltage | 24V DC |
| Cable Length | 2 meters |
| Connector Type | Standard, Male/Female |
| Current Rating | 2A max |
| Color | Black |
| Temperature Range | -10°C to 60°C |
| Compatibility | M1 Systems |
| Cable Material | PVC Jacket |
Industry Applications
1. M1 System Programming and Commissioning
The primary application of this cable is programming M1 controllers during initial setup or system upgrades. Engineers use it to download logic, configure parameters, and run diagnostics. The 24V DC operating voltage aligns with typical M1 system power, ensuring safe communication without additional converters.
2. On-Site Troubleshooting and Maintenance
When an M1 system experiences unexpected behavior, quick access to the controller is essential. This 2-meter cable allows technicians to connect a laptop or programming terminal directly to the M1 unit, even in tight control cabinets. The -10°C to 60°C temperature range means it can be used in unconditioned plant floors or outdoor enclosures.
3. Educational and Training Environments
Training facilities teaching Modicon M1 programming benefit from a standardized cable. The 110-XCA-282-01 provides a consistent connection for multiple workstations, reducing setup time. Its lightweight design (0.06 kg) makes it easy to store and transport.
Installation and Setup Guidance
Before connecting the cable, ensure both the programming device and the M1 system are powered off. Inspect the male and female connectors for damage or debris. Plug the appropriate end into the M1 programming port and the other into the computer interface. Secure the connection by tightening any locking screws if present. Power on the M1 system first, then the programming device. Verify communication using the Modicon programming software. Avoid bending the cable sharply near the connectors to prevent internal wire breakage.
Maintenance and Reliability
The PVC jacket resists oil and abrasion, but periodic inspection is recommended. Check for cuts, kinks, or exposed wires before each use. Clean connectors with a dry cloth to remove dust. Store the cable in a clean, dry environment within the specified temperature range. If the cable is used frequently, consider replacing it annually to ensure reliable signal integrity.
Compatibility and Integration
This cable is designed exclusively for Schneider Electric Modicon M1 systems. It uses standard male/female connectors, making it compatible with M1 programming ports. No special adapters are required for typical programming setups. Always verify that your M1 system firmware supports the programming software version you intend to use.
Selection Guide and Purchasing Advice
When selecting a programming cable for M1 systems, the 110-XCA-282-01 offers a proven solution from Schneider Electric. Its 2-meter length balances reach and portability. For longer distances, consider a USB-to-serial adapter with an extension cable, but ensure compatibility with 24V DC signaling. SpareTechPLC stocks this cable and can confirm availability. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting and Common Issues
If communication fails, first check that the cable is fully seated at both ends. Verify the programming software is set to the correct COM port and baud rate. Test the cable with a known working M1 system to isolate the issue. If the cable feels warm during use, disconnect immediately and inspect for short circuits. Do not exceed the 2A current rating. For persistent problems, replace the cable.
