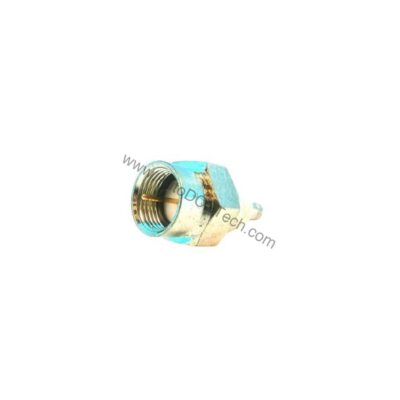

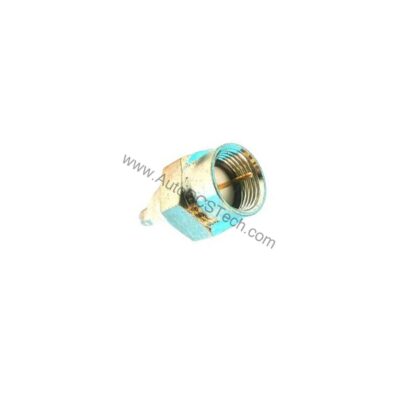

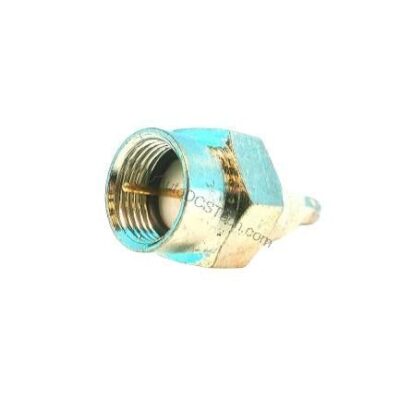

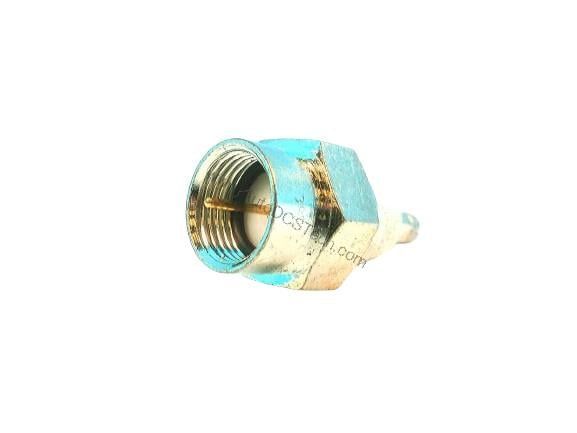

Schneider 52-0422-000 Modicon Quantum Trunk Terminator for Coaxial Networks

Signal Integrity in Coaxial Networks: The Schneider 52-0422-000 Trunk Terminator

In industrial automation, signal reflections and disruptions over coaxial cable networks can cause data errors and system downtime. The Schneider Electric 52-0422-000 trunk terminator is engineered to eliminate these issues, providing reliable termination for Modicon Quantum architectures. This component is essential for maintaining clean communication in automotive and other automated environments.

Technical Specifications Breakdown

Key parameters for the 52-0422-000 are listed below for quick reference:

Industry Applications and Cost-Benefit Analysis

This trunk terminator directly addresses a common failure mode: signal reflections in long coaxial trunk lines. By providing a precise 75 Ω impedance match, the 52-0422-000 prevents data corruption that can halt production lines. For automotive automation systems, where real-time control is critical, this component reduces unplanned downtime and maintenance costs. The 75 W power dissipation rating ensures it can handle typical coaxial network loads without overheating, extending the life of connected equipment.

Installation and Setup Guidance

Install the 52-0422-000 at the end of a coaxial trunk line in a Modicon Quantum network. Ensure the coaxial cable connector is clean and properly seated. The terminator is a single-unit design, making installation straightforward. Always verify that the network is powered down before connecting or disconnecting the terminator to avoid damage. For optimal signal integrity, use only 75 Ω coaxial cable throughout the network.

Maintenance and Reliability

This terminator operates stably across industrial temperature ranges, as specified by Schneider. Periodic visual inspection of the connector and cable for corrosion or physical damage is recommended. Because the unit is not RoHS compliant, follow local regulations for disposal. The robust construction ensures long-term reliability in harsh factory environments.

Compatibility and Integration

The 52-0422-000 is optimized for the Modicon Quantum automation platform. This component is not designed for other network types (e.g., twisted pair or fiber optic). For mixed-protocol systems, verify that all coaxial segments are terminated with matching 75 Ω terminators.

Selection Guide and Purchasing Advice

When selecting a trunk terminator for your Modicon Quantum system, ensure the impedance and power rating match your network requirements. The 52-0422-000 is a reliable choice for 75 Ω coaxial networks. AutoDCSTech offers this genuine Schneider Electric part with fast shipping. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting and Common Issues

If you experience signal errors or network instability, first check that the 52-0422-000 is properly seated and the coaxial cable is undamaged. Use a multimeter to measure DC resistance across the terminator; a reading near 75 Ω indicates correct termination. If the terminator is missing or damaged, replace it immediately to restore network integrity.
