Technical Specifications Breakdown
Key parameters for the ABFM08S201 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Cabled connector |
| Product Line | Modicon Quantum |
| Number of Channels | 8 |
| Cable Length | 2 m (6.6 ft) |
| Signal Type | Analogue input |
| Connector Type | SUB-D |
| Number of Ways | 25 ways |
| Wire Section | 0.22 mm² (0.0003 in²) |
| AWG Gauge | AWG 24 |
| Current Rating | 1 A |
| Voltage Rating | 250 V |
| Operating Temperature Range | -20 °C to +60 °C |
| Insulation Material | PVC |
| Cable Construction | Multi-conductor, ribbon |
| Net Weight | 0.6 kg (1.3 lb) |
Industry Applications for the ABFM08S201
The 8-channel capacity allows efficient grouping of multiple analog inputs, reducing wiring complexity. In industries such as water treatment, chemical processing, or manufacturing, the ABFM08S201 provides a cost-effective and reliable interface. Its 2-meter cable length offers flexibility for cabinet layouts, while the PVC insulation ensures durability in typical industrial conditions.
Installation and Setup Guidance
When integrating the ABFM08S201 into your system, ensure the connector is securely mated with the compatible analog input module (e.g., 140AVI03000 or 140ACI03000). The SUB-D 25-way connector provides a positive locking mechanism; verify that all pins are aligned before tightening the screws. Route the ribbon cable away from high-voltage or high-noise sources to maintain signal quality. The AWG 24 wire section is suitable for standard analog signals; no special termination tools are required beyond a typical wire stripper for 0.22 mm² conductors.
Maintenance and Reliability
The ABFM08S201 is built for long-term service with PVC insulation and a multi-conductor ribbon construction that resists flexing fatigue. Periodic inspection of the connector and cable for physical damage or loose connections is recommended, especially in environments with vibration or temperature extremes. The wide operating temperature range (-20 °C to +60 °C) ensures reliable performance in most industrial settings. No special maintenance is required beyond routine visual checks.
Reliable Analog Input Connectivity for Modicon Quantum Systems

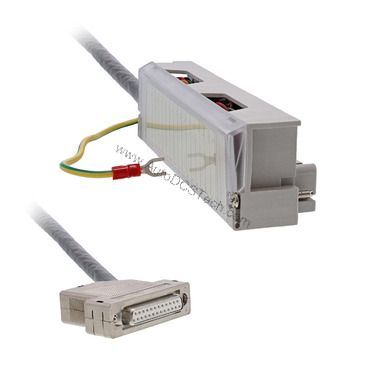

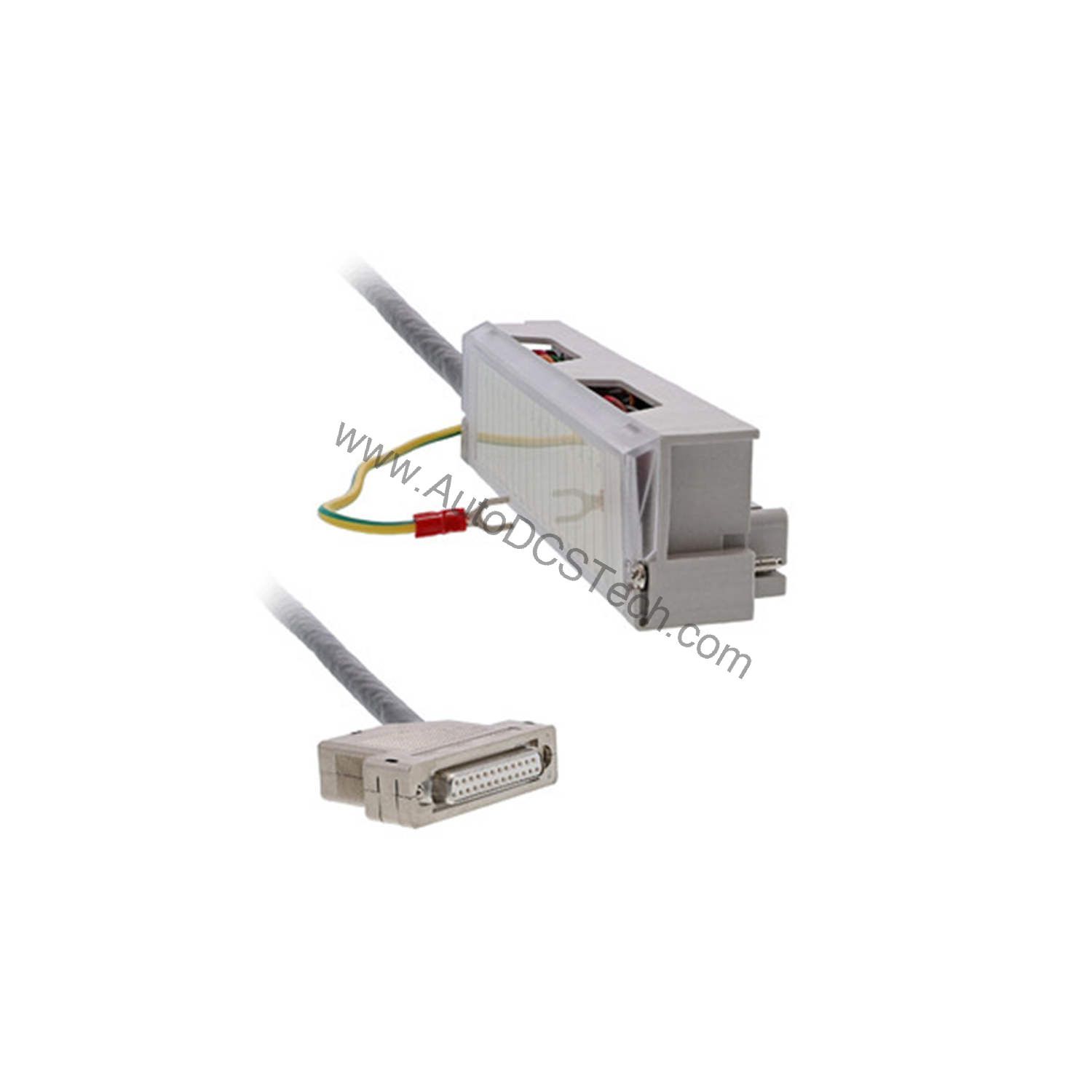

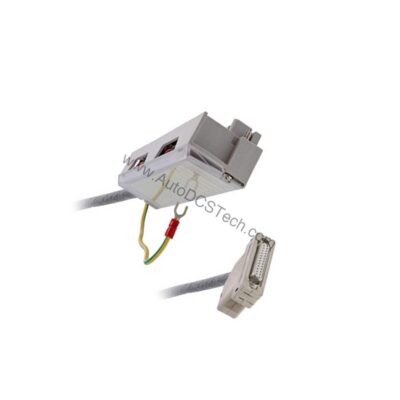

The ABFM08S201 cabled connector from Schneider Electric is a critical accessory for Modicon Quantum PLCs, designed to interface with analog input modules. This connector simplifies wiring and ensures signal integrity for up to 8 channels, making it an essential component for precise data acquisition in industrial automation. Whether you are upgrading an existing system or building a new control panel, this connector offers a robust solution for reliable analog signal transmission.
Compatibility and Integration
This connector is specifically designed for Modicon Quantum PLCs and is compatible with analog input modules such as the 140AVI03000 and 140ACI03000. It supports analog input signals across 8 channels, making it a direct replacement or upgrade for existing cabling. The SUB-D connector standard ensures broad compatibility with other Quantum accessories. Before purchasing, verify that your specific module and system configuration match the connector's specifications.
Selection Guide and Purchasing Advice
When selecting the ABFM08S201, consider your channel count and cable length requirements. With 8 channels and a 2-meter cable, this connector suits many typical panel layouts. If you need longer runs or different connector types, consult your system documentation. At AutoDCSTech, we stock the ABFM08S201 and can advise on compatibility with your existing Modicon Quantum setup. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | ABFM08S201 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
