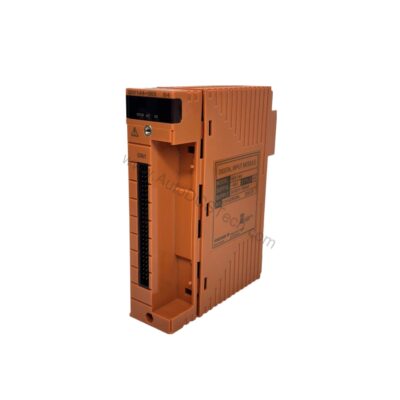

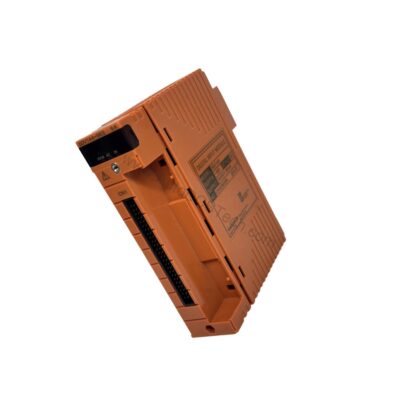

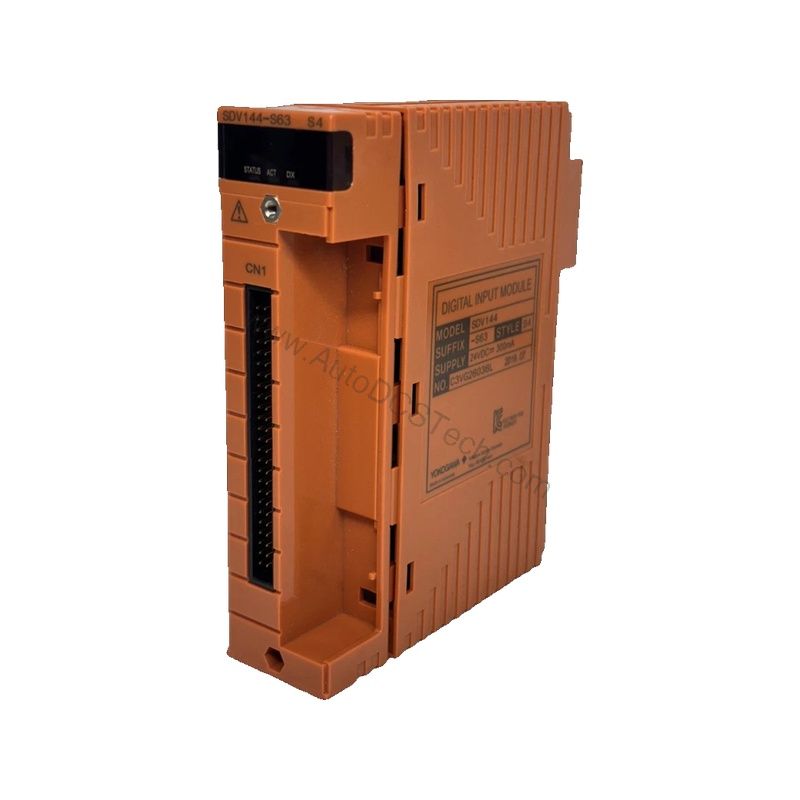

SDV144-S63: 16 Channel 24 V DC Digital Input Module
The SDV144-S63 is the 16 Channel 24 V DC Digital Input Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 0.41 kg.
On this unit 16 channel 24 v dc digital input module is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. 16 channel 24 v dc digital input module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0.41 kg against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | SDV144-S63 |
| Model | SDV144 |
| Number of inputs | 16-channel, module isolation |
| Input signal | No-voltage contact (ON: 1 kΩ max, OFF: 100 kΩ min) |
| Input current | 6 mA ±20% (24 V DC, 0 Ω input) |
| External power supply | 24 V DC +20%/-10%, 200 mA capacity |
| Input response time | 40 ms max |
| Withstand voltage | 2 kV AC for 1 minute |
| Current consumption | 290 mA max (5 V DC), 140 mA max (24 V DC) |
| Weight | 0.41 kg |
Availability & Condition at AutoDCSTech
| Part Number | SDV144-S63 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
Datasheet & Downloads
Specification sheet for SDV144-S63. For lead time, condition and price, contact our team.
