Product Overview

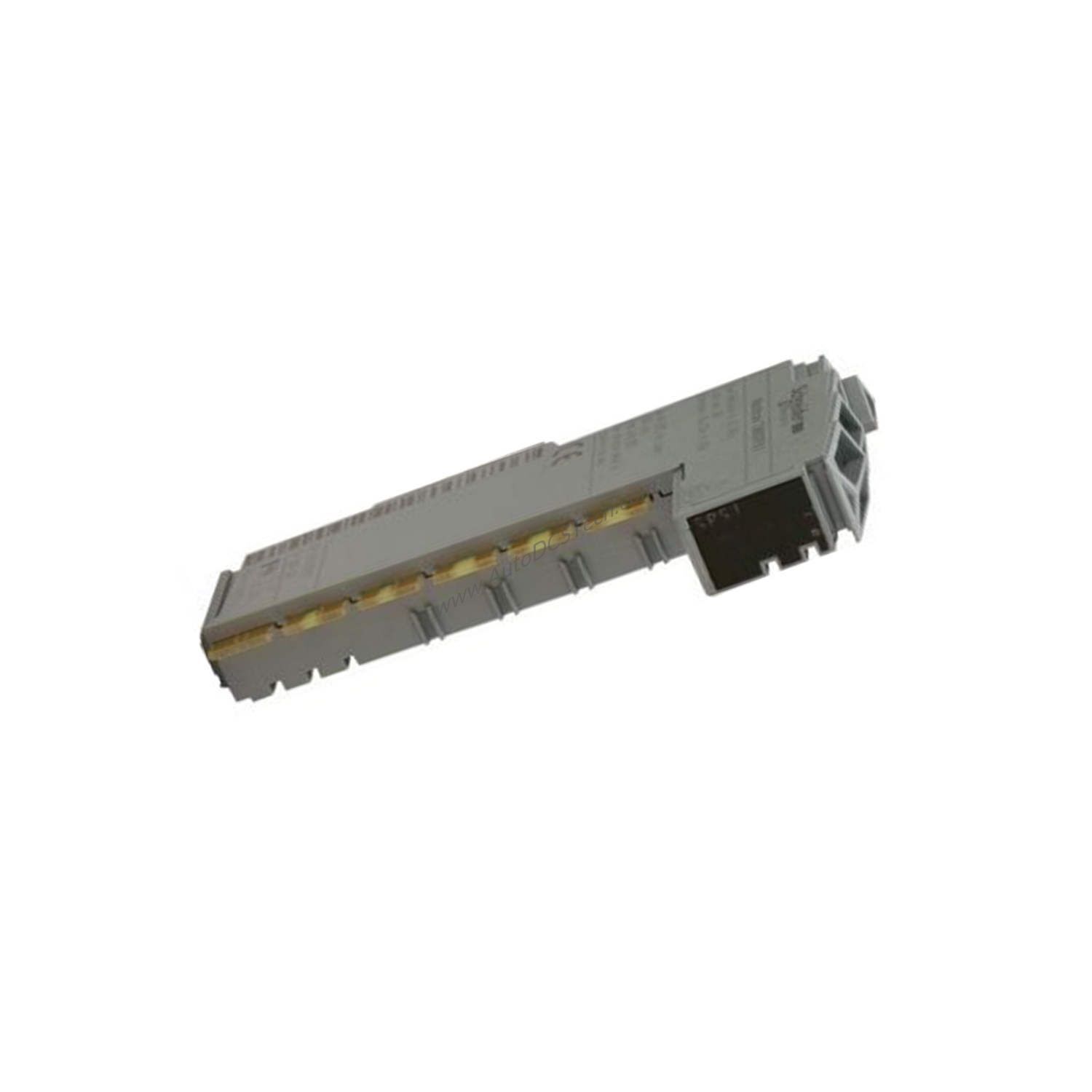

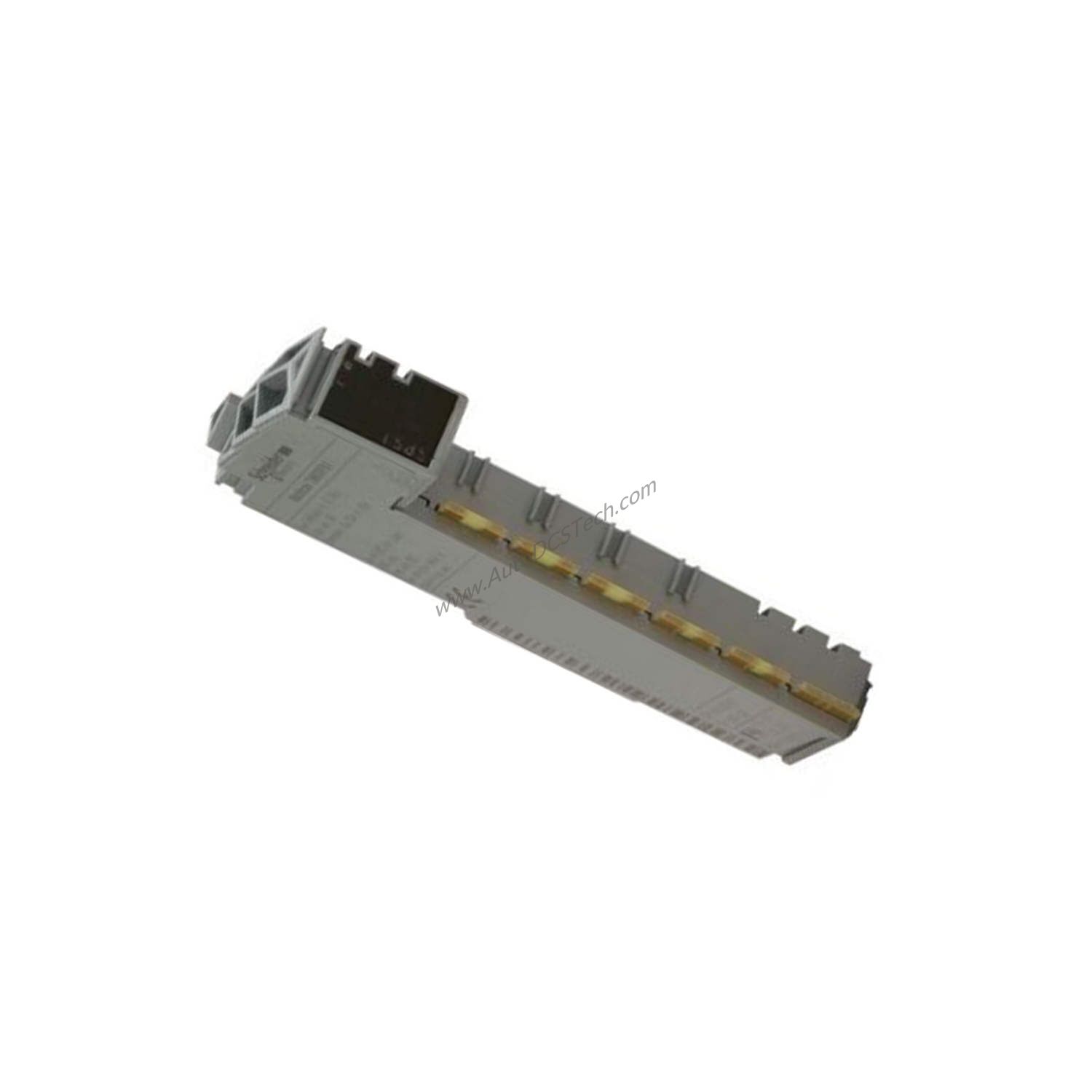

When your Modicon TM5 system requires reliable power distribution for I/O modules, the TM5SPS1 delivers a robust solution. This power distribution module from Schneider Electric supplies 24 V DC to I/O modules, ensuring stable operation in demanding industrial environments. With a current supply of 10 A for the I/O power segment, it handles multiple modules efficiently. The module is part of the Modicon TM5 range and is compatible with Modicon M258 and LMC058 controllers.
Technical Specifications Breakdown
The TM5SPS1 operates at a rated supply voltage of 24 V DC. It supplies up to 10 A for the I/O power segment, providing ample current for connected modules. Maximum power dissipation is only 0.8 W, contributing to energy efficiency. The module consumes 25 mA or less from the 24 V DC supply. Short-circuit protection is provided by an external 10 A fuse, safeguarding the system. The module carries CE marking and complies with standards including CSA C22.2 No 142, CSA C22.2 No 213, UL 508, and IEC 61131-2.
Industry Applications
In automated manufacturing lines, the TM5SPS1 distributes power to I/O modules that monitor sensors and control actuators. Its wide operating temperature range of -10 to 55 °C (horizontal installation without derating) suits factory floors with varying thermal conditions. For vertical installations, it operates from -10 to 50 °C. The module also withstands vibration up to 1 gn at 8.4 to 150 Hz on DIN rail and shock resistance of 15 gn for 11 ms, making it suitable for applications near heavy machinery.
Installation & Setup Guidance
Mount the TM5SPS1 on a standard DIN rail in your control cabinet. Ensure the ambient temperature stays within the specified range for your installation orientation. Use an external 10 A fuse for short-circuit protection as recommended. Connect the 24 V DC supply to the module's input terminals. The module's compact dimensions (10.6 cm length, 6.0 cm width, 2.0 cm height) allow easy integration into crowded cabinets. Verify compatibility with your logic controller or motion controller before installation.
Maintenance & Reliability
The TM5SPS1 is designed for long-term reliability with minimal maintenance. Its low power dissipation of 0.8 W reduces heat buildup in the cabinet. Periodically inspect the module for dust accumulation and ensure ventilation openings remain clear. Check the external fuse condition during routine system checks. The module operates without derating up to 55 °C in horizontal installation, but if ambient temperatures exceed this, apply the derating factor as specified. For vertical installations, the maximum operating temperature is 50 °C.
Compatibility & Integration
The TM5SPS1 is compatible with Modicon M258 logic controllers and Modicon LMC058 motion controllers. It integrates seamlessly into Modicon TM5 systems, providing power to 24 V DC I/O modules. The module supports DC network type and is designed for use in industrial control systems that comply with IEC 61131-2 standards. Its electromagnetic compatibility meets EN/IEC 61000-4-6 and CISPR 11 requirements, ensuring reliable operation in electrically noisy environments.
Selection Guide & Purchasing Advice
Before purchasing the TM5SPS1, verify that your system requires a 24 V DC power distribution module for I/O modules. Confirm compatibility with your controller model (M258 or LMC058). Consider the number of I/O modules you need to power and ensure the total current draw does not exceed 10 A. The module is lightweight at 36.0 g, making it easy to handle during installation. SpareTechPLC stocks this module and can assist with availability and replacement options if needed.
Frequently Asked Questions
Q: What is the rated supply voltage for the TM5SPS1?
A: The rated supply voltage is 24 V DC.
Q: How much current can the TM5SPS1 supply?
A: It supplies 10 A for the I/O power segment.
Q: What is the operating temperature range for horizontal installation?
A: It operates from -10 to 55 °C without derating, and up to 60 °C with derating.
Q: Is the TM5SPS1 compatible with Modicon M258 controllers?
A: Yes, it is compatible with Modicon M258 and LMC058 controllers.
Q: What certifications does the TM5SPS1 have?
A: It carries CE marking and complies with CSA, UL 508, and IEC 61131-2 standards.
