Why Choose the TSX3710101 for Your Automation Needs?
When your production line demands a compact yet powerful controller that handles diverse analog signals and communicates reliably, the Schneider TSX3710101 micro PLC delivers. This unit from the TSX Micro PLCs family integrates seamlessly into existing systems, offering flexibility without complexity.

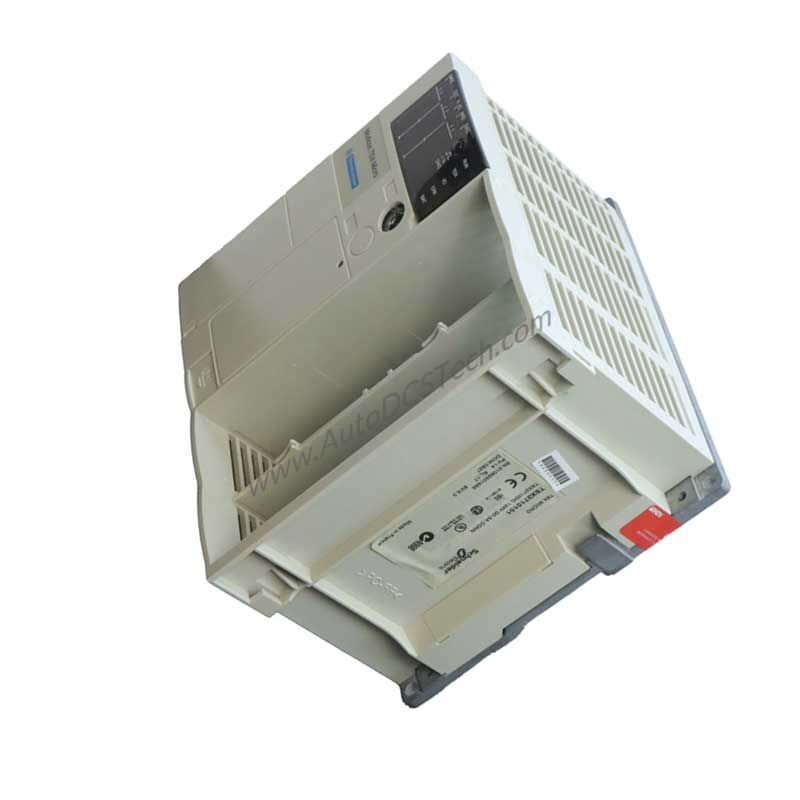

Product Overview
The TSX3710101 is a micro PLC engineered for versatile automation solutions. It operates within a 100-240 V AC voltage range and supports input currents from 2 mA up to 60 A, adapting to various project demands. With a compact footprint of 13.44 x 5.94 x 5.98 inches and a weight of 1.00 lbs (0.45 kg), it fits easily into control cabinets.
Technical Specifications Breakdown
- Power and Input Range: The voltage rating of 100-240 V AC and frequency of 50/60 Hz allow worldwide use. Input current spans from 2 mA to 60 A, covering both low-level sensors and higher-power devices.
- Analog I/O: Eight analog input slots (0 to 10 V) and one analog output slot (0 to 10 V) enable precise monitoring and control of analog processes.
- Memory and Execution: Flash memory (15 Kwords) and internal RAM (20 Kwords) store your logic. Execution times range from 0.13 µs for Boolean operations to 4.5 µs for arithmetic REAL floating operations, ensuring fast response.
- Communication: One serial link (TER/AUX) Uni-Telway at 19.2 kbit/s and one Modbus RTU at 19.2 kbit/s provide reliable connectivity.
- Environmental Tolerance: Operates in 32-140 °F (0-60 °C) and 10% to 95% humidity without condensation.
Industry Applications
- Manufacturing Lines: Use the analog inputs to monitor temperature or pressure sensors, and the analog output to control variable speed drives. The two slots allow for modular expansion with additional I/O.
- Building Automation: Manage HVAC systems with the TSX3710101, leveraging its Modbus RTU interface to communicate with building management systems.
- Process Control: The 0.13 µs Boolean execution speed handles high-speed discrete logic, while the 4.5 µs REAL floating operations support complex calculations.
Installation & Setup Guidance
Mount the TSX3710101 on a DIN rail or panel using the provided slots. Connect power to the 100-240 V AC terminals, ensuring proper grounding. Wire analog inputs and outputs using shielded cables to minimize noise. Configure the serial link for Uni-Telway or Modbus RTU via the programming software. The expandable memory slot accepts a PCMCIA card for up to 128 Kwords of RAM.
Maintenance & Reliability
To ensure long service life, keep the PLC within its temperature range (32-140 °F) and avoid condensation above 95% humidity. Periodically inspect connections and clean the enclosure with a dry cloth. The flash memory retains your program even without power, reducing downtime after outages.
Compatibility & Integration
The TSX3710101 integrates with Schneider Electric's TSX Micro PLC ecosystem. Use the Uni-Telway serial link for local programming and diagnostics, or the Modbus RTU interface for SCADA and HMI integration. The 2 slots accept TSX-specific modules for digital I/O, communication, or specialty functions.
Selection Guide & Purchasing Advice
Before ordering, verify that your application's voltage (100-240 V AC) and frequency (50/60 Hz) match the PLC's rating. Confirm the analog I/O count: 8 inputs and 1 output. If you need more memory, plan for a PCMCIA card. SpareTechPLC stocks the TSX3710101 and compatible accessories, ensuring fast delivery for your automation projects.
Frequently Asked Questions
Q: Can the TSX3710101 handle 60 A input current directly?
A: The input current rating of 2 mA to 60 A refers to the range the PLC can measure or switch via external sensors and actuators, not direct current through the unit. Always use appropriate external protection.
Q: How do I expand the internal RAM beyond 20 Kwords?
A: Insert a PCMCIA card into the expansion slot to increase RAM up to 128 Kwords. This supports larger programs and data logs.
Q: What is the maximum output current from the analog output?
A: The analog output supports 0 to 10 V signals. The maximum output current is 0.5 A, suitable for driving small actuators or signal converters.
Q: Can I use both Uni-Telway and Modbus RTU simultaneously?
A: Yes, the TSX3710101 has one serial link for Uni-Telway (TER/AUX) and a separate Modbus RTU interface, both operating at 19.2 kbit/s.
Q: Is the TSX3710101 suitable for outdoor use?
A: Its temperature range of 32-140 °F (0-60 °C) and humidity tolerance of 10% to 95% without condensation make it suitable for indoor industrial environments, but not for direct outdoor exposure without additional protection.
