Introduction

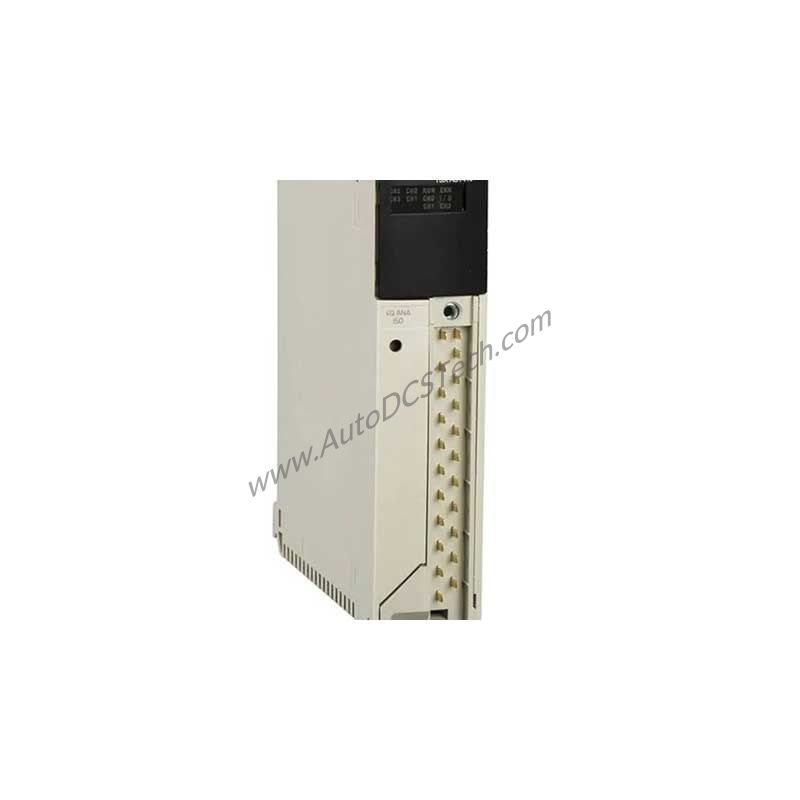

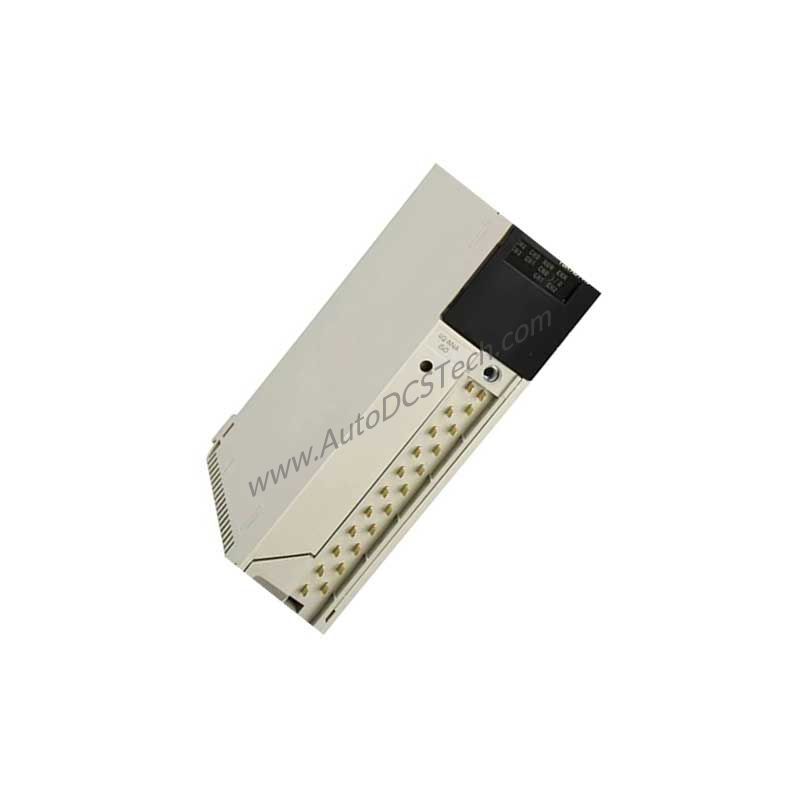

When your industrial automation system demands precise analog control, the Schneider TSXASY410 delivers reliable performance. This analog output module is part of the TSX Micro PLCs series, designed for applications requiring accurate voltage or current signals. With four analog output channels, it provides the flexibility needed for diverse control tasks.
Technical Specifications Breakdown
Power Supply and Consumption
The TSXASY410 operates on a 24 V DC power supply and consumes only 3 W, making it energy-efficient for continuous operation. This low power draw reduces heat generation and extends component life in control cabinets.
Output Configurations
This module supports both voltage and current outputs. The voltage output range is 0 to 10 V, while the current output range spans 0 to 20 mA. Each channel can be individually configured, offering versatility for connecting to actuators, valves, or drives. The load impedance requirements are a minimum of 2 kΩ for voltage output and a maximum of 500 Ω for current output, ensuring stable signal transmission.
Performance and Accuracy
With a 12-bit resolution and accuracy of ±0.2% of full scale, the TSXASY410 provides precise analog control. The response time is 1 ms per channel, enabling fast updates for closed-loop systems. These specifications make it suitable for applications where tight control is critical.
Industry Applications
Process Control
In chemical or pharmaceutical plants, the TSXASY410 can control proportional valves or variable frequency drives. The 0 to 20 mA current output is ideal for long-distance signal transmission, reducing noise interference. The module's fast response time ensures quick adjustments to process variables.
Building Automation
For HVAC systems, the voltage output (0 to 10 V) can modulate damper actuators or fan speed controllers. The module's compact size (125 x 100 x 40 mm) fits easily into existing control panels, and its operating temperature range of 0 to 60°C suits indoor environments.
Installation & Setup Guidance
Mount the TSXASY410 in a standard TSX Micro PLC rack. Use the screw terminal block for electrical connections, ensuring proper torque to avoid loose wires. For current output, connect loads with impedance less than 500 Ω; for voltage output, use loads greater than 2 kΩ. Verify the power supply is 24 V DC and within the module's specifications before powering up. Always follow the manufacturer's wiring diagram for the 20-pin terminal block.
Maintenance & Reliability
Regularly inspect the module for dust accumulation and ensure the IP20 enclosure remains intact. The module is designed for reliable operation in humidity levels from 5 to 95% non-condensing. For long-term reliability, verify that the ambient temperature stays within 0 to 60°C. The TSXASY410 includes overload and short-circuit protection, reducing the risk of damage from wiring faults.
Compatibility & Integration
The TSXASY410 integrates seamlessly with the TSX Micro PLCs platform. It communicates via the backplane bus, requiring no additional configuration for basic operation. The module is compatible with Schneider Electric's programming software for analog output scaling and calibration. For system expansion, multiple TSXASY410 modules can be added to a single rack.
Selection Guide & Purchasing Advice
Before purchasing, confirm your PLC rack has an available slot for a standard-format module. Verify the power supply capacity, as the module draws 900 mA at 5 V DC from the backplane. For replacement or new installations, SpareTechPLC offers the TSXASY410 with fast shipping and expert support. Contact our team to verify current availability and compatibility with your existing system.
Frequently Asked Questions
Q: What is the resolution of the TSXASY410?
A: The module has a 12-bit resolution, providing 4096 discrete output steps for precise control.
Q: Can I use both voltage and current outputs simultaneously?
A: Yes, each of the four channels can be independently configured for either voltage (0 to 10 V) or current (0 to 20 mA) output.
Q: What is the maximum load capacitance for current output?
A: The maximum load capacitance is 0.1 µF, ensuring stable operation with capacitive loads.
Q: Does the module require external power?
A: It requires a 24 V DC external power supply for operation, plus backplane power from the PLC rack.
Q: What certifications does the TSXASY410 hold?
A: It carries CE marking and complies with standards including IEC 61131-2 and UL 508.
