Product Overview

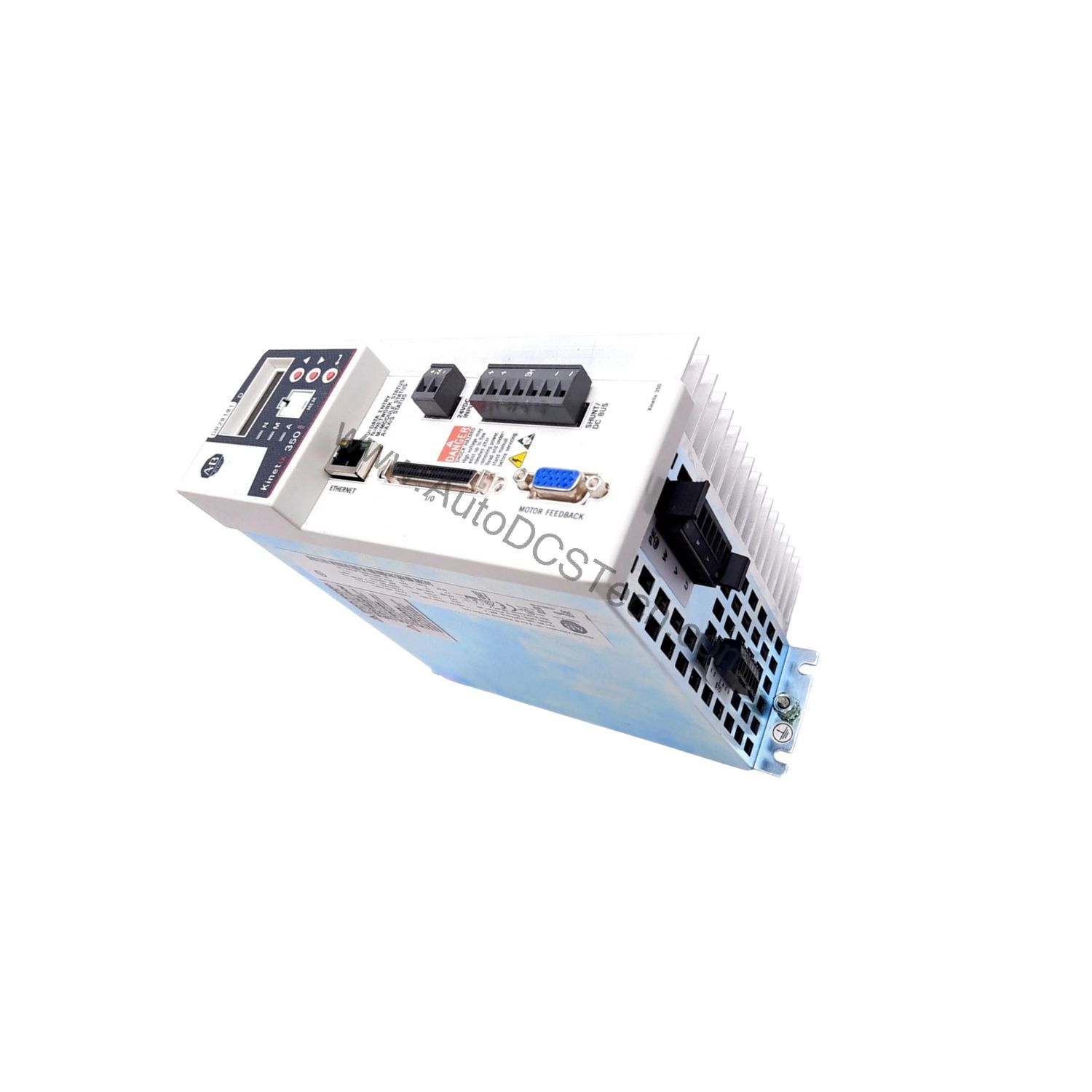

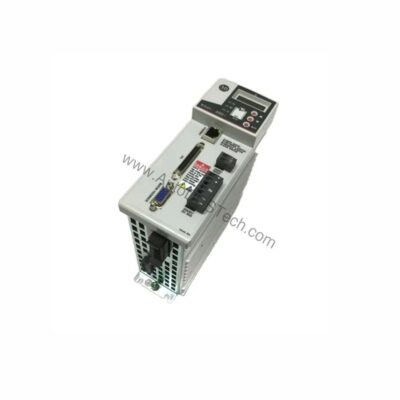

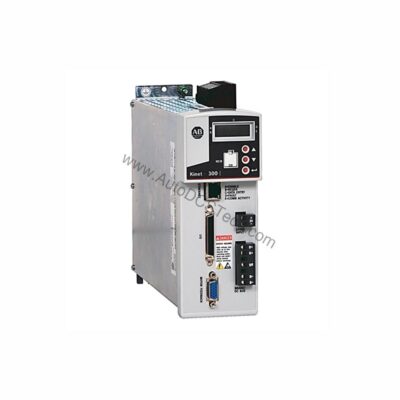

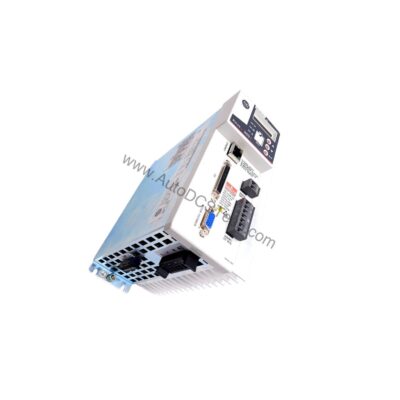

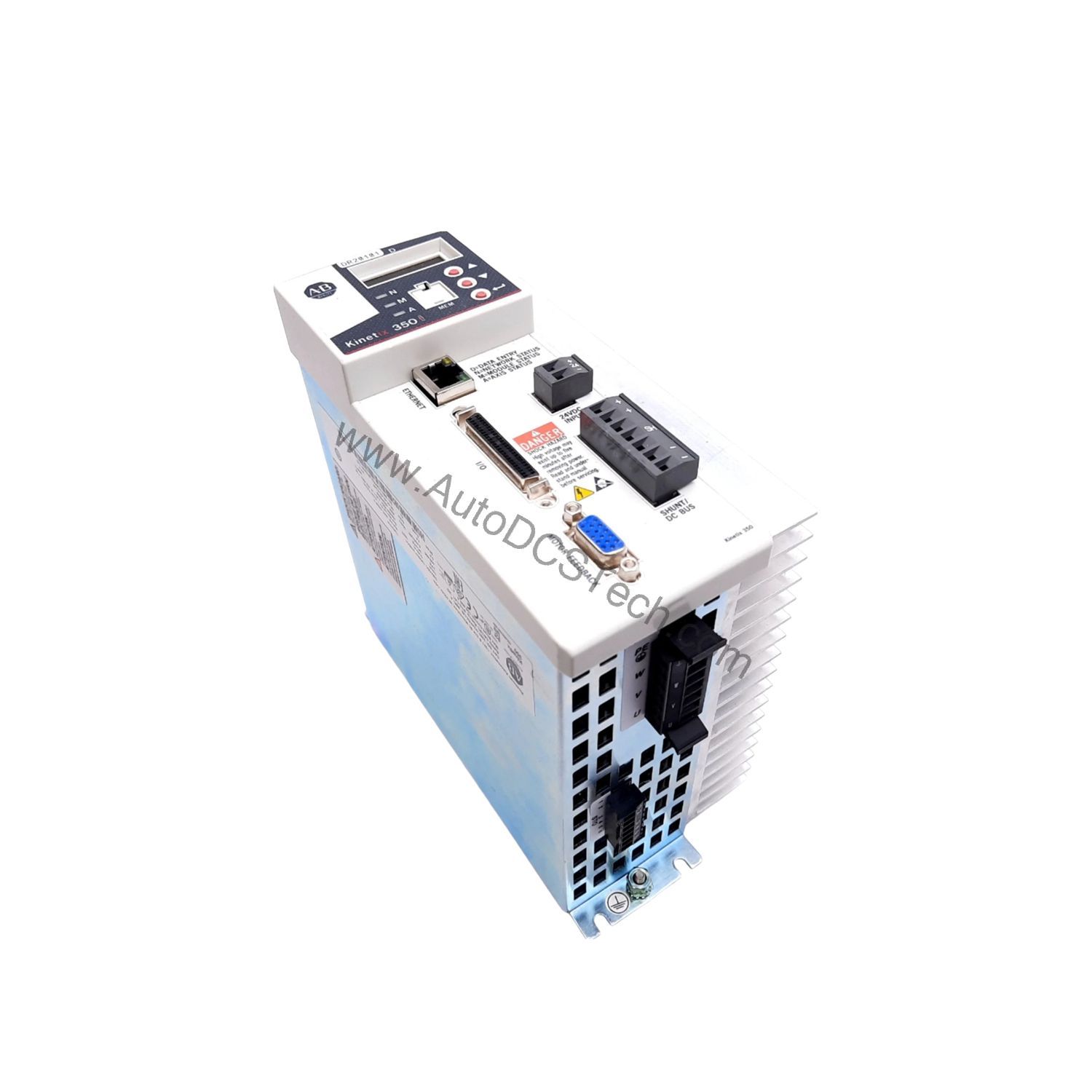

The Allen-Bradley 2097-V31PR2-LM is a Kinetix 350 Ethernet/IP indexing servo drive designed for single-axis motion control in industrial automation. Part of the Allen-Bradley Kinetix 350 family, this drive integrates motion control on the Ethernet/IP network, enabling efficient control of servo motors in compact spaces. With an 800 W power rating and 5.7 Amperes continuous output current (0-peak), it delivers reliable performance for applications requiring precise indexing and positioning. The drive features a Safe Torque-Off function for enhanced operator safety and a 120/240 Volts (AC), 1 Phase input voltage.
Technical Specifications Breakdown
Key parameters for the 2097-V31PR2-LM are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2097-V31PR2-LM |
| Power Rating | 800 W |
| Continuous Output Current (0-peak) | 5.7 Amperes |
| Input Voltage | 120/240 Volts (AC), 1 Phase |
| 120 Volts Doubler Mode | Yes |
| Integrated AC (EMC) Line Filter | No |
| Safe Torque-Off | Yes |
| Dimensions | 9.37 x 7.29 x 3.08 in (238 x 185.1 x 78.2 mm) |
| Weight | 3.3 lbs (1.5 kg) |
Industry Applications
This drive is well-suited for packaging machinery, material handling systems, and assembly lines where precise indexing and speed control are critical. The Ethernet/IP network integration allows seamless communication with PLCs and other automation devices, reducing wiring and setup time. The compact design helps save cabinet space while the Safe Torque-Off feature supports safe maintenance procedures.
Installation & Setup Guidance
Mount the drive in a clean, dry environment with adequate ventilation. Ensure the input voltage matches the 120/240 Volts (AC), 1 Phase specification. Use appropriate circuit protection as per local codes. Connect the Ethernet/IP cable to the network port and configure the drive using Rockwell Automation software. Verify the Safe Torque-Off wiring for proper operation.
Maintenance & Reliability
Periodically inspect the drive for dust accumulation and ensure cooling fans (if present) are unobstructed. Operate within the specified temperature and humidity ranges to maximize reliability. Check all connections for tightness during routine maintenance.
Compatibility & Integration
The 2097-V31PR2-LM integrates with Allen-Bradley Kinetix 350 series components and supports Ethernet/IP communication for coordinated motion control. It is compatible with compatible servo motors and can be programmed for indexing, positioning, and speed control applications.
Selection Guide & Purchasing Advice
When selecting this drive, verify that the power rating and output current meet your motor requirements. For availability and lifecycle status, contact AutoDCSTech. Our team can help confirm compatibility and provide support for your application.
Availability & Condition at AutoDCSTech
| Part Number | 2097-V31PR2-LM |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
