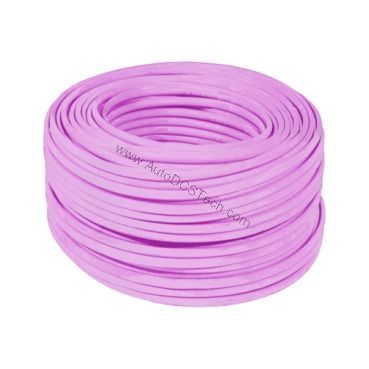

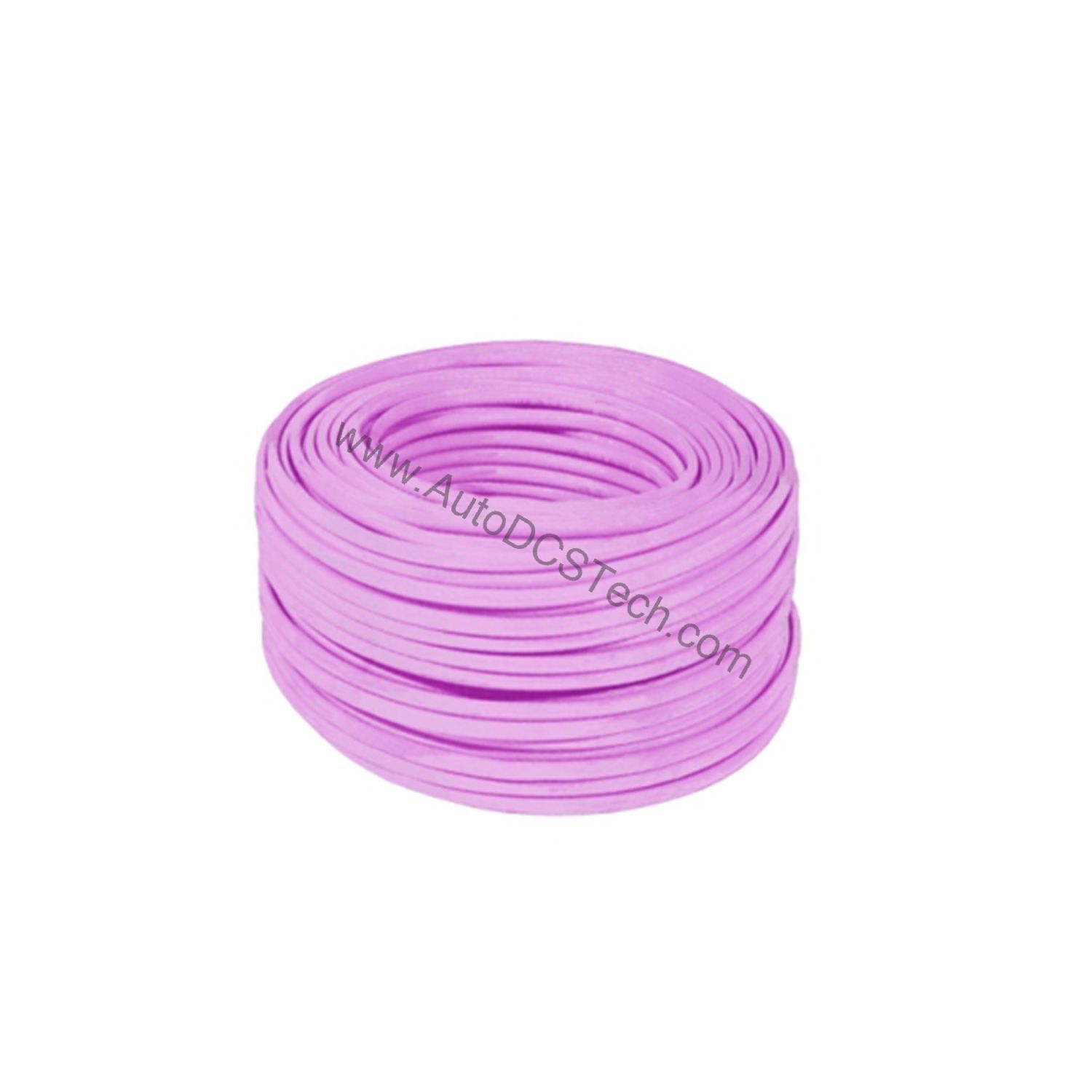

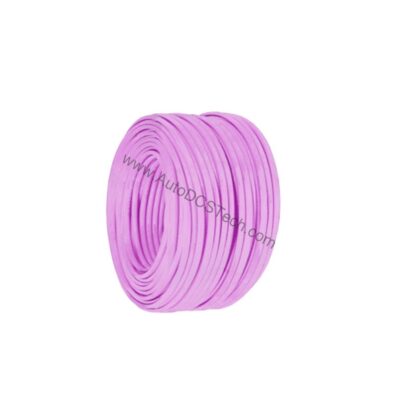

Schneider TSXCANCA100 CANopen Standard Cable 100m for Twido

Technical Specifications Breakdown

Key parameters for the TSXCANCA100 are listed below for quick reference:

Practical Applications in Automation

Use it in conveyor systems, packaging lines, or material handling where long-distance communication is required. The 100-meter length covers extensive layouts without needing repeaters, simplifying installation.

Installation and Setup Guidance

When installing the TSXCANCA100, route the cable away from high-voltage lines to avoid electromagnetic interference. Secure the cable with appropriate supports every 30 cm to prevent strain on connectors. Ensure the IP20 rating is respected by using the cable only in clean, dry environments or within an enclosure. Terminate both ends of the CANopen bus with 120-ohm resistors as per standard practice.

Maintenance and Reliability

Periodically inspect the cable for cuts, abrasions, or kinks, especially near connection points. The IEC 60332-1 flame retardant rating adds safety in case of fire. Keep the cable free of moisture and dust to maintain signal integrity. Replace any damaged sections immediately to prevent network faults.

Reliable CANopen Connectivity for Twido Systems

The Schneider TSXCANCA100 is a standard CANopen cable designed for use with Twido controllers. As a maintenance engineer, you need dependable connections that minimize downtime. This cable delivers a robust link for your CANopen bus network, ensuring consistent data flow in demanding industrial environments.

Compatibility and Integration

This cable is part of the Schneider CANopen range and is fully compatible with Twido controllers. It works with any standard CANopen device that uses a 5-pin M12 or open-style connector (verify your device's connector type). The CE marking confirms compliance with European standards for industrial environments.

Selection Guide and Purchasing Advice

Choose the TSXCANCA100 when you need a pre-terminated, 100-meter CANopen cable for your Twido system. At AutoDCSTech, we stock this exact part to keep your operations running. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting Common Issues

If communication errors occur, first check that the cable is not damaged and that all connectors are tight. Verify that the bus termination resistors are correctly installed. Use a CAN analyzer to check for signal reflections caused by improper cabling. Replace the cable if intermittent faults persist.
