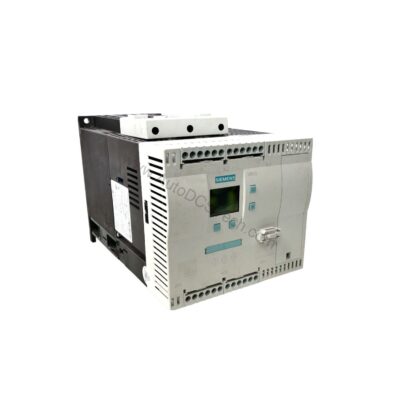

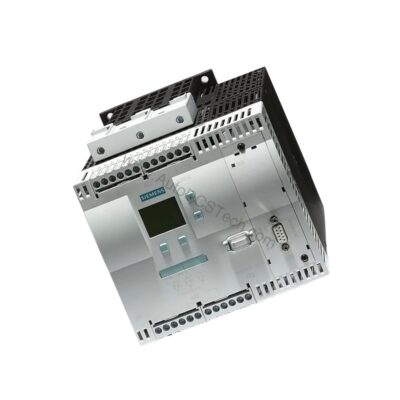

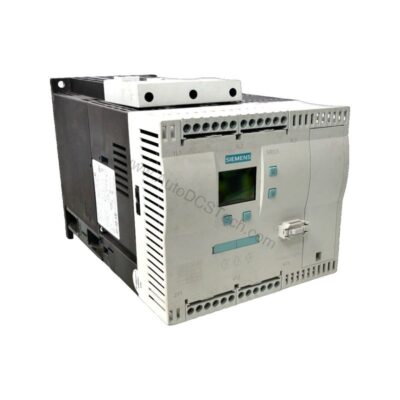

3RW4427-1BC44 93A Soft Starter 200-460VAC

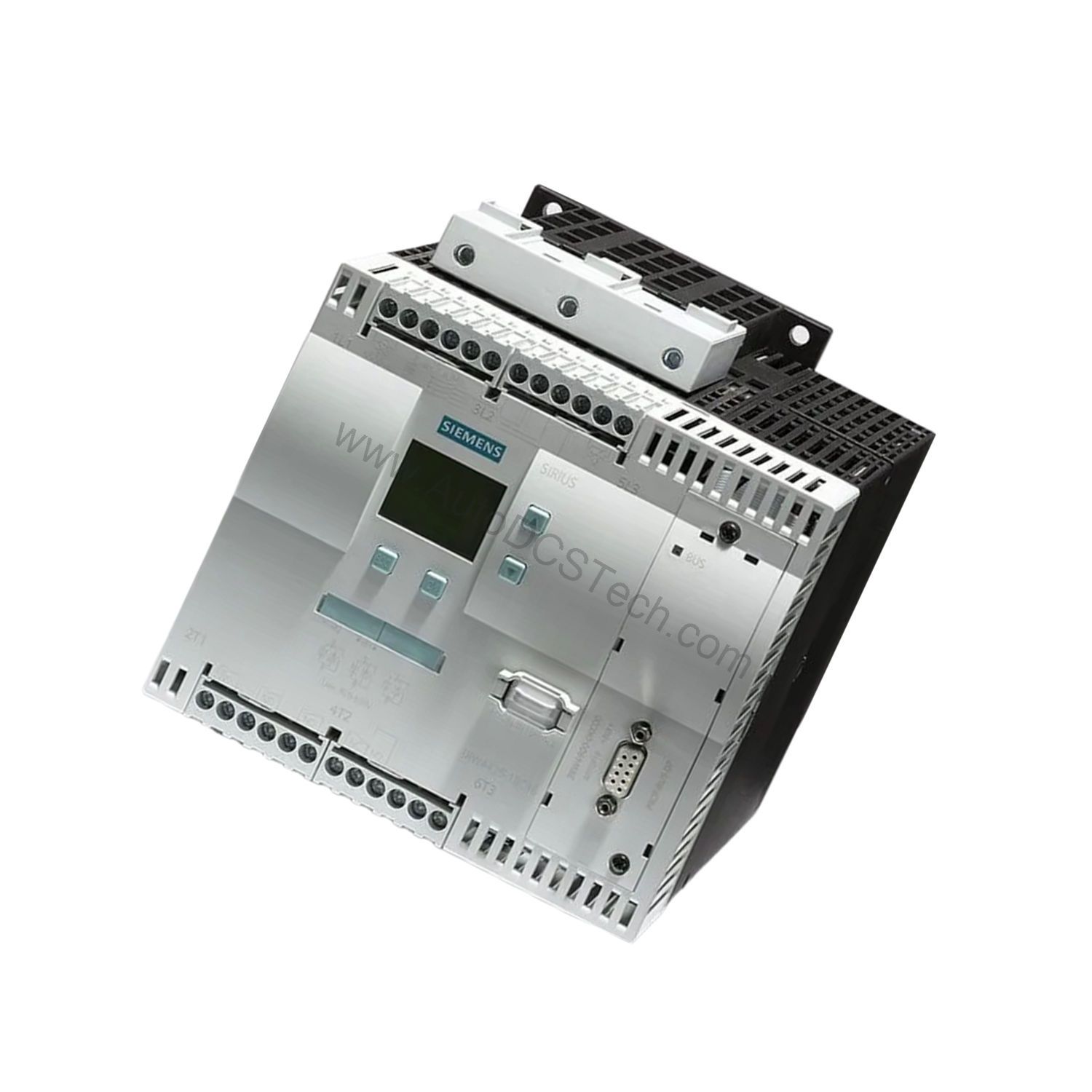

Introduction to the Siemens 3RW4427-1BC44 Soft Starter

When motor starting demands reliability and efficiency, the 3RW4427-1BC44 from Siemens SIRIUS family provides a robust solution. This soft starter is engineered for three-phase motors, offering a rated operating current of 93 A at 400 V and 40 °C in standard circuit. It supports an operating voltage range of 200–460 V AC, making it versatile for various industrial applications.

With integrated bypass contact system and thyristors, the 3RW4427-1BC44 ensures smooth acceleration and reduced mechanical stress. Its intrinsic device protection and motor overload protection safeguard your equipment, while the adjustable current limitation allows precise control. The device also features thermistor motor protection evaluation and an external reset function, enhancing operational safety.

Key Features and Technical Specifications

• Rated operating current: 93 A at 40 °C (standard circuit), 161 A at 40 °C (inside-delta circuit).
• Operating voltage: 200–460 V AC (standard and inside-delta circuits).
• Mechanical power output: 45 kW at 400 V standard circuit, 90 kW at 400 V inside-delta circuit.
• Control supply voltage: 230 V AC at 50/60 Hz.
• Integrated bypass contact system: Yes, reduces power loss.
• Motor overload protection: Yes, with adjustable motor current from 18 A.
• Thermistor motor protection: Yes, evaluates motor temperature.
• Inside-delta circuit: Supported, enabling higher current ratings.

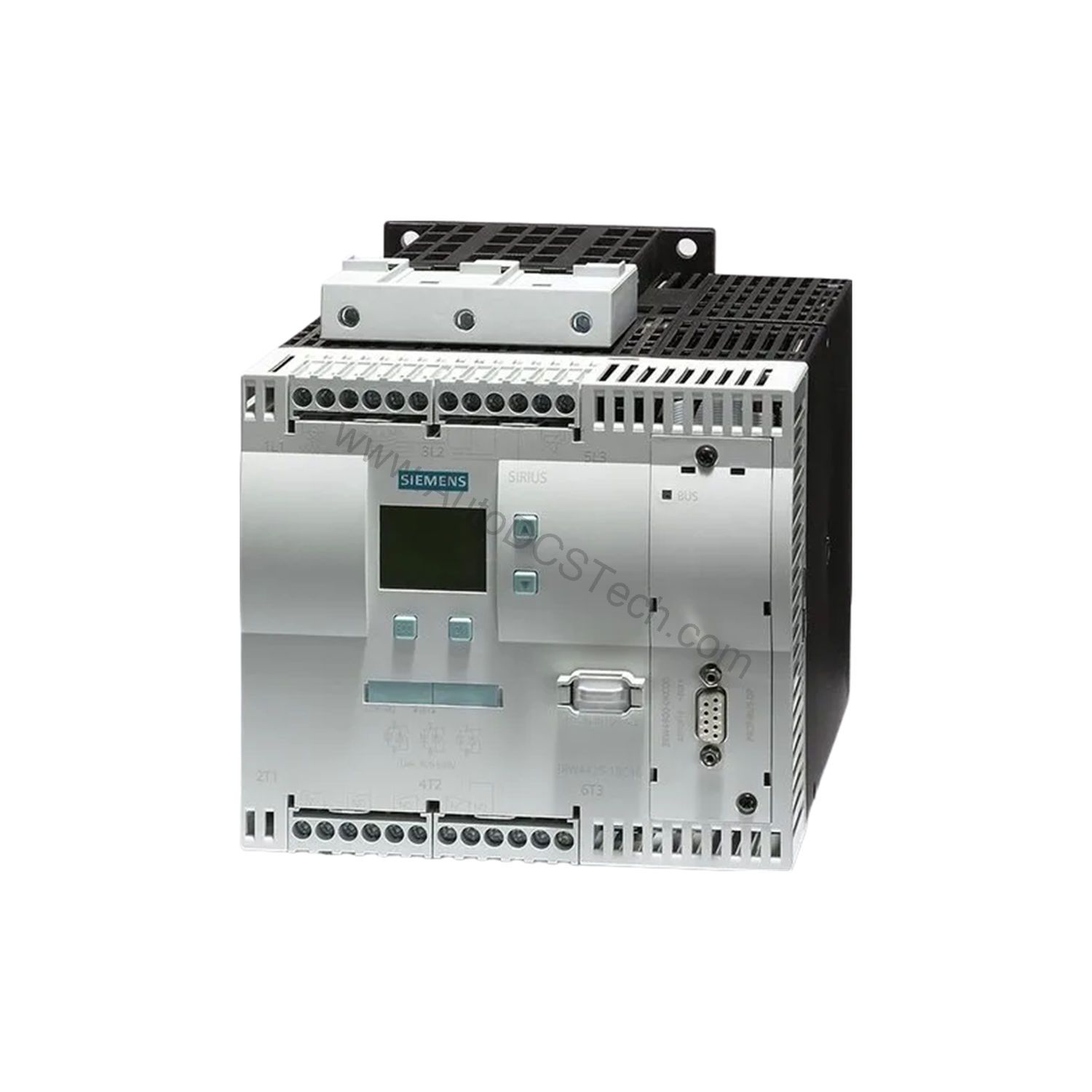

The 3RW4427-1BC44 includes a motor brake output and a display for fault signals. Its screw terminals for main and control circuits simplify wiring, while the compact design (170 mm width, 192 mm height, 270 mm depth) fits standard enclosures.

Applications and Use Cases

The 3RW4427-1BC44 is ideal for pumps, fans, compressors, and conveyors where controlled starting reduces wear and energy spikes. Its adjustable current limitation helps lower peak demand charges, contributing to operational cost savings. In inside-delta configuration, it can handle higher power motors up to 90 kW, making it suitable for heavy-duty applications. The device's wide voltage range and frequency tolerance (50–60 Hz) ensure compatibility across global installations.

Installation and Setup

Mounting the 3RW4427-1BC44 is straightforward with screw fixing. It can be rotated ±90° on a vertical surface and tilted ±22.5° to the front and back, offering flexible installation options. Maintain required spacing: 100 mm upward, 5 mm sideways, and 75 mm downward for proper airflow. Connect main conductors using box terminals (solid 2.5–16 mm², finely stranded 2.5–35 mm², etc.) and auxiliary circuits via screw terminals (2x 0.5–2.5 mm² solid). Ensure the control supply voltage matches 230 V AC at 50/60 Hz, with tolerances of -15%/+10%.

Maintenance and Reliability

Regular inspection of the soft starter ensures long-term reliability. The integrated bypass reduces heat generation, lowering stress on components. Check terminal connections periodically to prevent loosening due to thermal cycling. The device is rated for operation up to 60 °C ambient, but derating applies above 40 °C. At 50 °C, the rated current drops to 82 A; at 60 °C, to 72 A. Plan your load accordingly to avoid overheating. The IP00 protection class means it should be installed in a suitable enclosure to guard against dust and moisture.

Cost-Benefit Analysis

Investing in the 3RW4427-1BC44 reduces energy consumption during motor start by limiting inrush current. This lowers demand charges and extends motor life, reducing maintenance costs. The integrated bypass contact system cuts steady-state power losses to just 55 W typical, improving overall efficiency. With adjustable current limitation, you can fine-tune starting torque, avoiding mechanical damage and downtime. Over the product's lifespan, these savings often outweigh the initial purchase cost.

Troubleshooting and Common Issues

If the soft starter trips on overload, check the motor current setting against the actual load. The adjustable motor current range starts at 18 A, so ensure it is set correctly. For thermistor faults, verify the motor's PTC sensor is connected and functioning. If the device does not start, confirm the control supply voltage is within 230 V AC ±10% and frequency is 50/60 Hz. External reset functionality allows quick recovery after a fault. For persistent issues, consult the Siemens manual or contact AutoDCSTech for support.

Support and Availability

The Siemens 3RW4427-1BC44 is available at AutoDCSTech. Contact our team for current stock and pricing. We provide fast shipping and expert support to help you integrate this soft starter into your system.
