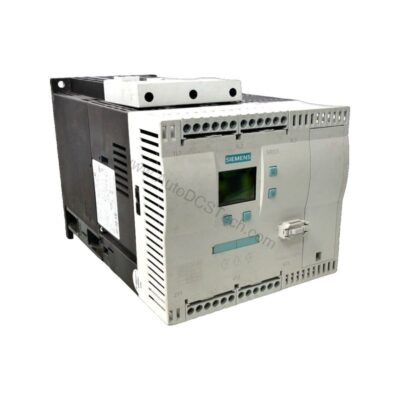

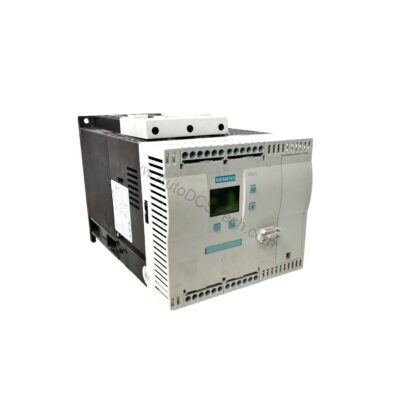

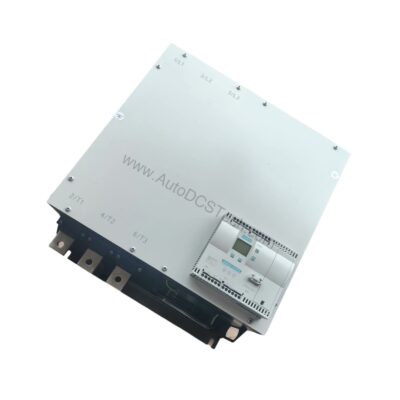

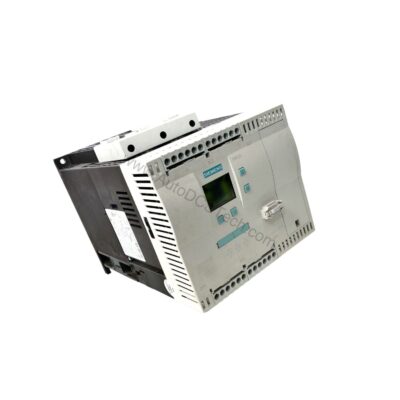

3RW4458-6BC44 970A Siemens Soft Starter

Introduction to the Siemens 3RW4458-6BC44 Soft Starter

When your application demands reliable motor starting under heavy loads, the 3RW4458-6BC44 from Siemens SIRIUS series provides a robust solution. This soft starter is engineered for three-phase motors, offering a rated operational current of 970 A at 400 V and 40 °C in standard circuit configuration. With its integrated bypass contact system and thyristor technology, it ensures smooth acceleration and reduced mechanical stress on your equipment.

Key Features and Technical Specifications

The 3RW4458-6BC44 is packed with features that enhance motor protection and operational flexibility. Below are the critical specifications extracted from the official datasheet:

• Rated operational current: 970 A at 40 °C (standard circuit), 850 A at 50 °C, 760 A at 60 °C.
• Inside-delta circuit current: 1680 A at 40 °C, 1472 A at 50 °C, 1316 A at 60 °C.
• Mechanical performance: 560 kW at 400 V standard circuit, 1000 kW at 400 V inside-delta circuit.
• Operating voltage: 200–460 V AC (standard and inside-delta circuits).
• Control supply voltage: 230 V AC at 50/60 Hz.
• Integrated bypass contact system: Yes.
• Motor overload protection: Yes, with adjustable current limitation.
• Insulation voltage: 690 V rated.
• Degree of pollution: 3 per IEC 60947-4-2.
• Protection class: IP00.

These parameters make the 3RW4458-6BC44 suitable for high-power applications where precise control and protection are paramount.

Applications and Use Cases

This soft starter is ideal for industries such as mining, water treatment, and material handling, where large motors drive conveyors, pumps, and fans. The inside-delta circuit capability allows it to handle motors up to 1000 kW, making it a versatile choice for heavy-duty processes. Its adjustable current limitation helps manage inrush currents, reducing wear on both the motor and the driven equipment.

Installation and Mounting Guidance

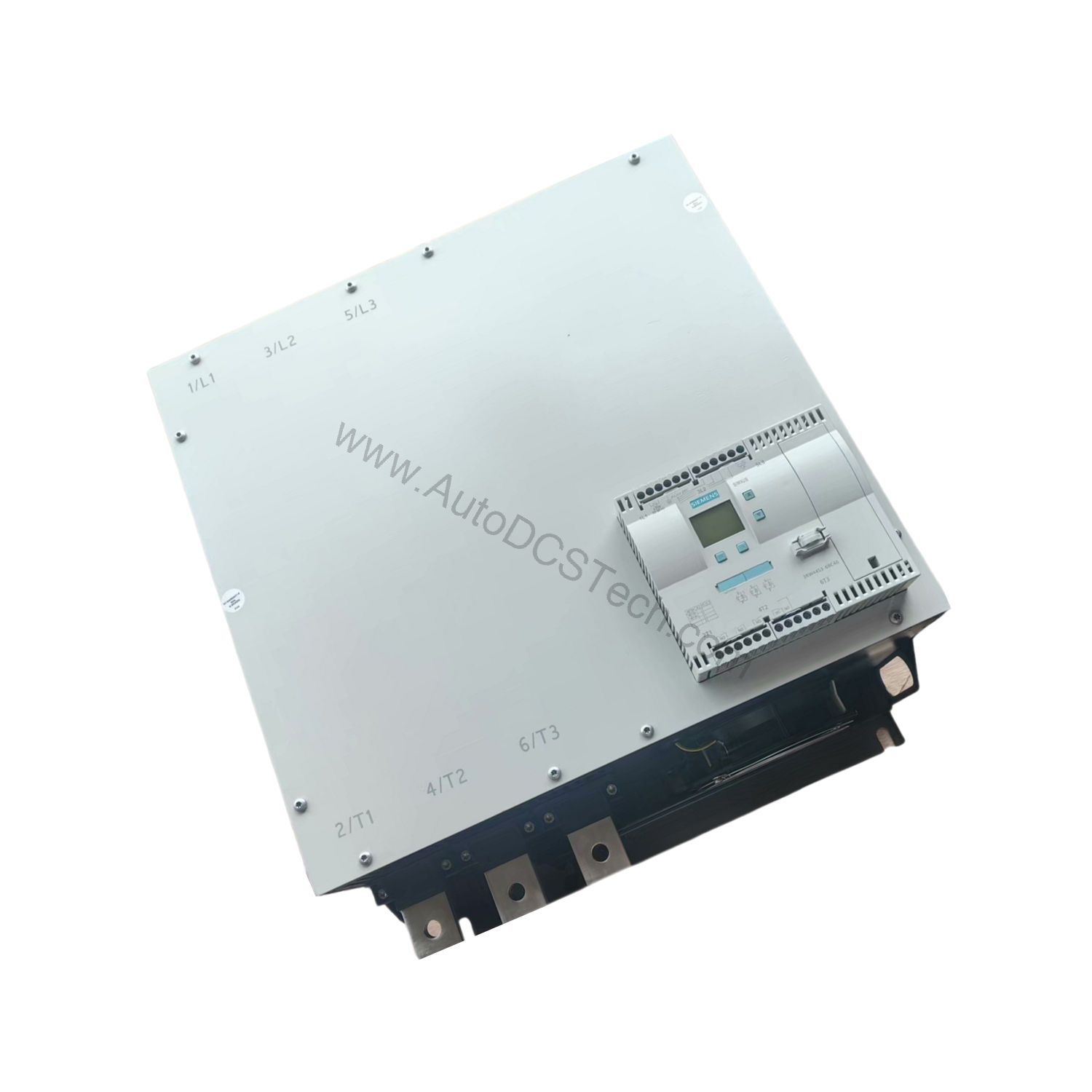

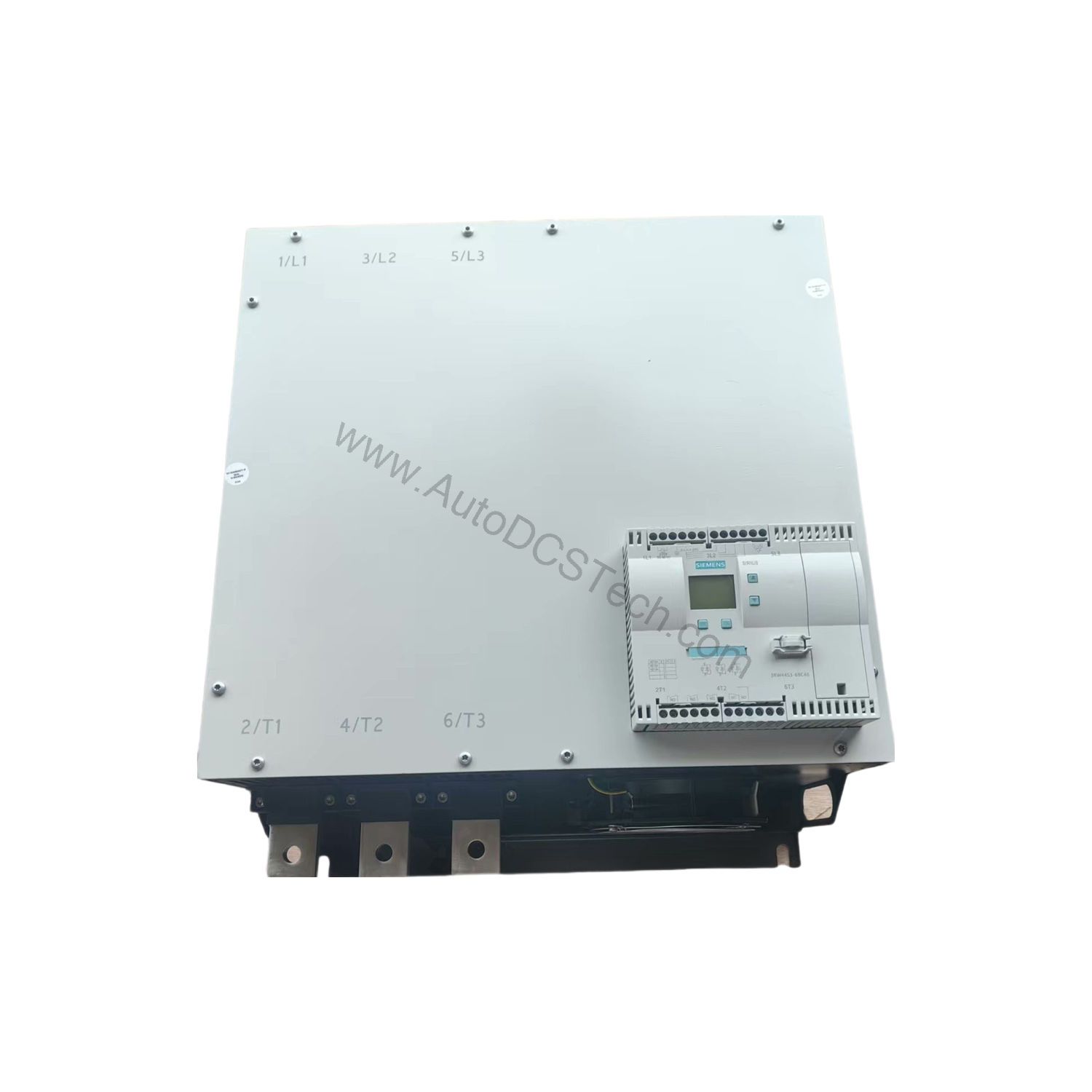

When installing the 3RW4458-6BC44, consider its physical dimensions: 510 mm width, 640 mm height, and 290 mm depth. The unit is designed for screw fixing and can be mounted on a vertical surface with +/-90° rotation and +/-22.5° tilt. For side-by-side mounting, maintain a minimum spacing of 100 mm upward, 5 mm at the side, and 75 mm downward to ensure proper airflow and heat dissipation. The main circuit connections use busbar connections, while auxiliary and control circuits use screw terminals.

Maintenance and Reliability

Regular inspection of the soft starter is essential to ensure long-term reliability. The integrated bypass contact system reduces heat generation during continuous operation, extending the lifespan of the thyristors. Given the IP00 protection class, the unit should be installed in a clean, dry environment to prevent dust and moisture ingress. Periodic checks of terminal tightness and visual inspection for any signs of overheating are recommended. Always follow the manufacturer's guidelines for maintenance procedures.

Compatibility and Integration

The 3RW4458-6BC44 operates with a control supply voltage of 230 V AC at 50/60 Hz, making it compatible with standard industrial control systems. It includes three NO contacts and one CO contact for auxiliary signaling, allowing integration with PLCs or other control devices. The unit supports external reset and thermistor motor protection evaluation, providing flexibility in system design.

Troubleshooting Common Issues

If the soft starter fails to start the motor, check the control supply voltage (230 V AC) and ensure the operating voltage is within the 200–460 V AC range. Overload conditions can be diagnosed by monitoring the adjustable motor current settings, which range from a minimum of 194 A. If the unit trips due to overheating, verify that the ambient temperature does not exceed 60 °C during operation. For persistent issues, consult the Siemens documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The Siemens 3RW4458-6BC44 is a phased-out product; the preferred successor is the SIRIUS 3RW5 series, specifically the 3RW5556-6HA14. However, AutoDCSTech may still have stock available. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with cross-reference guidance and ensure you get the right component for your application.
