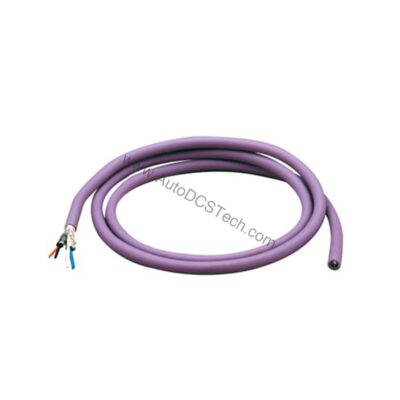

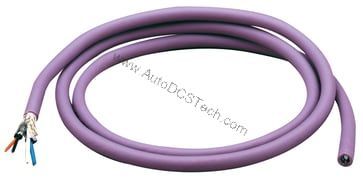

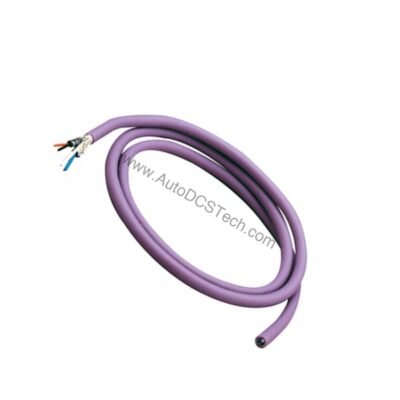

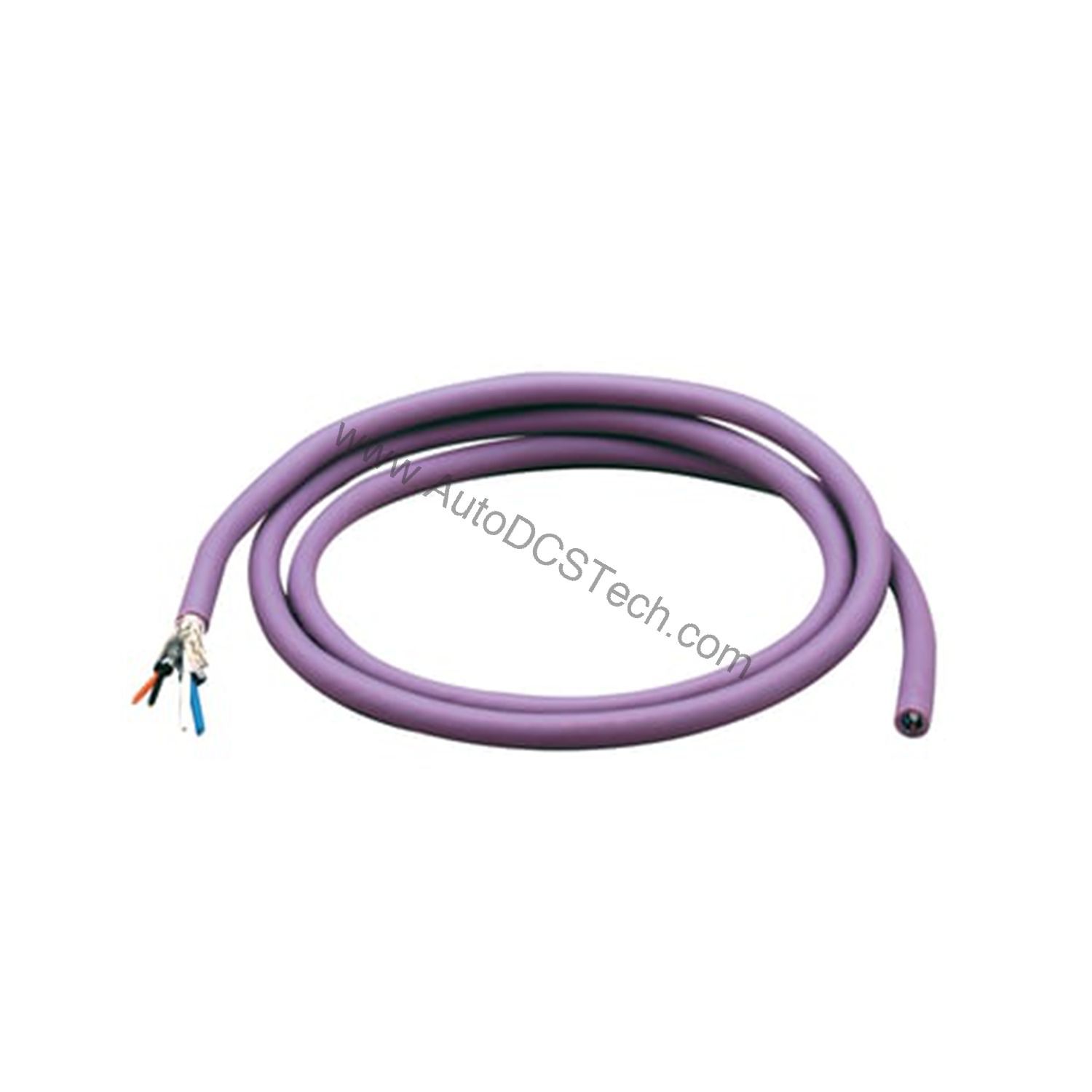

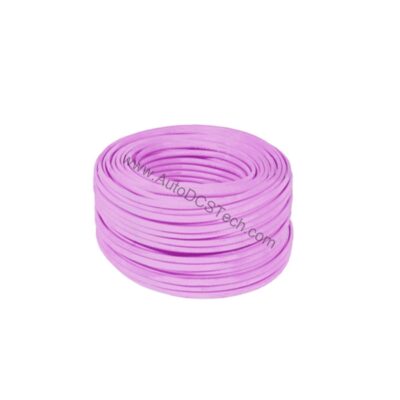

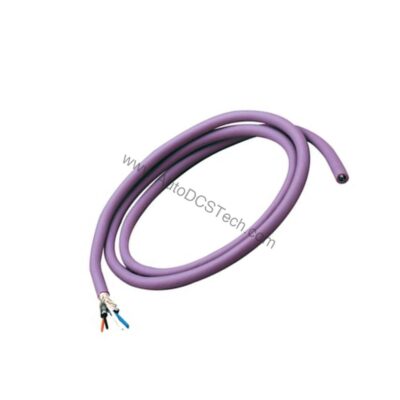

Schneider TSXCANCB300 CANopen Cable 300m IP20 UL for Industrial Networks

Technical Specifications Breakdown

Key parameters for the TSXCANCB300 are listed below for quick reference:

Industry Applications: Reducing Network Failure Costs

1. Factory Automation Assembly Lines

In high-speed assembly, a single network fault can halt an entire line. The TSXCANCB300's 300-meter length allows flexible routing across large production floors, reducing the need for multiple connection points. This simplifies troubleshooting and cuts cabling costs by up to 30% compared to shorter cables.

2. Material Handling Systems

Conveyor networks in warehouses rely on robust CANopen communication. The IP20 rating ensures protection against dust ingress in controlled indoor environments, preventing corrosion-related failures that cause unplanned maintenance expenses.

3. Packaging Machinery

Packaging lines require precise synchronization. Using a single, certified cable minimizes signal reflection and data errors, reducing scrap rates and improving overall equipment effectiveness (OEE).

Installation & Setup Guidance

• Route the TSXCANCB300 away from high-voltage power cables to avoid electromagnetic interference (EMI).
• Secure the cable with appropriate strain relief at both ends to prevent mechanical stress on connectors.
• Ensure the cable is not bent beyond its minimum bend radius (refer to Schneider guidelines for CANopen cables).
• Use proper termination resistors at both ends of the CANopen bus to maintain signal integrity.

Maintenance & Reliability

• Inspect the cable jacket periodically for cuts or abrasions, especially near connection points.
• Keep the cable within its rated temperature range (standard industrial environment) to prevent insulation degradation.
• Replace any damaged sections immediately to avoid intermittent faults that can be costly to diagnose.

Robust CANopen Connectivity for Cost-Effective Automation

In industrial automation, network reliability directly impacts operational costs. The Schneider TSXCANCB300 CANopen standard cable delivers a 300-meter connection solution designed to minimize downtime and reduce total cost of ownership. By using a single, cable for your CANopen bus, you avoid signal degradation and connection failures that lead to expensive production stoppages.

Compatibility & Integration

This TSXCANCB300 is designed for CANopen bus systems within the Schneider CANopen range. It is compatible with Schneider PLCs, drives, and I/O modules that support CANopen communication. Always verify connector types and pin assignments from the device manuals.

Selection Guide & Purchasing Advice

When selecting a CANopen cable, consider the total network length and environmental conditions. The TSXCANCB300 offers a 300-meter length with UL certification, ensuring compliance with North American safety standards. For cost-conscious projects, this cable provides a balance of reliability and value. Contact AutoDCSTech for lifecycle status and availability before ordering.

Troubleshooting & Common Issues

• No communication: Check for loose connections or damaged cable segments. Verify termination resistors are present.
• Intermittent errors: Inspect for EMI sources near the cable path. Ensure the cable is not coiled tightly.
• Bus off condition: Confirm the cable length does not exceed the maximum allowed for your baud rate (300m is standard for 125 kbps).
