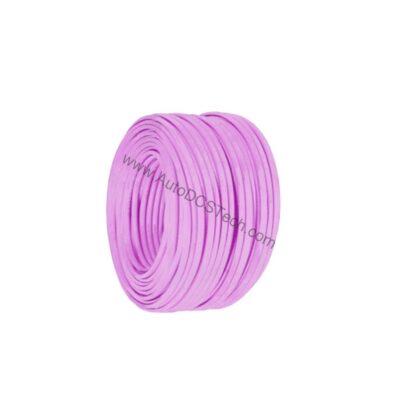

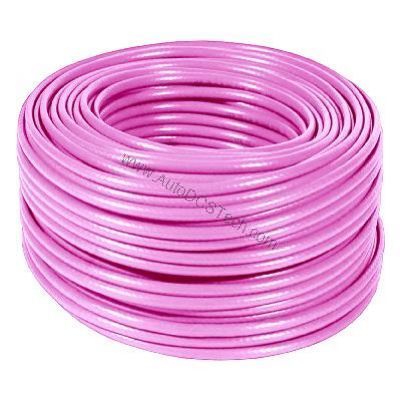

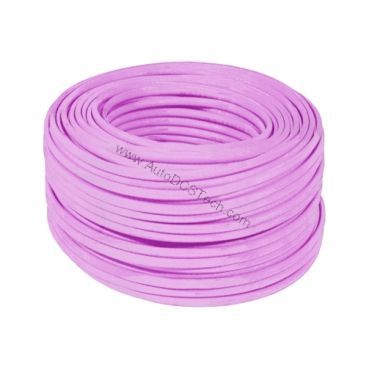

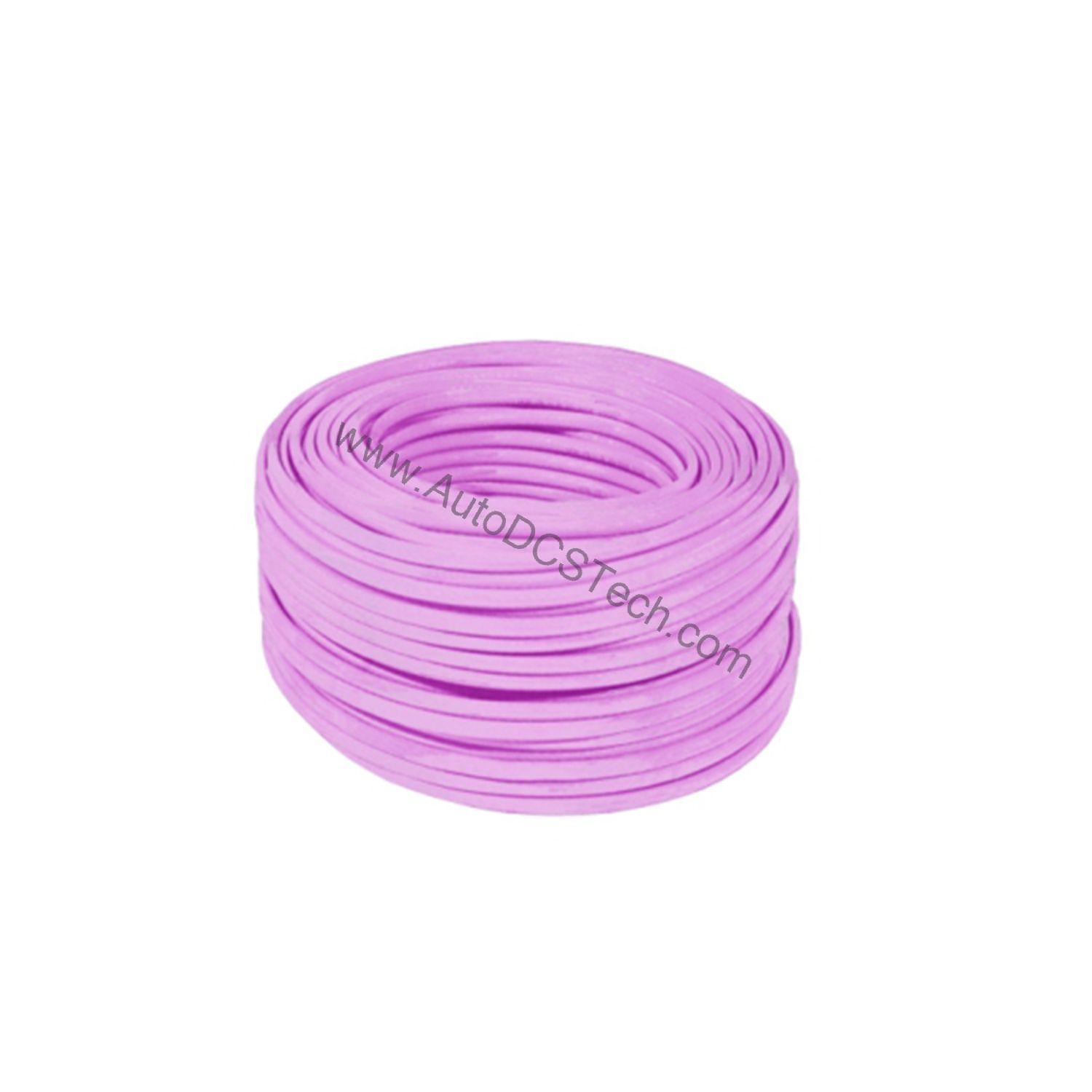

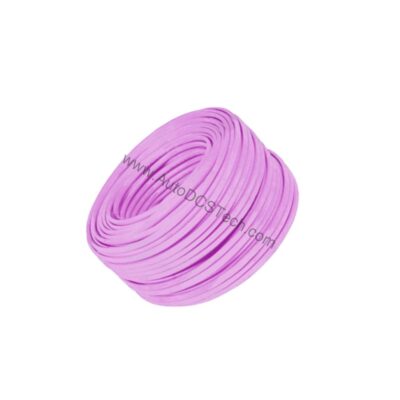

Schneider TSXCANCD100 CANopen Cable 100m for Harsh Environments

Technical Specifications Breakdown

Key parameters for the TSXCANCD100 are listed below for quick reference:

Industry Applications: Solving Real-World Connectivity Challenges

In factory automation, CANopen networks are widely used for connecting sensors, actuators, and motion controllers. Its 100-meter length allows for flexible network topology, reducing the need for repeaters in medium-scale installations. The IP20 rating makes it suitable for use in control cabinets and protected indoor environments where dust and light moisture are not present.

Installation and Setup Guidance

When installing the TSXCANCD100 CANopen cable, ensure that the cable is routed away from high-voltage power lines to avoid electromagnetic interference. Use proper strain relief at connection points to prevent mechanical stress on the cable. Terminate the CANopen bus correctly with the appropriate resistors at both ends to maintain signal quality. For optimal performance, avoid sharp bends and kinks during installation.

Maintenance and Reliability

Periodically inspect the cable for signs of wear, cuts, or abrasion, especially near connection points and areas where the cable is exposed to movement. In harsh environments, additional protective conduits may be used to extend cable life. The CE marking indicates compliance with European health, safety, and environmental standards, ensuring reliable operation in regulated industries.

Reliable CANopen Connectivity for Demanding Industrial Environments

Industrial automation networks require robust and dependable cabling to maintain seamless communication between controllers, drives, and I/O devices. The Schneider TSXCANCD100 CANopen cable is engineered to meet these demands, providing a 100-meter connection solution designed specifically for harsh environments. This cable ensures signal integrity and reduces downtime in applications where standard cables may fail.

Compatibility and Integration

The TSXCANCD100 is part of the Schneider CANopen range and is designed for use with CANopen-compatible devices. Verify device compatibility with your specific controller before installation.

Selection Guide and Purchasing Advice

Selecting the right cable length is critical for network performance. The TSXCANCD100 offers a 100-meter length, suitable for most medium-scale installations. For longer distances, consider using repeaters or fiber optic converters. AutoDCSTech stocks this cable and can provide availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
