6ES7522-1BF00-0AB0 8 Ch 24V DC/2A HF Digital Output Module

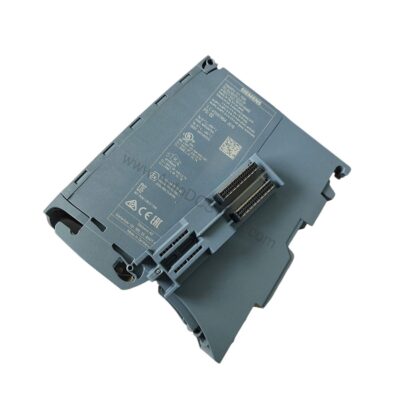

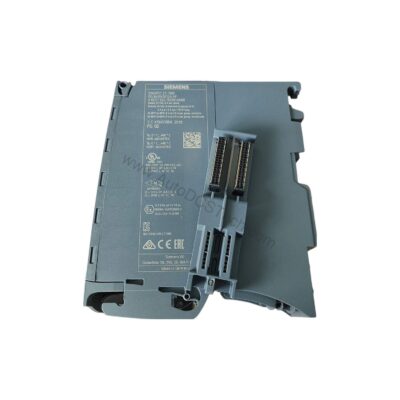

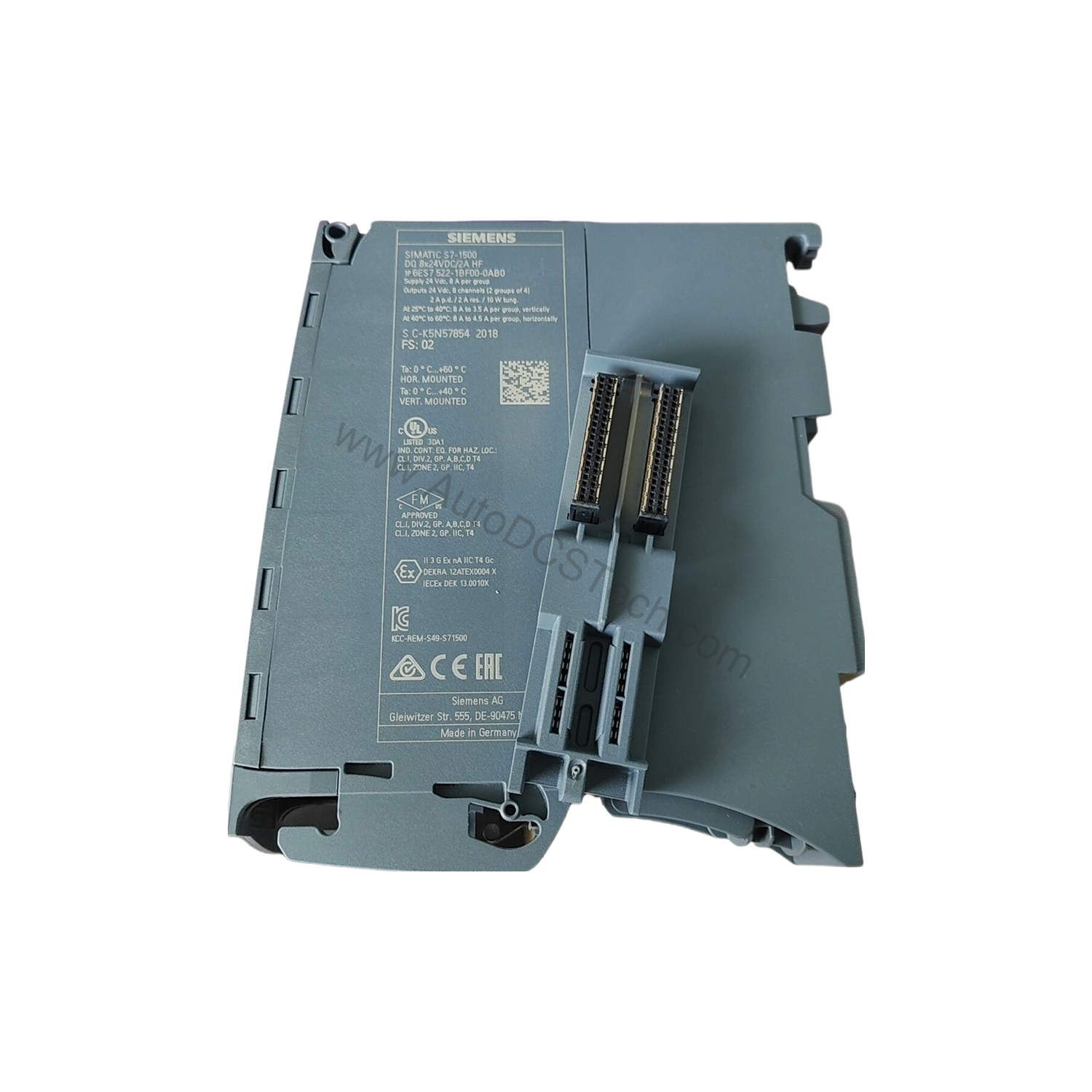

Introduction to the Siemens 6ES7522-1BF00-0AB0 Digital Output Module

When your control system demands precise, high-current switching, the 6ES7522-1BF00-0AB0 from Siemens provides a robust solution. This SIMATIC S7-1500 digital output module offers 8 channels in groups of 8, with a rated output current of 2 A per channel and 8 A per group. It is engineered for industrial environments where reliability and performance are non-negotiable.

With a compact form factor of 35 mm width, 147 mm height, and 129 mm depth, this module fits into your existing S7-1500 rack. The module supports PWM operation on two channels, enabling precise control of pulse-width-modulated signals up to 500 Hz. Additionally, it features diagnostics and substitute value functionality, ensuring your process remains transparent and controllable.

Key Features and Technical Specifications

• 8 digital outputs, transistor type, current-sourcing
• Rated supply voltage 24 V DC, permissible range 19.2 V to 28.8 V
• Output current for signal "1": rated 2 A, max 2.4 A (note derating for PWM)
• Short-circuit protection with typical response threshold of 3 A
• Inductive shutdown voltage limited to -17 V
• PWM output: 2 channels, cycle duration 2 to 100 ms, duty cycle resolution 0.1%
• Switching frequency with resistive load: max 100 Hz (500 Hz with PWM)
• Total current per group: max 8 A; per module: max 16 A
• Diagnostics: supply voltage monitoring, short-circuit, group error
• Isolation tested with 707 V DC (type test)

The module supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d per EN ISO 13849-1:2015 (from FS03). This makes it suitable for safety-related tripping of standard modules, enhancing system safety without dedicated safety hardware.

Applications and Use Cases

Its high output current capability allows direct driving of loads without intermediate relays, simplifying wiring and reducing component count. In packaging machinery, the module's fast switching (typ. 80 µs turn-on) ensures precise timing for synchronized operations.

For processes requiring energy efficiency, the module supports an energy-saving function when configured with an application. This feature reduces power consumption during idle periods, contributing to lower operational costs. Additionally, the PWM capability enables proportional control of heating elements or variable-speed fans, offering flexibility in temperature or flow control loops.

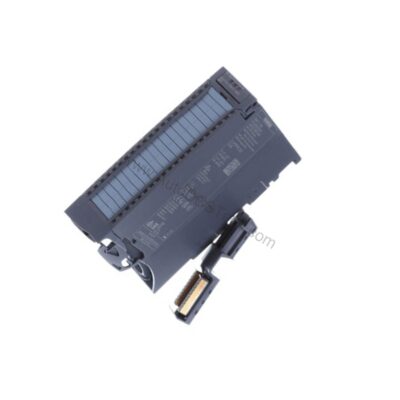

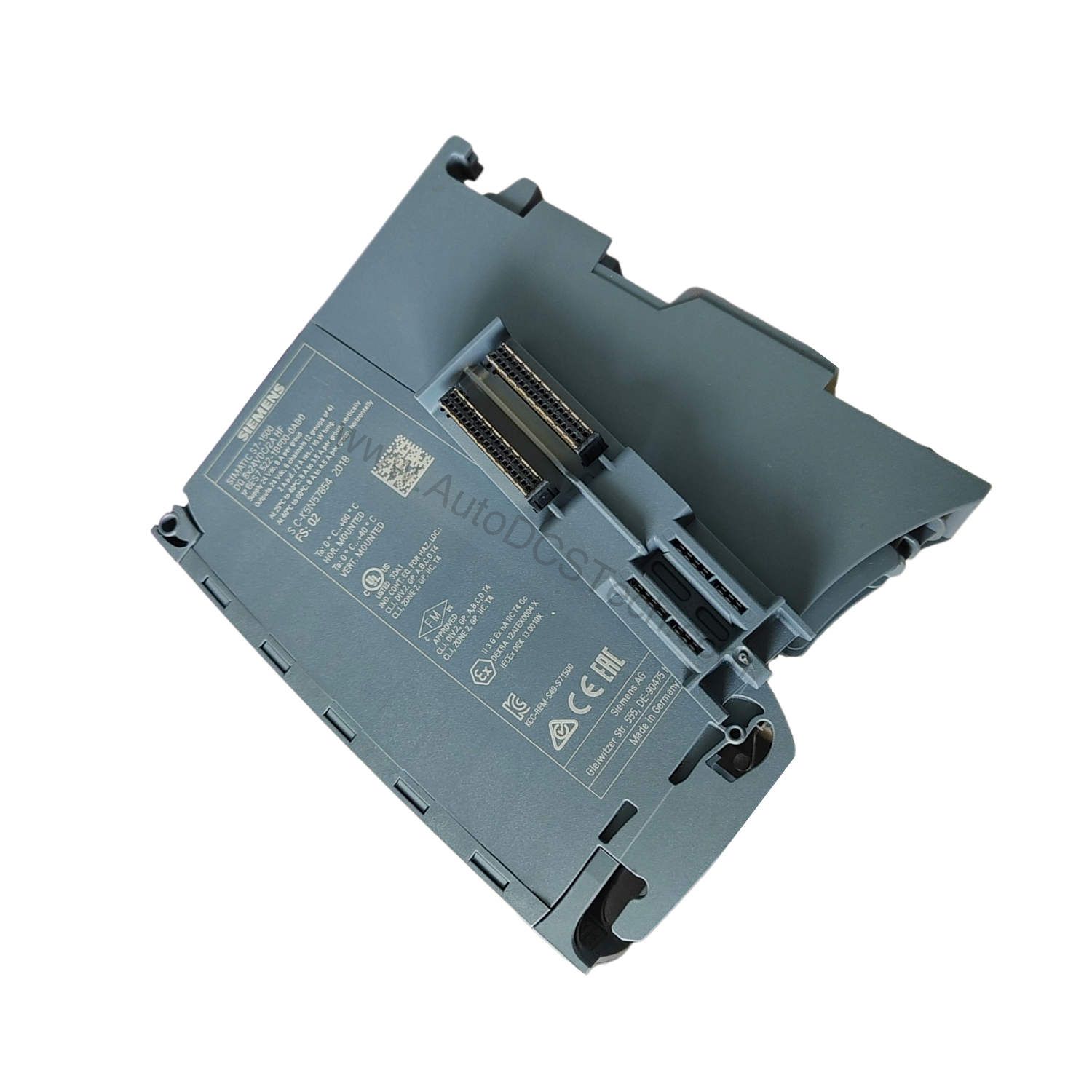

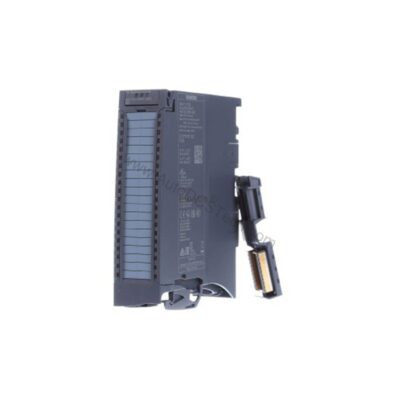

Installation and Setup

Mounting the module is straightforward: simply insert it into the S7-1500 backplane bus. The front connector (screw terminals or push-in) must be ordered separately, ensuring you can choose the wiring method that best suits your installation. Before powering up, verify that the supply voltage is within the 19.2 V to 28.8 V DC range to avoid damage.

When wiring outputs, observe the group current limit of 8 A per group. For PWM operation, note the derating specification to maintain safe thermal performance. Use shielded cables up to 1000 m or unshielded up to 600 m for signal integrity.

Maintenance and Reliability

Regular inspection of the module's LED indicators—RUN (green), ERROR (red), MAINT (yellow), and channel status—can help detect issues early. The module provides diagnostic alarms and maintenance interrupts, allowing predictive maintenance strategies. With a typical power loss of 5.6 W (6.8 W in PWM mode), the module operates efficiently, reducing heat buildup in the control cabinet.

Given its robust design and compliance with safety standards, the module offers long service life. However, always follow the manufacturer's manual for specific maintenance procedures to ensure continued reliability.

Compatibility and Integration

This module is engineered for the SIMATIC S7-1500 system and is configurable with STEP 7 TIA Portal from version V13 SP1. It supports PROFIBUS GSD version V1.0/V5.1 and PROFINET GSD version V2.3, ensuring seamless integration into existing networks. The module also supports I&M data (I&M0 to I&M3) for identification and maintenance information.

For safety-related applications, the module can be used for safety-oriented shutdown of load groups up to SIL2/Cat.3/PL d, making it a versatile choice for both standard and safety-involved control tasks.

Troubleshooting and Common Issues

If an output fails to activate, check the supply voltage and group current. The module's short-circuit protection triggers at a typical threshold of 3 A, so verify that loads do not exceed this limit. For PWM operation, ensure the firmware version is V2.1.0 or higher and that the cycle duration is set between 2 and 100 ms.

Diagnostic LEDs provide immediate feedback: a red channel LED indicates a fault, while the MAINT LED signals a maintenance requirement. If issues persist, consult the official Siemens documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The Siemens 6ES7522-1BF00-0AB0 is available from AutoDCSTech. Please verify current lifecycle status and availability before ordering. Our team is ready to assist with technical inquiries and order processing.
