Product Overview

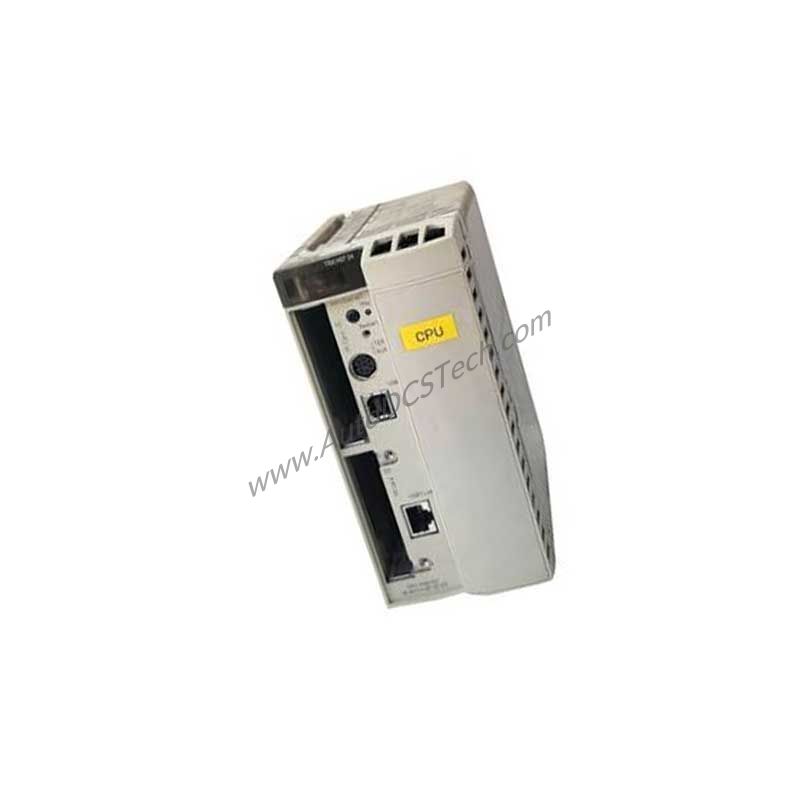

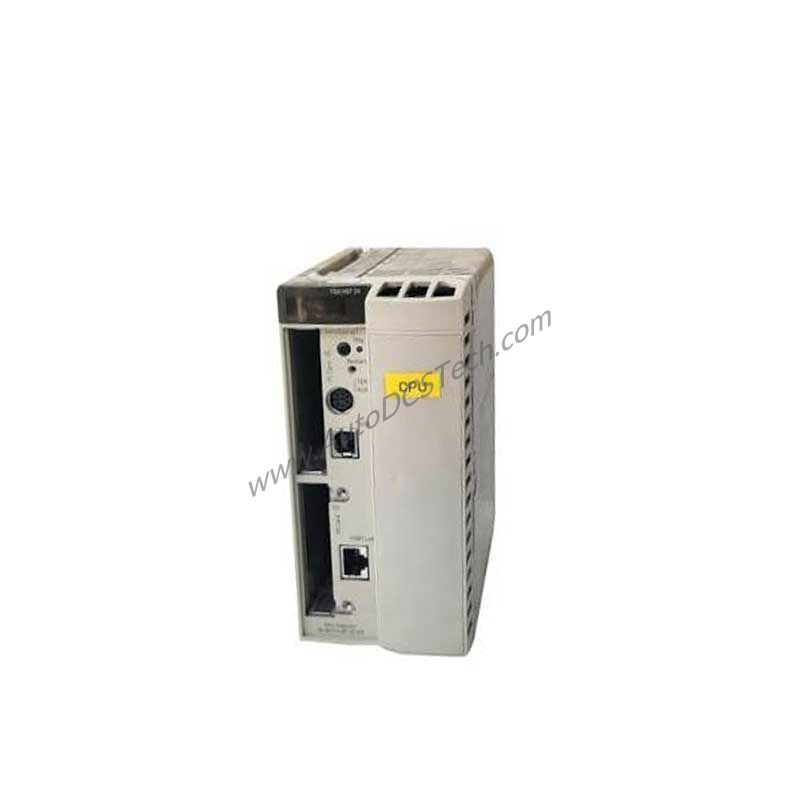

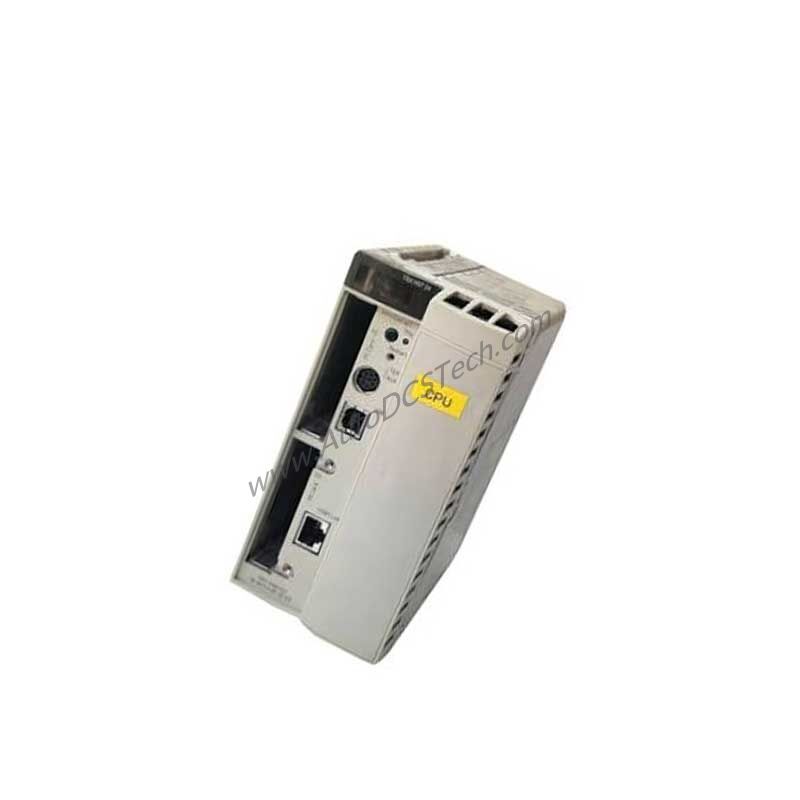

When industrial automation demands a compact yet powerful controller, the Schneider TSXH5724M delivers a cost-effective solution. Part of the TSX Micro PLCs series, this unit supports up to 1024 discrete I/O and 80 analog I/O, reducing the need for multiple controllers and lowering system costs. Its integrated Ethernet TCP/IP RJ45, USB type A (12 Mbit/s), and serial link (female mini DIN RS485 at 19.2 kbit/s) simplify connectivity, minimizing additional hardware expenses.
Technical Specifications Breakdown
- Discrete I/O Processor Capacity: 1024 I/O – handles large field device counts without extra racks, saving on hardware and installation.
- Analog I/O Processor Capacity: 80 I/O – supports precise analog measurements, reducing signal conditioner costs.
- Memory Description: PCMCIA card (16384 kB additional data storage) and internal RAM (768 kB program, 192 kB data with card; 192 kB program and data without) – flexible memory options let you scale cost based on application complexity.
- Execution Time per Instruction: 0.039-0.057 µs Boolean (without PCMCIA card) – fast logic execution minimizes cycle time, boosting throughput and reducing per-unit production cost.
- Integrated Connection Types: Ethernet TCP/IP RJ45, USB port (USB type A 12 Mbit/s), Serial link (female mini DIN RS485 19.2 kbit/s) – versatile communication eliminates need for separate converters, cutting integration cost.
Industry Applications
- Packaging Lines: The TSXH5724M controls multiple conveyor sections and sensors with its 1024 I/O capacity. Fast Boolean execution (0.039 µs) ensures high-speed sorting, reducing downtime and increasing output value.
- Water Treatment: Analog I/O (80 points) and process control channels (≤10, up to 30 simple loops) manage pH and flow loops. The RS485 serial link connects to remote sensors, lowering wiring costs.
- Machine Tools: With Ethernet TCP/IP, the PLC integrates into factory networks for real-time monitoring, reducing maintenance delays and improving overall equipment effectiveness (OEE).
Installation & Setup Guidance
Mount the TSXH5724M in a single rack (6/8/12 slots) using the provided slots. Connect power via the 5 V DC supply (1880 mA current consumption). Use the RJ45 port for Ethernet, USB type A for programming, and the mini DIN RS485 for serial devices. Ensure ambient temperature stays between 32…140 °F (0…60 °C) and relative humidity 10…95% without condensation. The IP20 protection degree suits clean indoor environments.
Maintenance & Reliability
Regularly inspect the PCMCIA card slot and connectors for dust. The protective treatment (TC) guards against corrosion, extending service life. With a system overhead of 1 ms master task, the PLC maintains consistent performance, reducing unplanned downtime and associated costs. Verify firmware updates via the USB port to keep the controller efficient.
Compatibility & Integration
The TSXH5724M integrates with Schneider Modicon Premium automation platforms and works with Unity Pro software. It supports Ethernet TCP/IP (10BASE-T/100BASE-TX) for plant-wide networks, USB for local programming, and RS485 for legacy device integration. This broad compatibility avoids expensive gateway purchases.
Selection Guide & Purchasing Advice
Before ordering, confirm your I/O count (discrete ≤1024, analog ≤80) and memory needs (with or without PCMCIA card). The TSXH5724M offers a cost-efficient upgrade path from older PLCs. SpareTechPLC stocks this model with fast shipping and competitive pricing. Contact us to verify lifecycle status and availability.
Frequently Asked Questions
Q: What is the maximum discrete I/O the TSXH5724M can handle?
A: It supports up to 1024 discrete I/O, reducing the need for multiple controllers and saving hardware costs.
Q: Can I expand memory without a PCMCIA card?
A: Yes, without a card you get 192 kB program and data. Adding a PCMCIA card (16384 kB) expands program to 768 kB and data to 192 kB, offering a cost-effective scalability option.
Q: What communication protocols are integrated?
A: Ethernet TCP/IP RJ45, USB type A (12 Mbit/s), and RS485 (19.2 kbit/s) are built-in, eliminating extra communication module costs.
Q: How fast is Boolean instruction execution?
A: Without PCMCIA card, it runs at 0.039-0.057 µs, enabling fast logic cycles that boost machine throughput and reduce per-part cost.
Q: Is the TSXH5724M suitable for process control?
A: Yes, it offers up to 10 process control channels (30 simple loops) and 80 analog I/O, making it cost-effective for small to medium process applications.
