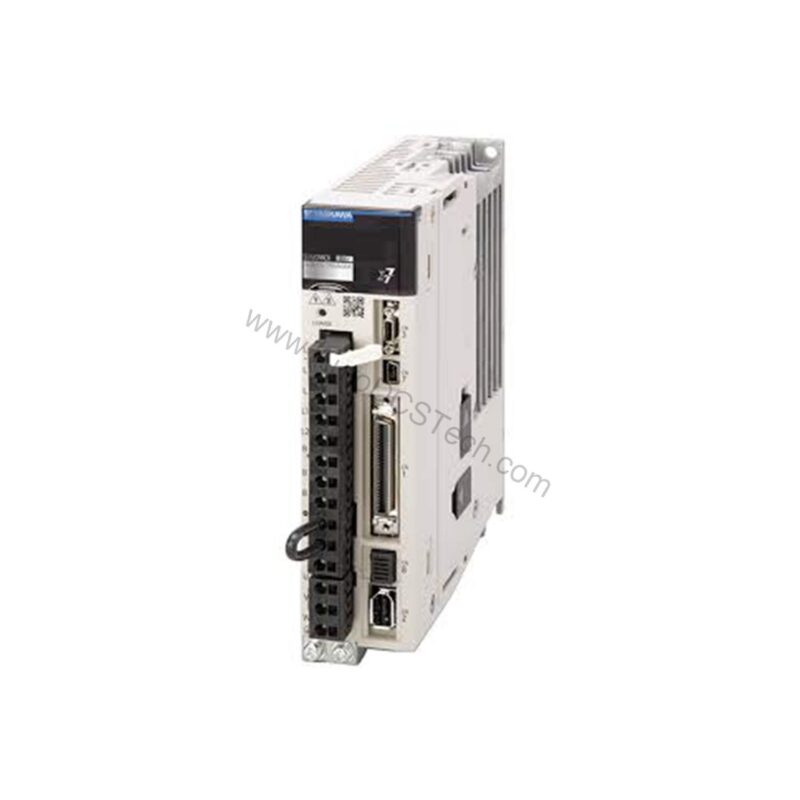

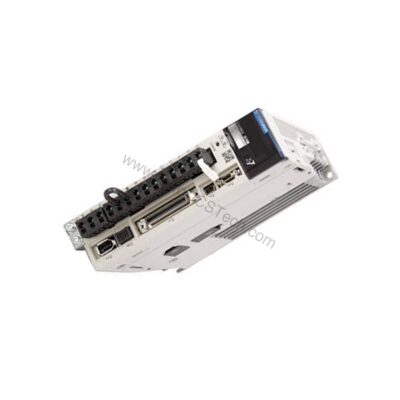

SGD7S-2R8A00A: 0.4 kW Yaskawa Servo Drive
The SGD7S-2R8A00A is the 0.4 kW Yaskawa Servo Drive covered on this page. The attribute that decides whether it fits the existing installation without modification is 0.4 kW.
This configuration's 0.4 kw yaskawa servo drive is the attribute that drives the replacement decision. A variable-speed or soft-start device is specified by the motor it must control and the starting or speed regime it must deliver. 0.4 kw yaskawa servo drive sets the current or power rating, the control method and the enclosure or network option — the things that decide whether the device starts the load without tripping and integrates with the existing control. Verifying 0.4 kW against the motor nameplate and the control architecture prevents a drive that fits the panel but cannot carry the load.
| Feature | Specification |
|---|---|
| Manufacturer | Yaskawa |
| Brand | Yaskawa |
| Part Number | SGD7S-2R8A00A |
| Maximum Applicable Motor Capacity | 0.4 kW |
| Continuous Output Current | 2.8 A (rms) |
| Instantaneous Maximum Output Current | 9.3 A (rms) |
| Main Circuit Power Supply | 200 VAC to 240 VAC, -15% to +10%, 50/60 Hz |
| Control Power Supply | 200 VAC to 240 VAC, -15% to +10%, 50/60 Hz |
| Power Supply Capacity | 1.0 kVA |
| Main Circuit Power Loss | 22.5 W |
| Control Circuit Power Loss | 12 W |
| Minimum Allowable External Resistance | 40 Ω |
Availability & Condition at AutoDCSTech
| Part Number | SGD7S-2R8A00A |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
